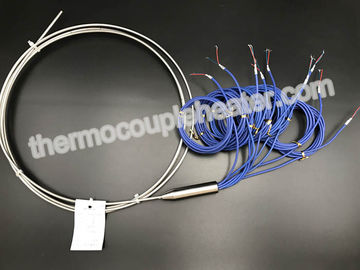

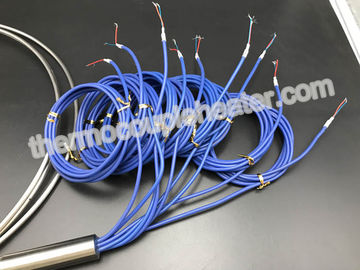

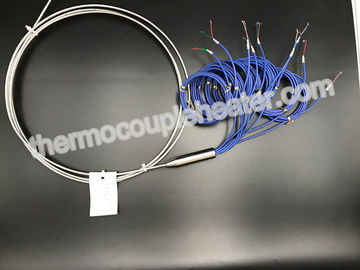

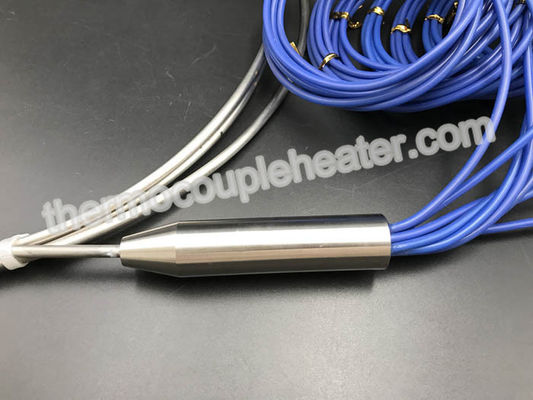

AISI 304 Sheath Type J Multipoint Mineral Insulated Thermocouple Wire Ungrounded

China AISI 304 Sheath Type J Multipoint Mineral Insulated Thermocouple Wire Ungrounded supplier
AISI 304 Sheath Type J Multipoint Mineral Insulated Thermocouple Wire Ungrounded supplier AISI 304 Sheath Type J Multipoint Mineral Insulated Thermocouple Wire Ungrounded supplier AISI 304 Sheath Type J Multipoint Mineral Insulated Thermocouple Wire Ungrounded supplier AISI 304 Sheath Type J Multipoint Mineral Insulated Thermocouple Wire Ungrounded supplier

Large Image :  AISI 304 Sheath Type J Multipoint Mineral Insulated Thermocouple Wire Ungrounded

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO9001/ CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Multipoint Thermocouple Application: Temperature Sensor For Industry
Max.temperature: -200 To 250°C Probe Material: 316SS
High Light:

resistance temperature detecto

,

temperature sensor rtd pt100

AISI304 Sheath Type J Multipoint Mineral Insulated Thermocouple Ungrounded





Product  Description:



Multipoint temperature sensors accurately measure temperatures at various locations along the sensor's length. They are used across a broad range of processes and installations—predominately in applications involving a large or complex process where close temperature control is necessary.Temperature variances exist in all systems, regardless of materials, working fluid or system design. There is not a process that involves heating a particular medium where temperature of that medium is consistent throughout—temperature gradients always exist. Sensing temperature at a single location during a process is acceptable for many applications because temperature gradients are often insignificant. However, there is a need for many applications to monitor temperature in multiple locations to ensure a
safe, accurate and cost efficient process. Installing multiple, independent temperature sensors may be impractical due to cost or space limitations..



Specification:



Product Name Code Type Sheath material Outer dia.(mm) Temperature
Ni Cr - Ni Si KK K SS304 0.5-1.0 400
SS321 1.5-3.2 600
SS316 4.0-8.0 800
  0.5-1.0 500
SS310 1.5-3.2 800
INCL600 4.0-6.4 900
  8.0-12.7 1000
Ni Cr Si - Ni Si NK N SS304 0.5-1.0 400
SS321 1.5-3.2 600
SS316 4.0-8.0 800
  0.5-1.0 500
SS310 1.5-3.2 800
INCL600 4.0-6.4 900
  8.0-12.7 1000
Ni Cr -Konstantan EK E SS304 0.5-1.0 400
SS321 1.5-3.2 500
SS316 4.0-8.0 800
Fe - Konstantan JK J SS304 1 300
SS321 1.5-3.2 500
SS316 4.0-8.0 800
Cu - Konstantan TK T SS304 1 -300
SS321 1.5-3.2 100-200
SS316 4.0-8.0 100-350




Feature:



1)Design and produce according IEC international standard.
2)fast thermal response time, whole armored configuration, anti-vibration, long service life.
3)kinds of junction box to select to adapt different spaces.
4)Diameter of thermal resistance is φ3~φ8mm,diameter for thermocouple is φ0.5~φ8mm.
5)Convenient to fix for kinds of configurations and fixing methods.
6)Use to measure temperature in different places.
7)Temperature converted circuit available to convert figure measured to simulated figure like 4~20mA, 1~5A in order to be transmitted in long distance.

Application:


Ovens & Chillers
Industrial processes
Medical
Pharmaceuticals
Chemical & Petrochemical
R&D

Automotive, engine test cells
Co-Energy, solar, coal-gasification, fossil fuel, & nuclear
Fuel cells
Food & Beverage
