Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001/CE |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7~20 working days after received your payment |
| Payment Terms: | T/T, Western Union,Paypel |
| Supply Ability: | 100000 pcs per Month |
| Product Name: | PT 100 | Probe Size: | OD 5mm X 40mm |
|---|---|---|---|
| Wire Length: | 2 Meter | Insulation: | PVC |
| Accuracy: | Class I | Probe Material: | SS304 |
| Highlight: | resistance temperature detecto,temperature sensor rtd pt100 |
||

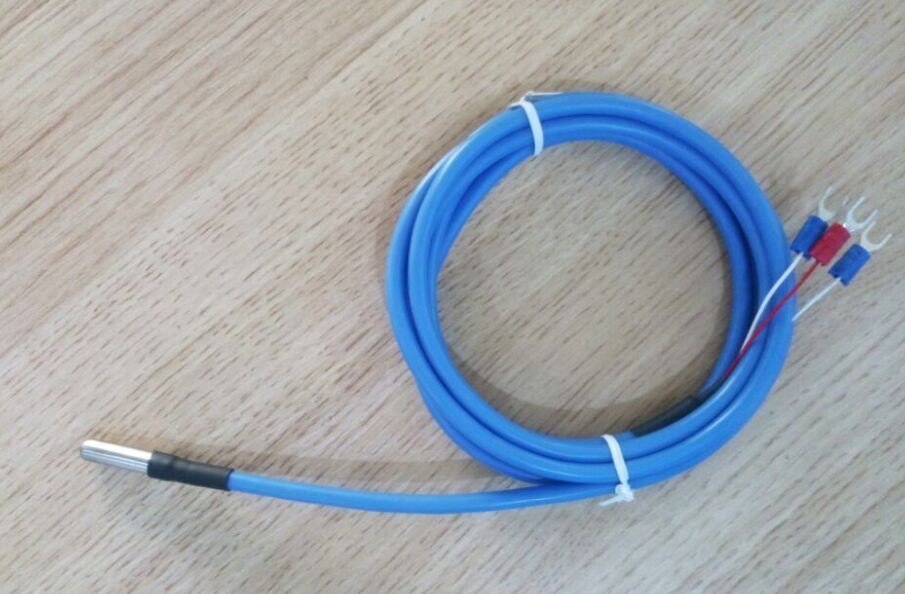

Diameter 5mm SS304 Probe PVC PT 100 RTD for Temperature Sensor
1.Specification
| type | pt100 |
| temperature range | 0-400℃ |
| probe diameter | OD 5mm |
| probe length | 40mm |
| probe material | SS304 |
| wire length | 2000mm |
| wire material | PVC |
2. Feture
| Code | Mark | Use temperature |
Protection tube materials |
Class of accuracy and allowable error |
|
GME |
PT100 |
-200~500°C |
304 321 316L |
Grade A: +/- (0.15+0.002%|t|) |
|
Grade B: +/- (0.3+0.005%|t|) |
|
Pt thermal |
Graduation mark | ±(°C)Et value on various temperature spots | R100/R0 | ||||||||||
| -200 | -100 | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 650 | ||||
| Pt RTD | Grada | Pt10 0 | 0.55 | 0.35 | 0.15 | 0.35 | 0.55 | 0.75 | 0.95 | 1.15 | 1.35 | 1.45 | 1.3850±0.0005 |
| A | Pt10 | ||||||||||||
| Grada | Pt100 | 1.3 | 0.8 | 0.3 | 0.8 | 1.3 | 1.8 | 2.3 | 2.8 | 3.3 | 3.6 | 1.3850±0.0012 | |
| B | Pt10 | ||||||||||||
| Cu RTD | Cu50 | 1.5 | 0.9 | 0.3 | 0.9 | 1.5 | 2.1 | ———— | ———— | —— | ———— | 1.428±0.002 | |
| Cu100 | |||||||||||||
| Sensor Type | RTD Pt100 element |
| PPCK: RTD Pt1000 element | |
| Probe Diameter | 1mm-6mm |
| Detector Elements | Simplex (1 channel) |
| Duplex (2 channels) | |
| Probe Length (mm) | As required to suit your application |
| Wiring Configuration | 2-wire |
| 3-wire | |
| 4-wire (Simplex only) | |
| Grade of Element | B (Accuracy: ±0.30°C at 0°C, ±0.80°C at 100°C) |
| A (Accuracy: ±0.15°C at 0°C, ±0.35°C at 100°C) | |
| Cable Length (mm) | As required to suit your application |
| Extension Cable | PVC Insulated (+105°C), 2, 3, 4-wire |
| PFA Insulated (+250°C), 2, 3, 4, 6-wire | |
| Fibreglass/SSB (+400°C), 2, 3, 4-wire | |
| Optional RTD Connector | Miniature RTD Plug |
| Miniature 3-Pin RTD Plug | |
| Standard RTD Plug | |
| Standard 3-Pin RTD Plug | |
| Optional 316 Stainless Steel Compression Fittings | To suit probe Ø: 1mm, 1.5mm, 2mm, 3.0mm, 4.0mm, 4.5mm, 6.0mm |
3. Application:
4. Transportation
