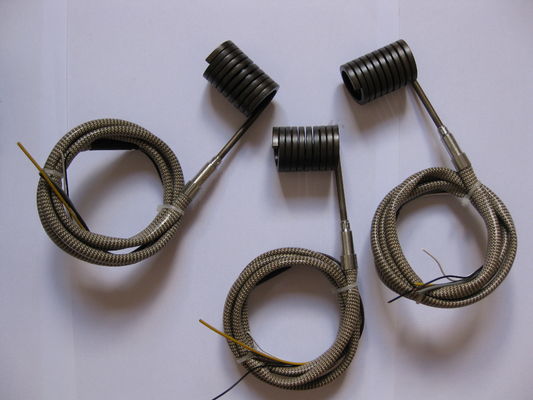

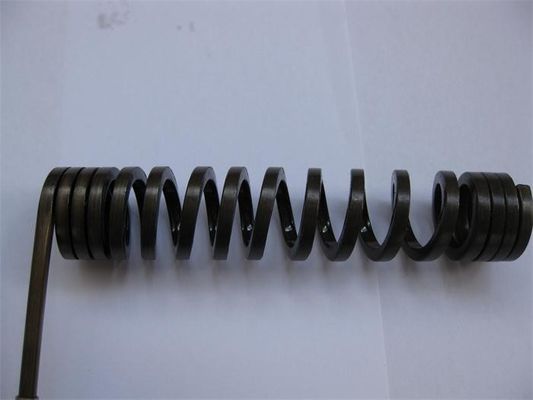

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater

Large Image : Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater

Product Details:

Place of Origin:	Wenzhou, CHINA
Certification:	ISO9001

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Packaging Details:	Standard Export Packing
Delivery Time:	7-15 working days
Payment Terms:	L/C, T/T, Western Union
Supply Ability:	10,000 pcs per month

Contact Now

Detailed Product Description

Power(W):	Customizable	Material:	Stainless Steel
Certification:	CE(LVD EMC) RoHS ETL	Power Source:	Electric
Voltage:	Customizable	Usage:	Hot Runner
Highlight:	electric resistance heater , Electric Coil Heaters

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater

Name of product	Electric D-nail/Enail Heating unit
Inner Diameter of coiled heater	8/10/14/16/18/20mm ( + 0.05mm)
Coil Height	13.3mm/12.7mm ( + 0.05mm)
Flat Coil	ID9mm,OD26mm ID10mm,OD27mm ( + 0.05mm)
Voltage	12v;24v;120v;220v
Wattage	100w;120w;150w;250w
Cross-section	3x3mm;2.2x4.2mm
Thermocouple	K or J type
Connector plug	Xlr female and male 5 pin
Sleeve material	kevlar/fiberglass(Fashional)
Sleeve color	red,black,yellow,green,blue,and black with yellow strip
PID Temperature controller	L125xW90xH35mm

Product Description

Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.

Typical Applications :Plastic Die Applications;Blow Molding Machine ; Extrusion ;Hot Runner Systems ;Injection Molding ; Thermoforming and etc.

Specification:

Name of product	Hot runner heater
Inner Diameter of coiled heater	8-38mm( + 0.05mm)
Coil style Length	40-200mm (+ 0.5mm)
staright style length	200-3000mm (+ 0.5mm)
Cross-section	Round Dia.3mm;3.3mm;3.5mm Square: 3x3mm;3.3x3.3mm,4x4mm, Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm
Tube Material	SUS304/SUS/310S/Incoloy800
Tube color	sliver or annealed black
Insulation	High pure Mgo
Inner heating element	NiCr8020
Voltage	12v;24v;110v;220v;240v;380v
Wattage	200-3000w( 6.5W/CM2 ) + 5% tolerance
Max. Temperature:	650°C
Built-in thermocouple	with or without J /K TC(Available)
Delivery Time	3-5 days(10-500pcs) 7 days(more than 500pcs)

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater 0

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater 1

Hot Runner Spring Coil Heating Elements Industrail Square Nozzle Heater 2
