Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, S | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | Connection: | Thread |
| Highlight: | temperature sensor rtd,temperature sensor rtd pt100 |
||

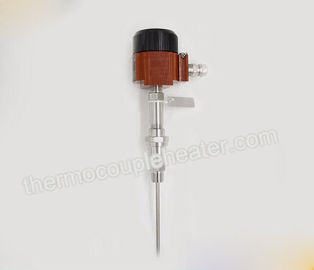

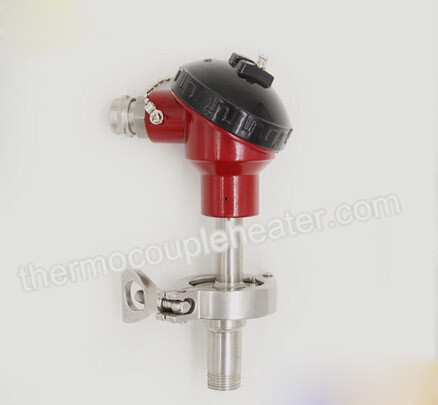

Assembly K E J B R S type resistance temperature device thermocouple with noble metal
Description:
1) The electrodes of assembly thermocouple are made of different materials. The temperature difference between measuring end and reference end results in pyroelectric potential, then display meter indicates the corresponding temperature to the pyroelectric potential.
2) thermocouple electrodes are made of two different materials temperature diffference between measuring end and reference end results in pyroelectric potential ,then display meter indicates the corresponding temperature to the pyroelectric potential .
It is based on that temperature change of meterial results in change of its resistance.when resistance value changes,the working instrument will display relevant temperature value.
Specification:
|
Conductir material
|
Type
|
Graduation
|
Spec. of protection tube(mm)
|
Use temperature
|
|||
|
Total Lenght
|
Length in fluid
|
external diameter of ceramic tube
|
Material of protection tube
|
||||
|
PtRh10-Pt
|
WRP
|
S
|
300
350
400
450
550
650
900
1150
1250
|
150
200
250
300
400
500
750
1000
1100
|
φ16
φ25
|
High Al content tube
|
0-1300
|
|
PtRh30-Ptrh6
|
WRR
|
B
|
Corundum tube
|
0-1600
|
|||
|
PtRh13-pT
|
WRQ
|
R
|
φ16
φ20
|
High Al content tube
|
0-1200
|
||
|
Mini PtRh10-Pt
|
WRP-100
|
S
|
252
|
252
|
φ7
|
High Al content tube
|
0-1200
|
1. Easy assembly and convenient for replacement
2. Spring thermal element with good shock-proof performance
3. Wide measuring range
4. High mechanical strength, good pressure-resistant performance
Various explosion-proof types, good explosion-
proof performance
Spring thermal element with good shock-proof
performance
Wide measuring range
High mechanical strength, good pressure-resistant
performance
Explosion-proof thermocouple has a junction box of enough
strength with gaps inside it. All spare parts which might produce
spark, electric arc, and dangerous high temperature are sealed
in the junction box. When explosion within the box happens, fireMain
Application:
It is usually connected with display meter, recording meter and computer, etc. to directly measure temperature of liquid, vapor, gas and solid surface ranging from 0°C to 1300°C during various production process.
Payment Terms and Shipping:
1) plastic bag + carton for High-temperature s type thermocouple
2) wooden box for High-temperature s type thermocouple
