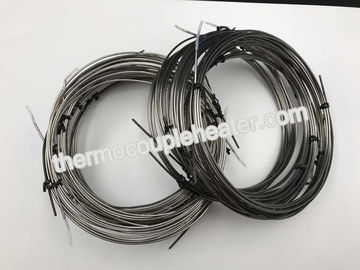

Mineral Insulated Thermocouple RTD Probes With Bare Leads , SS / Inconel600 sheath

China Mineral Insulated Thermocouple RTD Probes With Bare Leads , SS / Inconel600 sheath supplier
Mineral Insulated Thermocouple RTD Probes With Bare Leads , SS / Inconel600 sheath supplier Mineral Insulated Thermocouple RTD Probes With Bare Leads , SS / Inconel600 sheath supplier Mineral Insulated Thermocouple RTD Probes With Bare Leads , SS / Inconel600 sheath supplier

Large Image :  Mineral Insulated Thermocouple RTD Probes With Bare Leads , SS / Inconel600 sheath

Product Details:

Place of Origin: China
Certification: ISO9001/ CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Mineral Insulated Metal Sheath Thermocouple Probes With Bare Leads Application: Temperature Sensor For Industry
Calibration: Type K Accuracy: Class I
Max.temperature: -200C To +1000C Sheath Material: 304SS ,310SS,316SS,Inconel 600
High Light:

temperature sensor rtd

,

temperature sensor rtd pt100



Mineral Insulated Thermocouple RTD Probes With Bare Leads , SS / Inconel600 sheath



Product  Description:


Mineral Insulated Thermocouples are manufactured from mineral oxide insulated metal sheathed cable. Mineral Insulated Cable consists of thermocouple wire insulated by compacted magnesium oxide surrounded by a metal sheath. Mineral insulated thermocouples are more durable, faster responding, longer lasting and capable for use at higher temperatures than ceramic insulator or fiberglass insulated thermocouples because the wires are encased and protected by compacted insulation and the metal sheath. Maximum operating temperatures of the thermocouples are determined by the wire calibration type and the sheath alloy selected.

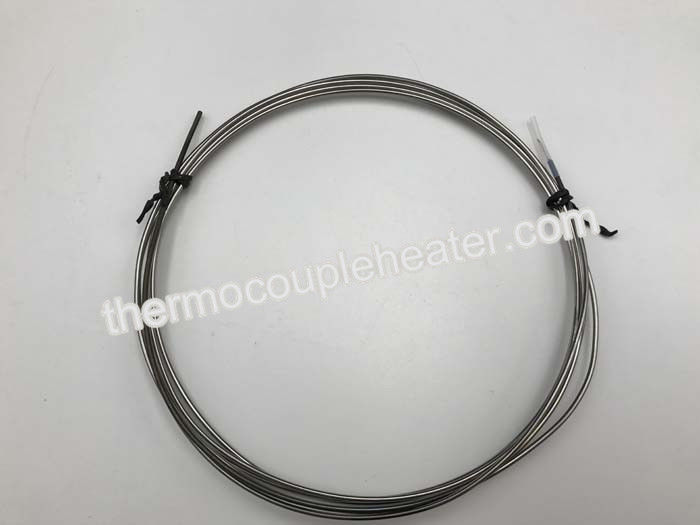

Mineral Insulated Thermocouple RTD Probes With Bare Leads , SS / Inconel600 sheath



Specification:



Outside Diameter

0.02”,0.04”,0.063”,0.125”,0.188”,0.25”,0.315”,0.375”

Calibration

J, K, T , E , N



Sheath Material

304 Stainless Steel

316 Stainless Steel

310 Stainless Steel

Inconel 600

Junction

Ungrounded , Grounded, Exposed



Termination type

3/8” Split Bare Ends.

3” Split & Color Coded leads

Standard Male Plug (425F)

Standard Female Jack(425F)

Mini Male Plug(425F)

Mini Female Jack(425F)

Hi Temp Male Plug(800F)

Hi Temp Female Jack(800F)





Feature:


1. Customized diameter, sheath lengths and lead length
2. Stainless steel braided or hose protection
3. K, J, T, E and N calibrations
4. Grounded, ungrounded and exposed junctions
5. Flexible extensions

6. Flat and drill point
7. Epoxy sealed cold ends
8. Miner coated and stainless steel sheaths
9. Straight, 45° bend or 90° bend
10. 12 mm and 15 mm locking bayonet caps


Application:


Bare Lead Mineral Insulated Thermocouple Probes can be used as replacement
Probes for plant operation or as an OEM component to build temperature sensors.
1. Food processing equipment
2. De-icing
3. Plating baths
4. Industrial processing
5. Medical equipment
6. Pipe tracing control
7. Industrial heat treating
8. Packaging equipment
9. Liquid temperature measurement
10. Refrigerator temperature control
11. Oven temperature control
