Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, S | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | Connection: | Thread |
| High Light: | temperature sensor rtd,resistance temperature detecto |
||

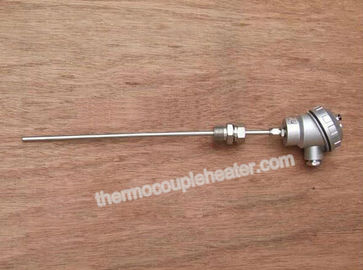

High Accuracy High Temperature Thermocouple Rtd S / B / R Type For Boiler
Description:
1) Thermocouples are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
2) A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
Specification:
100% Brand New and High Quality
Thermocouple Type:K Type (ungrounded)
Operating Temperature: 0 – 1100 °C
Probe Material: ceramic protection pipe
Diameter :0.5mm
Probe Length (L):500mm
Easy assembly and convenient for replacement;
Spring thermal element with good shock-proof performance;
Wide mesuring range (0~1600 degree Celsius);
High mechanical strength and good pressure-resistant performance
| Model | Graduation mark |
temperature range |
Mounting& Fixing |
| WRK | K | 0-1300°C |
1.without Fixing Device 2.Threaded Connector 3.Movable Flange 4.Fixed Flange 5.Elbow Tube Connection 6.Threaded Cone Connection 7.Straight Tube Connection 8.Fixed Threaded Tube Connection 9.Movable Threaded Tube Connection |
| WRE | E | 0-800°C | |
| WRJ | J | 0-800°C | |
| WRT | T | -40-350°C | |
| WRS | S | 0-1600°C | |
| WRR | R | 0-1600°C | |
| WRB | B | 600-1700°C | |
| WRM | N |
0-1200°C |
Application:
1) Thermocouples are widely used in science and industry;
applications include temperature measurement for kilns,
gas turbine exhaust,
diesel engines, and other industrial processes.
2) Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
