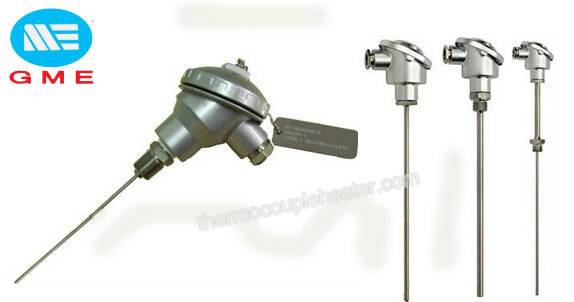

Stainless Steel High Temperature Electric Thermocouple K Type With Process Connection

China Stainless Steel High Temperature Electric Thermocouple K Type With Process Connection supplier
Stainless Steel High Temperature Electric Thermocouple K Type With Process Connection supplier Stainless Steel High Temperature Electric Thermocouple K Type With Process Connection supplier

Large Image :  Stainless Steel High Temperature Electric Thermocouple K Type With Process Connection

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Packaging Details: cartons, pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Power Source: Electric Temperature Range: -200~650℃
Voltage: 12-480V Probe Material: Stainless Steel Or Nickel
Style: K, J, S Pairs Quantity Of Element: Simplex/duplex
Heating Element: Nichrome Resistance Mounting: Thread/flange/none
Function: Temperature Sensor Feature: Economical
Types Of Terminal Box: Anti-spray/water-proof Connection: Thread
High Light:

temperature sensor rtd

,

resistance temperature detecto



Stainless Steel High Temperature Electric Thermocouple K Type With Process Connection





Description:



1) A Thermocouple is a sensor used to measure temperature. Thermocouples consist of two wire legs made from different metals. The wires legs are welded together at one end, creating a junction. This junction is where the temperature is measured. When the junction experiences a change in temperature, a voltage is created. The voltage can then be interpreted using thermocouple reference tables to calculate the temperature.



2) The simplest thermocouple is made using a bare wire configuration , that is two thermoelements joined at one end and directly exposed to the atmosphere of the operating environment.The operating environment can be an oxidizing, reducing or inert atmosphere and constrains on the use of thermoelements in some atmospheres can exist because of lack of compatibility between the materials the thermoelements are made of and the gases. For instance W/W-Re thermocouples cannot be used in oxidizing atmosphere because, above 600°C, tungsten reacts easily with oxygen producing volatile oxides: the thermoelements can be rapidly damaged and fail.



Specification:



1.length 200/500/800/1000mm

2.ungrounded probe,

3.type pt100 ,

4.sheath 304 SS

5.sheath diameter 6mm

6.No fixing device



1.Type:PT100 DIN Standard Class A and B

2.Head :Water proof and explosion-proof

3.Material:Head -cast Aluminum /Sheath:SS304,SS316,1Cr18Ni9Ti

4.Sheath dimaeter:φ5.0mm,12,16,20 can customize

5.Connection Type:1/2BSP,1/2NPT,G1/2,G3/4,1/2 and so on



Thermocouple Category

Product

Model

Graduation Mark

Thermometric

Scope

Specification

Thermal Response

Time T (S)

Dia

(mm)

Protection Tube Material
Single Pt Rh30-Pt Rh6 JYB-120-T B 0~1800 Φ16 Corundum Material <150
JYB-121-T Φ25 <360
Double Pt Rh 30-Pt Rh6 JYB-120-T Φ16 <150
JYB-121-T Φ25 <360
single Pt Rh 10-Pt JYS-120-T S 0~1600 Φ16 High-Alumina Material <150
JYS-121-T Φ25 <360
Double Pt Rh10-Pt JYS-120-T Φ16 <150
JYS-121-T Φ25 <360
Single Ni Cr-Ni Si JYK-122-T K 0~1100 Φ16 High-Alumina Material <240
JYK-123-T 0~1200 Φ20
Double Ni Cr-Ni Si JYK-121-T 0~1100
Single Pt Rh30-Pt Rh6 JYB-130-T B 0~1800 Φ16 Corundum Material <150
JYB-131-T Φ25 <360
Double Pt Rh30-Pt Rh6 JYB-130-T Φ16 <150
JYB-130-T Φ25 <360
Single Pt Rh 10-Pt JYS-130-T S 0~1600 Φ16 High-Alumina Material <150
JYS-131-T Φ25 <360
Double Pt Rh 10-Pt JYS-130-T Φ16 <150
JYS-131-T Φ25 <360
Single Ni Cr-Ni Si JYK-133-T K 0~1200 Φ20 High-Alumina Material <240
Double Ni Cr-Ni Si JYK-133-T 0~1100



Stainless Steel High Temperature Electric Thermocouple K Type With Process Connection

Application:



As sensor for temperature measuring and regulation, industrial-purpose thermocouple is usually connected with display meter and other meters to directly measure temperature of liquid, vapor, gas and solid surface ranging from 40°C to 1700°C.



A. Widely Used In Science and Industry



B. Temperature Measurement for Kilns



C. Gas Turbine Exhaust Application



D. Used For Diesel Engines and Other Industrial Processes
