Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Customable | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | ||
| High Light: | resistance temperature detecto,temperature sensor rtd pt100 |
||
J / T / E / R / N K Type Duplex Thermocouple Rtd Temperature Sensor High Temperature
Description:
1) Screw type thermocouple is usually connected with display meter, recording meter and computer, etc. to directly measure temperature of liquid, vapor, gas and solid surface ranging from 0°C to 1300°C during various production
2) A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.
3) Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.
Specification:
1. Industrial K Type Thermocouple
2.Diameter:6/8/10/12/16/20mm
3.Temperature:0-1000C
4.Length:100/200/300/500/600/800/1000mm

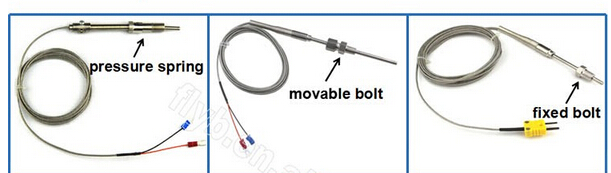

5.Connection: Thread or Flange
6.Material:SS304 Or SS316 Or SS321 Or 2020 Or GH3039
7.We can also make according to client’s requirements.

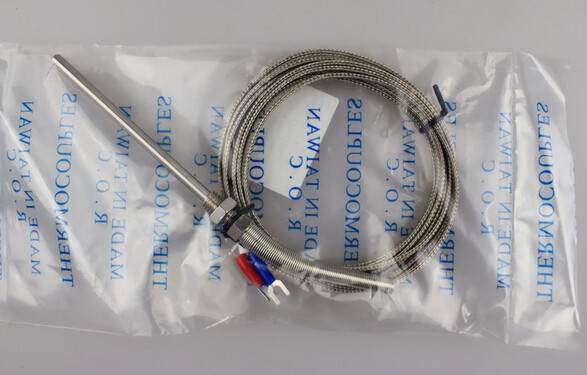

| Name | GME Screw thermocouple/thermocouple sensor |
| Type | k |
| diameter | 5mm |
| length | 100mm |
| Thread | 1/2NPT |
| cable lenght | 1m |
| Accuracy class | class B |
| Conductor material | Metal shielded wire |
| Reaction time | 0.5s |
| temperature range | -20-1800C |
| Probe material | SS304 |
Application:
Plastic injection molding machinery
Food processing equipment
Engine and turbine exhaust gas
Semiconductor processing
Heat treating and metals processing
Medical equipment
Aerospace industries
Packaging equipment
Test stands
Payment Terms and Shipping:
