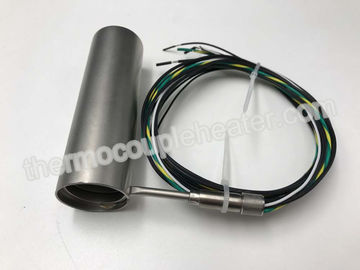

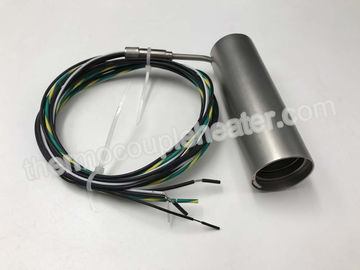

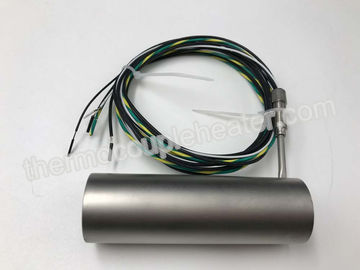

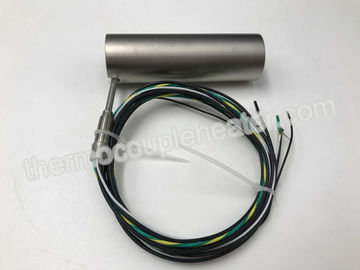

Armored stainless steel heating coil With Type J Thermocouple , 230V 500W

Armored stainless steel heating coil With Type J Thermocouple , 230V 500W

1. Coil Heater Description

2. Electric Resistance Heater Characteristics

•  Standard sizes available with various cross section
• Various Watt Density options available.
• Precision fit on Hot Runner Nozzles & Manifolds
• Highly Non-corrosive
• Robust Design with Choice of Terminal Exits
• Designed for even heat profile
• Maximum heat transfer due to more contact area
• Advanced Thermal Engineering
• Available with built in Thermocouple
• CE Certified

3.  Electric Resistance Heater Application

• Hot metal forming dies and punches Sealing and cutting bars
• Medical, analytical and scientific instruments
• Restaurant and food processing equipment
• Cast-in heaters
• Laminating and printing presses
• Air heating
• Textile manufacturing
• Heating in a vacuum environment​
• Plastic injection molding nozzles
• Semiconductor manufacturing and wafer processing

4.  Electric Resistance Heater Parameter.

Standard Configuration

Material :304

Unheated length(L1):45mm

Connector(cold side)(D1xU): Ф3.5x40mm

Power lines,grounding wire length(L):1000mm

Surface treatment:sandblasting;
