Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | Coil Heater |
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | negotiation |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 20,000pcs per month |
| Payment Terms: | D/P, L/C, Western Union, T/T, Paypal |
| Product Name: | Coil Heater | Application: | Hot Runner |
|---|---|---|---|
| Insulated Material: | Comressed MgO | Power(W): | 200-3000W |
| Watt Density: | 6.5 W / CM 2 | Warranty: | 1 Year |
| Moistureproof: | IP 65 | Lead Wire Length: | 1000 Mm Or Customized |
| High Light: | electric resistance heater,Electric Coil Heaters |
||

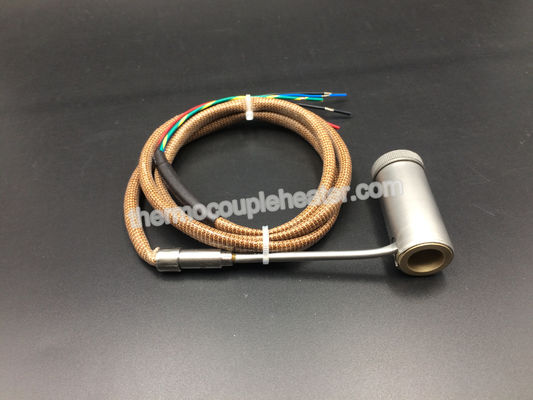

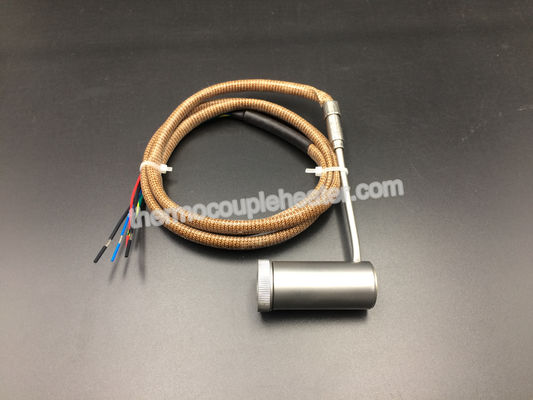

Armored Nozzle Coil Heaters Brass Sheath Inside For Hot Runner Systems
1. Brief Introduction
The Armored Nozzle Coil Heater are constructed with a Stainless Steel inner sleeve and a Stainless Steel outer sleeve. The heater is tightly sandwiched between these sleeves eliminating the heat transfer problems associated with other dual sleeved designs. The materials used direct the heat inward toward the nozzle resulting in a very efficient heater with even heat distribution. The tightly toleranced I.D allows a slip fit with no clamping required
2. Characteristics
3. Parameter.
Datasheet of hot runner coil heater:
Sheath of coil heater: SUS304
Insulation of coil heater: Compacted magnesium Oxide
Heating conductor: NiCr8020
Voltage: 24V to 415V
Temperature resistance: Maxi 800 cent degree
Thermocouple: K type, J type (optional)
Leads: Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand)
Outlet types of hot runner coil heater:
1. Radial type
2. Tangential type
3. Azial type
4. Application
Injection & Blow Moulding Machine Nozzles.
PET prefrom & Thin wall container Moulds.
Hot Runner Manifolds.
Hot Runner Nozzles & Bushings.
Hot runner Injection moulds
