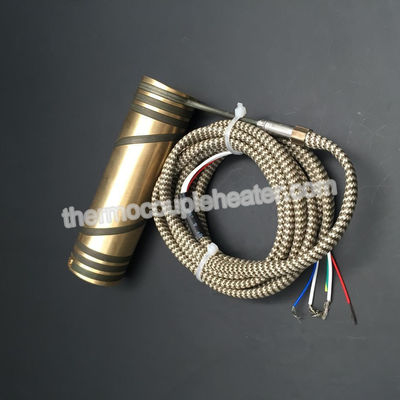

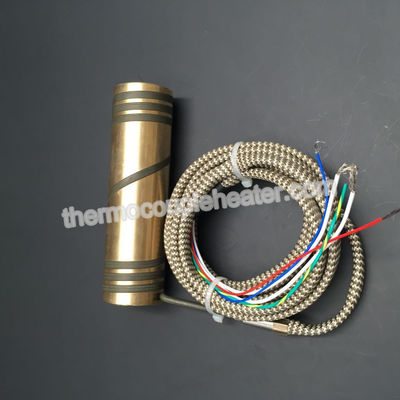

Press In Brass Electric Resistance Heater For Hot Runner Injection Mold

Press In Brass Electric Resistance Heater For Hot Runner Injection Mold

    • Press In Brass Electric Resistance Heater For Hot Runner Injection Mold
    • Press In Brass Electric Resistance Heater For Hot Runner Injection Mold
  • Press In Brass Electric Resistance Heater For Hot Runner Injection Mold

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pcs
    Price: Negotiation
    Packaging Details: Standard Export Packing
    Delivery Time: 7-15 working days after received your payment
    Payment Terms: T/T or western Union or Paypal
    Supply Ability: 10,000 pcs per month
    Contact Now
    Detailed Product Description
    Wire Insulation: Etc. Name: Brass Tube Coil Heater
    Protection Sleeves: Fiberglass, Silicon, Braided Metal Screen Etc Application: Hot Runner System
    Material: Stainless Steel 304 Etc Lead Wire Length: 1000mm Or Customize
    Warranty: 1 Year Insulated Material: Comressed MgO
    Moistureproof: IP65 Cross Section: 2.2 X 4.2mm,3.2 X 1.8mm,OD 1.8mm Etc
    Thermocouple: Type J , K Tube Length: 200 - 2500 Mm
    Form: Straight Or Coiled Type: Tangential, Radial Exits, Axial
    Wire: Braided Copper Tinned Conductor Etc
    Highlight:

    electric resistance heater

    ,

    Electric Coil Heaters



    Press In Brass Electric Resistance Heater For Hot Runner Injection Mold





    1. Introduction



    GME is one of the reputed manufacturers of Pressed in Brass Coil Heater all over the globe. Manufactured using superior quality material, these products are suitable for eliminating known problems that are associated with the casting process in spectrometry industries. Our range is capable of functioning 8% faster than cast in brass heaters. The component integrated in the brass for the heater enables in facilitating exact repeatability of heat profile. Furthermore, even when the coil heaters are exposed with molten brass, there would be no destruction of the thermocouple junction. Our products are available in flexible designs like internal, external “wound in” or external slotted type J or type K thermocouple.



    2. Characteristics



    1). Optimal heat distribution
    2). Tight fit on nozzle
    3). Superior heat transfer
    4). Up to 1200°F at inner brass casing
    5). Highly non-corrosive
    6). Built-in Type J or Type K thermocouple



    3. Parameter



    Spring coil heater (H series) 3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7
    Φ3.0 Φ4.0 Φ5.0 3.5x3.5
    4.0x4.0
    5.0x5.0
    Voltage 220V,230V,240V
    Power tolerance 115W-200W +/-10%
    Power tolerance 201W-2000W +5%-10%
    Out jacket length 30mm~280mm
    Diameter of the inner sleeve/wrapped diameter 10mm~42mm
    Unheating length 45mm
    Max power density 9W/cm²
    Heating Length tolerance +/-0.05mm
    Unheating length tolerance +/-2.5%
    Tolerance ID d ≤20mm Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance ID d 20mm~30mm Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance ID d ≥30mm Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm
    Tolerance cross section +/-0.15mm +/-0.20mm
    Thermocouple K,J,E None
    Material 304,321,316
    Maximum working temperature 650℃
    Die electrical strength 800V 1000V





    4. Application



    Hot runner heater is the important component of hot runner system, which is made of special technque and high quality material, ensuring its efficient work in the close space, even when the heating jacket temperature is 700 degrees Celsius. Complying with the metric system and the international standard, all models are on the basis of VDE0721 quality inspection requirements, so as to meet most factories and hot runner machines.
    we provide several kinds of heaters, such as pipe heater, press in brass heater, coil heater and so on.



    packaging machinery

    medical equipment

    casting process

    other electric heating industry

    hot runner system

    plastic industry
