Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed

Home ProductsThermocouple Components

Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed

China Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed supplier
Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed supplier Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed supplier

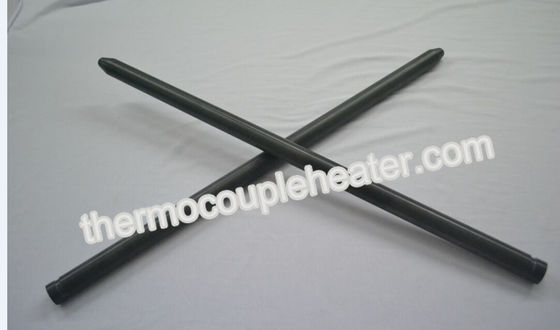

Large Image :  Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE, RoHs
Model Number: Diameter 28*16

Payment & Shipping Terms:

Minimum Order Quantity: 1
Price: 1-100
Packaging Details: carton
Delivery Time: 5-7days
Payment Terms: L/C, T/T, Western Union,Paypal
Supply Ability: 1000/month
Verified Supplier

China

  • Product Details
Detailed Product Description
Material: Silicon Nitride Shape: Pipe
Color: Gray/black Thickness: 6mm
Density: 2.5-2.6g/cm3 Strength: 80-86HAR
Application: Industrial Area Usage: Protect Thermocouple
Working Temperature: 1400C
High Light:

thermocouple parts and components

,

thermocouple assemblies



Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed



Description:



1) Silicon nitride thermocouple protection tube is formed by CIP , then machined to accurate dimension, and put it into Reaction-Sintered furnace for sintering.



2) Silicon nitride thermocouple protection tube have the characteristics of high and equal density, good dimensional accuracy , etc. Silicon nitride is especially suitable for thermocouple protective cannula measuring temperature of molten aluminum for its anti-fusion.Our company can do any types as customers’ required.



Main Features:



1.Corrosion resistance
Outstanding corrosion resistance to molten aluminum alloys and flux contamination free.

2.Oxidation resistance
Oxidation rarely accurs at operating temperature(up to 800 C), which allows hi-cera to maintain stable performance for a long service life.

3.Thermal shock resistance
Superior thermal shock resistance allows hi-cera protection tubes to be inserted in molten aluminum directly with simple preheating.

4.Mechanical strength
The highest strength among ceramics allows a thin wall thickness.

5.Wear resistance
Excellent wear resistance gives degassing rotor shafts a long service life at a high speed revolution.

6.Acid ressitance
Exceptional acid resistance against acids such as hydrochloric acid and sulfuric acid permits removal of sticking matter on the surface with such acids.



Specification:



Property of Silicon nitride products
Material Unit Si3N4
Volume density g/cm 3 2.77
Young's modulus Gpa 240
Flexural strength MPa 186.4
Porosity % 12
Thermal expansion coefficient a×10-6 2.51
Fracture toughness (Mpa*m -1 ) 2.8
Thermal Conductivity W/mk

15

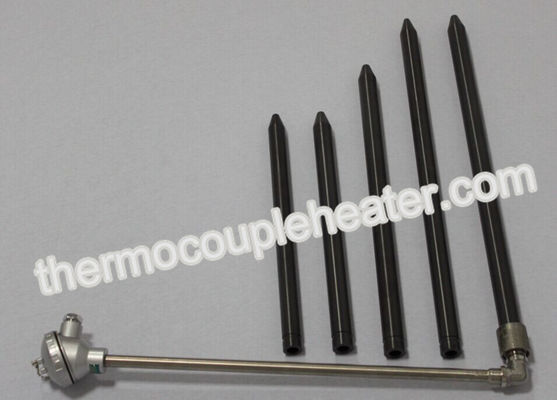

Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed



Application



Used to protect the temperature-measuring components,

make the components isolate from the outside substance,

reduce and prevent the corrosion, oxidation and mechanical damage to the components during measuring.



Shipping:



1, by air

2, by express

3, by sea



Non Ferrous Silicon Nitride Thermocouple Components Protection Sleeve One End Closed
