Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | CE & ISO |
Minimum Order Quantity: | 10 pcs |
---|---|
Price: | Negotiation |
Packaging Details: | Standard Export Packing |
Delivery Time: | 7-15 working days after received your payment |
Payment Terms: | T/T or western Union or Paypal |
Supply Ability: | 10,000 pcs per month |
Name: | Coil Heater In Straight | Application: | Hot Runner System |
---|---|---|---|
Material: | Stainless Steel 304 | Lead Wire Length: | 1000mm Or Customize |
Warranty: | 1 Year | Insulated Material: | MgO |
Moistureproof: | IP65 | Cross Section: | 3.2 X 1.8mm |
Form: | Straight | ||
Highlight: | electric resistance heater,Electric Coil Heaters |

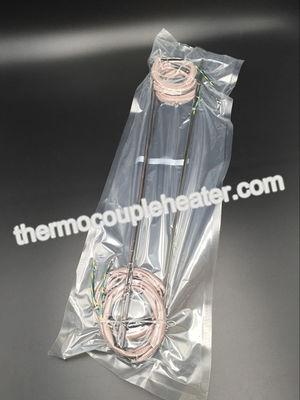

Material 304 Hot Runner Spring Coil Heater In Straight , 3.2 x 1.8mm
1. Introduction
Wuhan Global Metal hot runner coil heater in straight use Germany heater wire, United States high-purity magnesium oxide material, and strict process technology. There are various cross section and size for choice, such as square, round and flat, provide high-performance electric heater for heating hot runner mold and other fields.
Heater maximum temperature up to 650 ºC, the integration of temperature thermocouple for the precise temperature control, can provide K, J, E thermocouple, blasting and blackening surface treatment, also can provide bright surface.
2. Characteristics
1) Very good performance of the heating uniformity in the heating area.
2) The inside insulated cover, same as the German GC.
3) The moisture-proof is IP65
4) High insulation (more than 500M ohm) and high pressure resistance (1000V above), can meet special requirement if customers need.
3. Application
hot runner system
plastic industry
packaging machinery
medical equipment
casting process
other electric heating industry
4. Parameter
Spring coil heater (H series) | 3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7 |
Φ3.0 | Φ4.0 | Φ5.0 | 3.5x3.5 4.0x4.0 |
5.0x5.0 |
Voltage | 220V,230V,240V | |||||
Power tolerance 115W-200W | +/-10% | |||||
Power tolerance 201W-2000W | +5%-10% | |||||
Out jacket length | 30mm~280mm | |||||
Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | |||||
Unheating length | 45mm | |||||
Max power density | 9W/cm² | |||||
Heating Length tolerance | +/-0.05mm | |||||
Unheating length tolerance | +/-2.5% | |||||
Tolerance ID d ≤20mm | Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm |
|||||
Tolerance ID d 20mm~30mm | Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm |
|||||
Tolerance ID d ≥30mm | Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm |
|||||
Tolerance cross section | +/-0.15mm | +/-0.20mm | ||||
Thermocouple | K,J,E | None | ||||
Material | 304,321,316 | |||||
Maximum working temperature | 650℃ | |||||
Die electrical strength | 800V | 1000V |
