J Type Thermocouple Brass Coil Heaters For Heating Engineering , Wafer Processing

China J Type Thermocouple Brass Coil Heaters For Heating Engineering , Wafer Processing supplier
J Type Thermocouple Brass Coil Heaters For Heating Engineering , Wafer Processing supplier J Type Thermocouple Brass Coil Heaters For Heating Engineering , Wafer Processing supplier

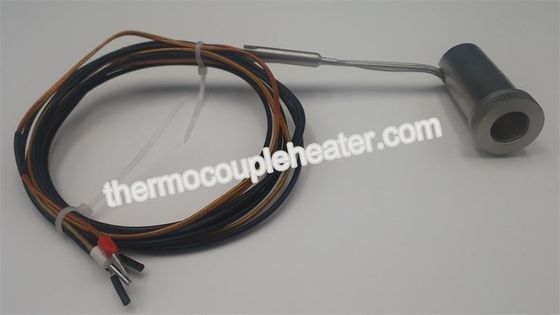

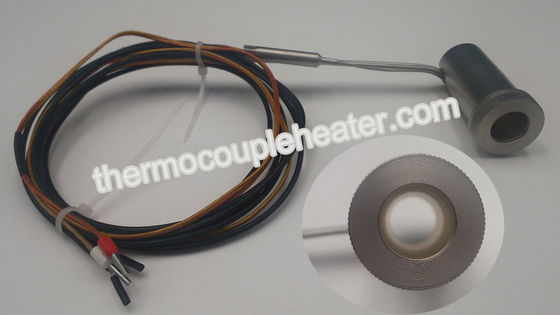

Large Image :  J Type Thermocouple Brass Coil Heaters For Heating Engineering , Wafer Processing

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Packaging Details: cartons, pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
Style: Straight Or Coil Lead Wire: 1000mm
Coiling Scheme: Tangential, Radial Exits, Axial Material: Brass And Stainless Steel
High Light:

electric resistance heater

,

Electric Coil Heaters

Brass Coil Heater Copper Heater with J type thermocouple in stainless steel sleeve



Description:



1) Spring heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.



2) Spring heater is also known as high performance tubular heaters or cable heaters.



3) Spring heater can be produced with or without built in thermocouples.



4) Spring heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields



Specification:



1) Specializes in manufacturing heater,thermocouple and equipment more than 15 year as well as export the relevant component more than 11 years

2) CE-marked products conform to PICC regulations

3) ISO 9001:2008-certified factory quipped with heater lines

4) Up to 200000 units turned out each month

5) Custom orders welcome

6) R&D team updates every month with 10 new items

7) Sample take up to 3 days,but can be finished with one day in ugent cases

8) GME heater can replace Hotset,GC-Heat,Kit,Euroheat,ROTFIL ect

9) USA high purityMgo,Germany Nici8020 alloy wire,Germany fiberglass protection



Name of product Hot runner heater
Inner Diameter of coiled heater 8-38mm( + 0.05mm)
Coil style Length 40-200mm (+ 0.5mm)
staright style length 200-3000mm (+ 0.5mm)
Cross-section

Round Dia.3mm;3.3mm;3.5mm

Square: 3x3mm;3.3x3.3mm,4x4mm,

Rectangular:4.2x2.2mm,4x2mm;1.3x2.2mm

Tube Material SUS304/SUS/310S/Incoloy800
Tube color sliver or annealed black
Insulation High pure Mgo
Inner heating element NiCr8020
Voltage 12v;24v;110v;220v;240v;380v
Wattage 200-3000w( 6.5W/CM2 ) + 5% tolerance
Max. Temperature: 650°C
Built-in thermocouple with or without J /K TC(Available)
Delivery Time

3-5 days(10-500pcs)

7 days(more than 500pcs)









Application:





Plastic injection molding nozzles

Semiconductor manufacturing and wafer processing

Hot metal forming dies and punches Sealing and cutting bars

Medical, analytical and scientific instruments

Restaurant and food processing equipment

Cast-in heaters

Laminating and printing presses

Air heating

Textile manufacturing

Heating in a vacuum environment



How to order Hot Runner Coil and Cable Heaters



1. voltage and power

2. Inner dimeter

3. coil height

4. thermocouple type if have

5. lead wire length and insulation material

6. qty
