Place of Origin: | China |
Brand Name: | GME |
Certification: | CE |
Minimum Order Quantity: | 50pcs |
---|---|
Packaging Details: | cartons, pallet |
Delivery Time: | 7~10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000 pcs per Month |
Power Source: | Electric | Dimension: | Customized |
---|---|---|---|
Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
Cross Section: | 2.2*4.2mm | Style: | Straight Or Coil |
Lead Wire: | Copper, , Fiberglass Silicon | Coiling Scheme: | Tangential, Radial Exits, Axial |
Material: | Brass And Stainless Steel | ||
Highlight: | electric resistance heater,Electric Coil Heaters |

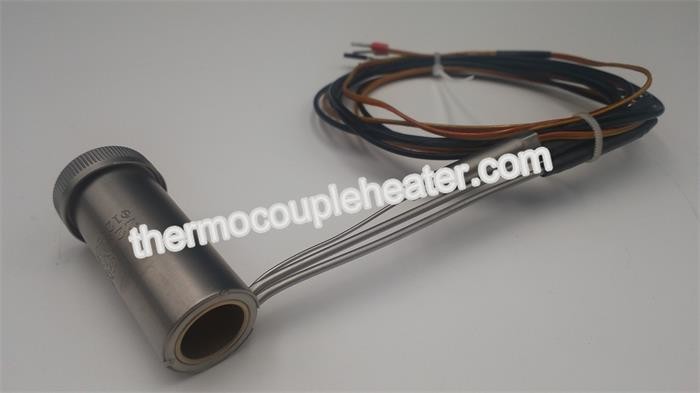

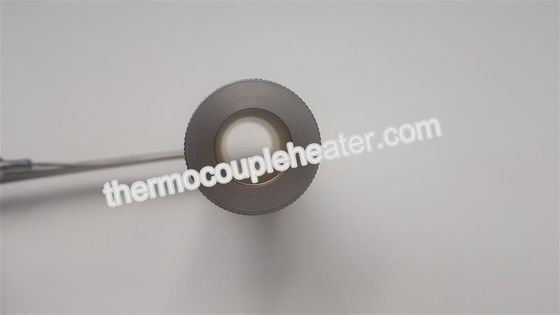

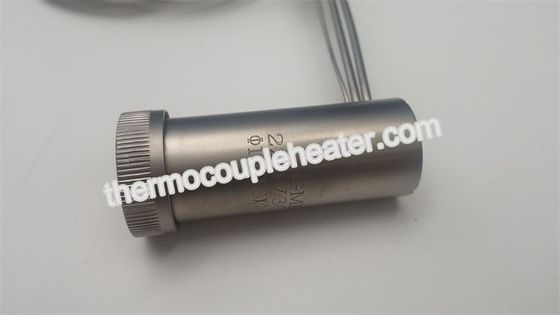

Hot runner pressed in brass coil heater in plastic injection mould for hot runner system
Description:
1) Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology .
2) The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.
3) Our coil heater made of Germany heater wire ,the united states high-purity magnesium oxide materials and strict process technology,there are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds.
4) Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface .
Specification:
STANDARD CONFIGURATION
MATERIAL: 304 and brass
UNHEATED LENGTH :45mm
POWDER LINES ,GROUNDING WIRES LENGTH :1000mm
PROFECT WITH SLEEVE : 1.SILICON GLASS FIBER (WHITE ,BLACK,ORANGE ,GREEN AND OTHER )
Thermocouple :with thermocuple channel and themocouple hole
SURFACE TREATMENT : grit blast
SECTION :
SECTION :2.2*4.2mm,2*4mm,3.3*3.3mm,3*3mm,2.4*1.6mm,2.1*1.5mm,
3.5*3.5mm,4.5*2.7mm,4*4mm,5*5mm (square)
Φ1.8mm Φ2mm Φ2.5mm (round)
Name of product | Electric nail dab |
Inner Diameter of coiled heater | 10/14/16/18/20mm |
Application | Heating |
Place of Origin | China (Mainland) |
Height | 12.7/13.3mm |
Warranty Period |
1 year |
Application:
1) Heating nozzle & bushings
2) Die Casting Nozzles
3) Hot runner tools in the plastic industry
