High Performance Class 1 Thermocouple RTD For PT100 Temperature Sensor , ISO9001/CE

1.Introduction

Thermocouple RTD is a kind of general purpose temperature sensor , which is designed to satisfy all applications mainly in plastic and rubber industry, where metal sheathed thermocouples are required. A wide range of accessories or components can be individually selected for the appropriate application. With the flexibility of assorted diameters and manually adjustable immersion lengths .

2. Specifications

Usage: Temperature Sensor

Theory: Resistance Sensor

Output: Digital Sensor

Resistance: 5K,10K,15K,20K

Accuracy: 1%

Response Time: 5S

B25/50 Value: 3380,3950,3470

Shell Tpye: Copper

Shell Size: 5x25mm

Connector: XH-2Y

Wire Type: UL2651 26AWG

Wire Length: 460mm

Temperature Range: -30~105 celsius

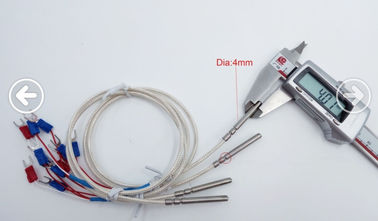

3. Product details

4.Quality assurance:

1. Wide operating temperature range, good stability and reliability.

2. Easy to installation and manipulation as the sealing can be done according to environment and conditions there it is applied by customer.

3. Accurate testing can reflect temperature change precisely.

5. Application

1. Plastics and rubber industry;
2. Dies for extrusion profiles;
3. Direct installation into the process;
4. Packaging industry;
5. Compression platens;
