Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | ||
| Highlight: | temperature sensor rtd,temperature sensor rtd pt100 |
||

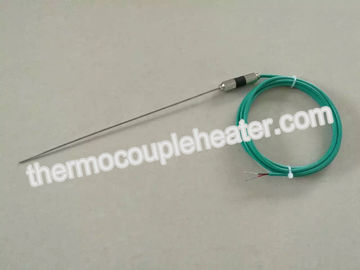

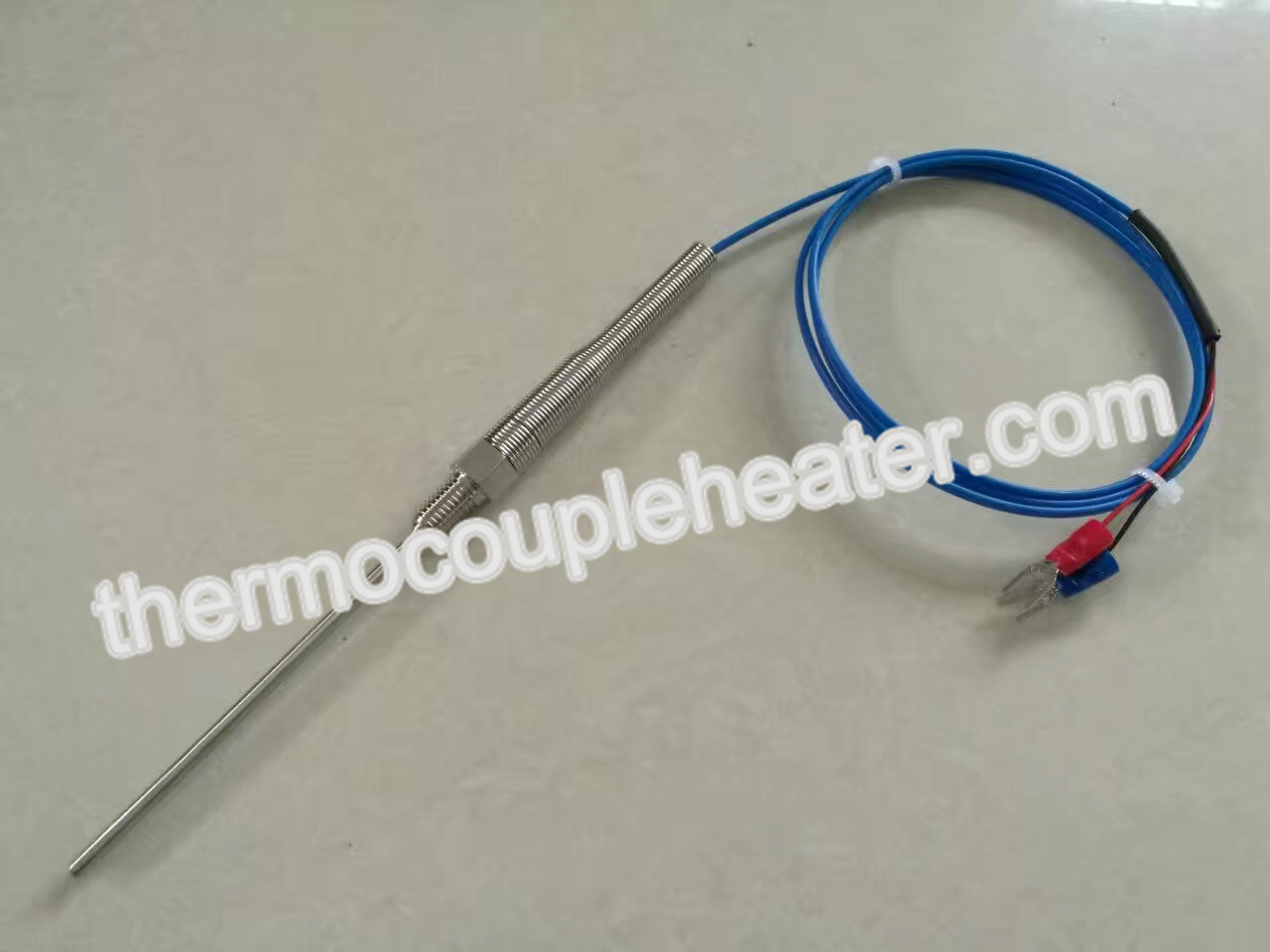

GME K type thermocouple simple probe temperature sensor in needle with J, K type
Description:
1) Armored thermocouple temperature sensors are widley applied to aviation, nuclear energy, petrochemical, metallurgy, machinery, electric power industries and technical area, especially suitable for narrow and curved installation space or applications that is micromation or fast response is required.
2)Material and diameter of sheath will affect temperature range of the thermocouple, i.e. range of thermocouple will be increased with diameter for same sheath material; however, under condition of same diameter, range of therocouple will be determined by material of the sheath;
3) Fast response: smaller the product diameter is, faster the temperature will be changed;
4) Various installation options will meet requirements of different installation conditions;
5) Product with good mechanic strength and air tightness, could be applied under harsh conditions including vibration, low and high operating temperature;
6) With high accuracy, large range (-200℃~+1300℃, could be made with -270℃~2800℃ for special conditions) and long service life;
Specification:
Probe diameter:3mm,5mm,6MM, 8mm
Probe Length (customer self determination)
Lead wire length (customer self determination)
1) Packing: we have standing packing : 1) each one put in a plastic bag.also each one use bubble paper separation 2) follow you request use carton box/mail box/wooden case etc separation it bottom or side have mark and bar code sign it. 3)inner box and outer box six side put Styrofoam safe packing/shipment, we can accept Broken test. or per your request packing it.
2) sample time:2-7days stock goods within 1 days shipping
mass goods time:10-15days.
big order depend on quantity.
| Probe Type | K |
| Maximum Temperature (F) | 2012 |
| Probe Style | Pipe Fitting Probe |
| Material | Inconel 600 |
| Connection/Mount Type | Mini Connector |
| Probe Sheath Diameter (Decimal Inch) | 0.1880 |
| Probe Sheath Material | Inconel 600 |
| Cable Length (Feet) | 6 |
| Junction | Grounded |
| Response Time (seconds) | 9.000 |
| Minimum Temperature (F) | 0 |
Application:
Plastic injection molding machinery;
Food processing equipment;
Engine and turbine exhaust gas;
Semiconductor processing;
Heating treating and metals processing;
Medical equipment;
Aerospace industries;
Packaging equipment;
Test standards.
Payment Terms and Shipping:
1.Loading Port: Shanghai China
2. Samples Leading Time: 5-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
