Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001/CE |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 7~20 working days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 100000 pcs per Month |
| Product Name: | Metric Type J Hot Runner Thermocouple With Fiberglass Leads | Application: | Temperature Sensor For Plastic Industry |
|---|---|---|---|
| Calibration: | Type K J | Accuracy: | Class I |
| Max.temperature: | 500F Or 260C | Probe Diameter: | 1.0mm, 1.5mm, Etc |
| High Light: | temperature sensor rtd,temperature sensor rtd pt100 |
||

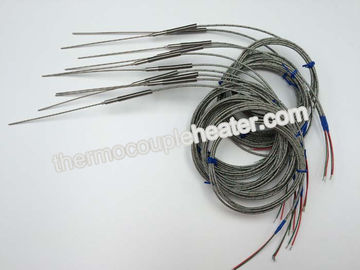

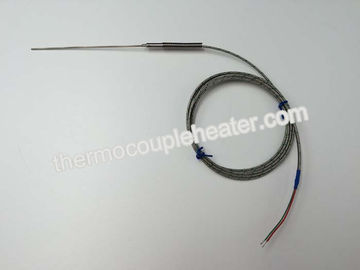

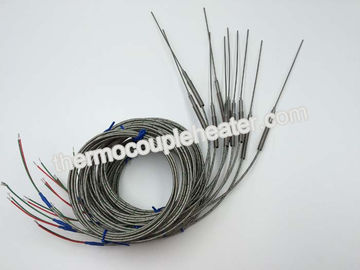

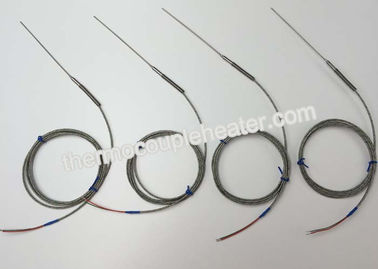

1.5MM Type K J Hot Runner Ungrounded Thermocouple With Fiberglass Leads And Metal Transition
Product Description:
A thermocouple is a sensor for measuring temperature. It consists of two dissimilar metals, joined together at one end, which produce a small unique voltage at a given temperature. This voltage is measured and interpreted by a thermocouple thermometer.
Thermocouples are available in different combinations of metals or calibrations. The four most common calibrations are J, K, T and E. Each calibration has a different temperature range and environment, although the maximum temperature varies with the diameter of the wire used in the thermocouple.
The hot runner thermocouples are custom-designed to suit all applications where sheathed thermocouples are required. An extensive range of elements, transition sleeves and process connections can be individually selected for the appropriate application. With the flexibility and small diameters in which they are available, hot runner thermocouples can be used in locations that are not easily accessible.
Thanks to their unique design, the hot runner thermocouples are especially suited for applications where the metal sensor tip is fitted directly into a drilled hole or press-fitted into a grooved channel along the machined parts.
In the standard version the thermocouples are manufactured without process connections. Fastening elements such as a union screw, a compression fitting, or a spring-loaded or customer-specific hold down device can be attached and are available as options.
Specification:
|
Probe Outside Diameter |
0.5mm, 1.0mm, 1.5mm |
|
Calibration |
Standard limits of error (Type K,J,T,E,N) Special limits or error (Type K,J,T,E,N)
|
|
Sheath Material |
304 Stainless Steel 316 Stainless Steel Inconel 600
|
|
Junction |
Ungrounded , Grounded
|
|
Cable Insulation Description |
24 Gage, Stranded , Kapton 24 Gage, Solid, Kapton 24 Gage, Stranded, 24 Gage,Solid, 24 Gage,Stranded, Fiberglass 24 Gage, Solid ,Fiberglass |
|
Termination type |
50mm split leads and 15mm Bare Ends. 50mm split leads and spade lugs. Standard Male Plug (425F) Standard Female Jack(425F) Mini Male Plug(425F) Mini Female Jack(425F) Hi Temp Male Plug(800F) Hi Temp Female Jack(800F) |
Feature:
1. Moulded transition eliminates all possibilities of potential defects when inserted, formed and used in Hot Runner systems.
2. The sensor can be formed or mounted into the process, or with the use of a swivel nut or a spring-loaded bushing.
3. The thermocouple sensors are available with a variety of sheath materials including stainless steel, corrosion resistant and high temperature oxidation resistant alloys.
4. Sensor diameter available from 0.5 to 1.5mm ;
5. Extension cable are available in a variety of insulation materials. These include kapton, fibreglass, PTFE or PVC with or without stainless steel overbraid.
Application:
Hot runner manifolds
Moulds used in injection moulding machines
For direct installation into the process
