Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 100pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 2.2*4.2mm | Style: | Straight Or Coil |
| Lead Wire: | Fiberglass Silicon, Copper, | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Highlight: | Electric Coil Heaters,coil heater with thermocouple |
||

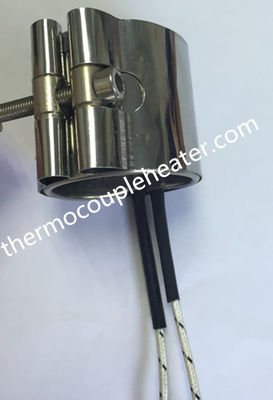

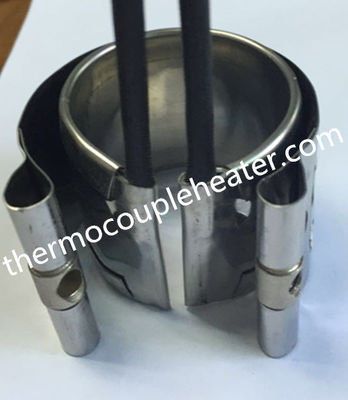

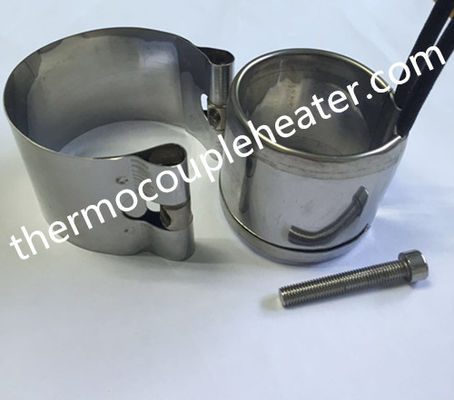

Easy Knock-Down Band Heaters for Industrial Process Heating System
Description:
1) Easy Knock-Down Band Heaters
2) Concentrated tightness system which ensure maximum contact of the windings
3) Flexible armor cable for lead protection is available where abrasion is a problem
4) External strip of steal-sheets from nickel or inox which covers the total width of the heater
5) Inox screws with high degree of tightness so as to transport the current correct in thewinding
6) Specially treated rust-recistance steal, a of Nikel or Inox for temperatures from 480°C and 650°C correspondingly
7) Grated mica sheets type ''C'' are used for he winding and the insulation of the heaters. It provides excellent thermal conductivity and dielectric strength
8) The warming source of the heater is created by a selected nickel-chroma wire in ribbon or round form which achieves, with special winding, to create the correct appropriation of heating
Specification:
| Sheath Material | Chrome Nickel Steel |
| Insulators | High Grade Steatite Ceramic Insulators (High temperature) |
| Heat Saving Thermal Insulation | Ceramic Fibre (std.) |
| Heating Elements (coil) | NiCr 60:16, NiCr 80:20 |
| Nominal Wall Thickness | Premium Heat : ½" Power Saver : ½" + 5/8" (Outer Insulation) Power Saver PLUS :½" + 1.5" ( Outer Insulation) |
| Connection | Fiber Glass Insulated- Metal Braided Flexible Cable |
| Voltage Range | 110V - 440V, Single |
| Surface Loading | 35-55W / inch2 (depending upon model & application) |
| Power Rating | Depending upon application |
| Power Tolerance | ± 10% |
| |
| Insulation Resistance (Cold) | < 20 MΩ |
| Sheath Temperature | Up to 500°C maximum (Chrome Nickel Steel sheath) |
| Gap Between the Clamping Edge | 5 - 10mm |
| Resistance | +/- 10% |
| Width : | Minimum 30mm and there after multiples of 15mm. Minimum 100mm in case of Power saver & Power Saver |
| Inner Diameter | Minimum 50mm Minimum 75mm incase of Power saver & 100mm for Power Saver PLUS |
1) The inner profile is perfectly round,providing a perfect coupling with the nozzle.Size of the connectiong cap is minimal,giving extremely limited overall dimensions.
2) Power connection is performed by a metal braiding cabl,standard length 1m,with two nickel power leads and one galvanized-copper grounded lead.
Application:
1) Dies
2) Cylinders and drums
3) Plastic film extruders
4) Injection and blow Moulding machine
5) Holding Tanks
6) All Plastic & Rubber Processing Machinery
