Customized Electric Coil Heaters With Type J Thermocouple Fiberglass Protected Leads
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | - |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Carton Box |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, Paypal |
| Supply Ability: | 20,000pcs per month |
Detailed Product Description
| Product Name: | Cable Heater | Thermocouple: | Type J |
|---|---|---|---|
| Application: | Hot Runner Plastic Mold | Material: | Stainless Steel 304, 316 |
| Moisture Proof: | IP 65 | Insulated Material: | Comressed MgO |
| Warranty: | 1 Year | Lead Wire Length: | 1000 Mm Or Customized |
| Lead Wire Length: | 1000 Mm Or Customized | ||
| Highlight: | Electric Coil Heaters,coil heater with thermocouple |
||

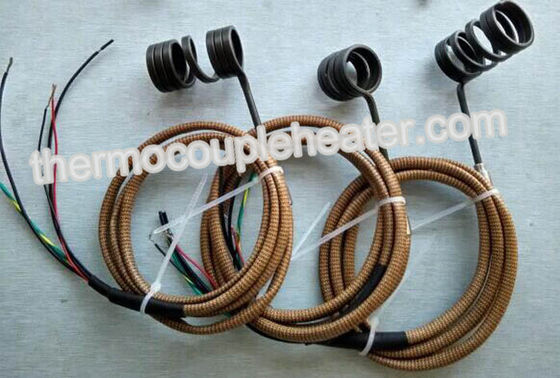

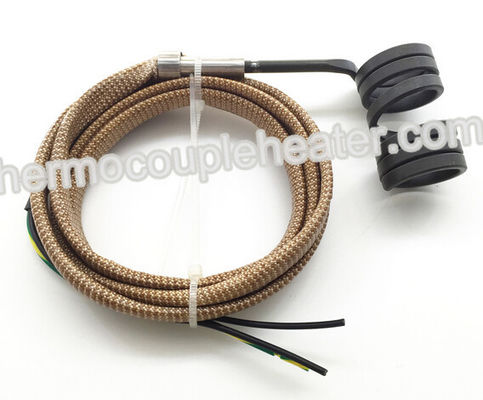

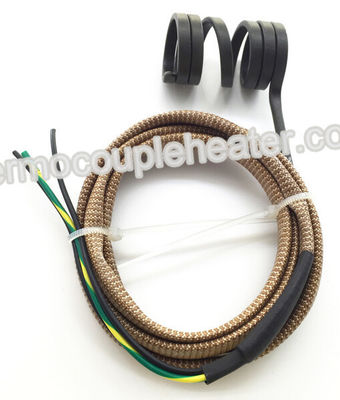

2.2 x 4.2mm Spring Coil Heaters With Type J Thermocouple And Fiberglass Protected Leads
1. Coil Heater Brief Introduction
Coil and cable heaters are made by placing a pair of tiny coils or two lines of straight resistance wire inside a very dense MgO medium. This core is then inserted into a stainless steel shell. These high-performance heating cells can acquire temperatures of up to 1500° F.
The sheath material of standard cable heaters is stainless 304; their heating core is coiled or straight solid Nickel Chrome wire. Cable heaters can transmit up to 35 W/in2 heating capacity and can attain up to 15000F surface temperature.
A Coil Spring Heater in its unformed straight stage can have a maximum length of 6ft and its cross-section can be square or rectangular, while a cable heater can be 300ft long and is available in round cross sections. Thermocouple sensors could be installed internally at the tip or the middle of a heater.
Coil and cable heaters can accommodate "J" type or "K" type thermocouple sensors that could be placed internally at the tip or the middle of a heater. They can be made as well to have profiled or distributed wattage configuration.
2. Coil Heater Characteristics
- Standard sizes available with various cross section
- Various Watt Density option available
- Designed for even heat profile
- Precision fit on Hot Runner Nozzles
- Highly Non-corrosive
- Choice of Terminal Exits
- Advanced Thermal Engineering
- Available with in built Thermocouple
3. GME Coil Heater Advantage
Material
1. Germany imported Ni80Cr20 Alloy wire ;
2. USA imported high purity Mgo ;
3. Stainless Steel sheath contains high composition of nickel ;
Technical feature ,
1. Maxium sheath temperature 750℃；
2. High voltage test Min. 1000V AC ;
3. Insulation resistance ≥500MΩ AT 500V AC
4. Leakage current ≤0.5mA at 253V AC
4. Coil Heater Parameter.
|
Spring coil heater (H series) |
3.0x3.0 |
Φ3.0 |
Φ4.0 |
Φ5.0 |
3.5x3.5 |
5.0x5.0 |
|
Voltage |
220V,230V,240V |
|||||
|
Power tolerance 115W-200W |
+/-10% |
|||||
|
Power tolerance 201W-2000W |
+5%-10% |
|||||
|
Out jacket length |
30mm~280mm |
|||||
|
Diameter of the inner sleeve/wrapped diameter |
10mm~42mm |
|||||
|
Unheating length |
45mm |
|||||
|
Max power density |
9W/cm² |
|||||
|
Heating Length tolerance |
+/-0.05mm |
|||||
|
Unheating length tolerance |
+/-2.5% |
|||||
|
Tolerance ID d ≤20mm |
Without inner sleeve:-0.15mm |
|||||
|
Tolerance ID d 20mm~30mm |
Without inner sleeve:-0.20mm |
|||||
|
Tolerance ID d ≥30mm |
Without inner sleeve:-0.25mm |
|||||
|
Tolerance cross section |
+/-0.15mm |
+/-0.20mm |
||||
|
Thermocouple |
K,J,E |
None |
||||
|
Material |
304,321,316 |
|||||
|
Maximum working temperature |
650℃ |
|||||
|
Die electrical strength |
800V |
1000V |
||||
5. Spring Coil Heater Application
- Applications for Coil Spring Heater
- Hot runner nozzles
- Cutting & sealing bars
- Medical equipment
- Rod, pipe & tube heating
- Heat tracing
- Semiconductor manufacturing
