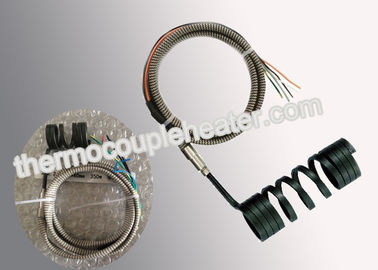

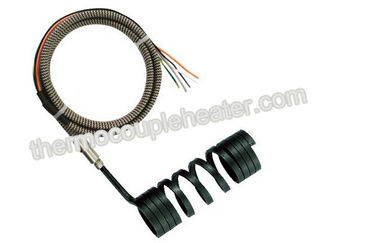

High Quality Industrial Spring Hot Runner coil micro heater with thermocouple J
Description:
1) Hot Runner Coil Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.
2) Our offered range of Hot Runner Mould Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with Mgo powder and compacted for faster and efficient heat transfer. These heaters are also offered as per the customer requirements.
Specification:
Square heating cable dimensions(mm)
1.5*2.1; 1.7*3.5; 2*4; 2.2*4.2; 2.7*4.5; 4.2*6.5; 3*3; 3.5*3.5, 4*4, 5*5, 7*7
Round heating cable dimensions(mm)
Φ1.6, Φ1.8, Φ2.0, Φ3.0, Φ3.3, Φ3.8, Φ5.0
Sheath material: SS304, SS321
Heating wire Ni80Cr20
Insulation material MgO
Surface temperature could be maximum 750℃
Power supply 100V~400V
Wattage error on cold condition +5%~10%.
Insulation resistance on cold condition: DC1000V≥100MΩ.
Current leakage≤0.5mA
| heath Material |
Cr Ni-Steel |
| Insulation Material |
MgO |
| Resistance Wire |
Ni Cr 80-20 |
| Maximum Sheath Temperature |
700°C |
| Die Electrical Strength |
800V A/C |
| Insulation |
>5 M W |
| Thermocouple |
J type (Standard) or K type |
| Length Tolerance (Straight) |
5% |
| Wattage Tolerance |
+ 10% (+ 5% Available Upon Request) |
| Resistance Tolerance |
+ 10% (+ 5% Available Upon Request) |
| Unheated Length |
35mm (Standard) |
| Dimensional Tolerance |
Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
Application:
1. Injection moulding machine nozzle
2. Hot Runner Nozzles & Bushings
3. Packaging machineries
4. Hot runner Injection moulds.
5. Injection & Blow Moulding Machine Nozzles.
6. PET prefrom & Thin wall container Moulds
7. Hot runner Manifolds.
