Multifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480V

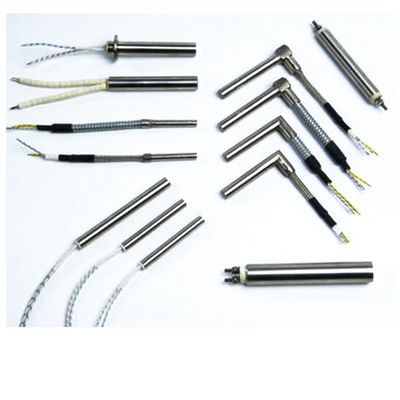

Large Image : Multifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480V

Product Details:

Place of Origin:	Wenzhen, China
Brand Name:	GME
Certification:	CE

Payment & Shipping Terms:

Minimum Order Quantity:	50PCS
Packaging Details:	Exporting Case Packing
Delivery Time:	7-15Wroking Days
Payment Terms:	T/T, Western Union
Supply Ability:	10000pcs/Month

Contact Now

Detailed Product Description

Dimension:	Mix Dia 6mm	Power:	Customized
Power Source:	Electric	Certification:	CE
Voltage:	12-480V	Type:	Air Heater
Highlight:	electric cartridge heaters , cartridge immersion heater

1. Description

Condition:	New	Type:	Air Heater	Power Source:	Electric
Dimension(LWH):	Mix dia 6mm	Weight:	Customized	Voltage:	12-480V
Power(W):	Customized	Certification:	CE	Warranty:	6000 hours
After-sales Service Provided:	Engineers available to service machinery overseas

Cartridge heaters from GME are simply the benchmark of industry. Packing, plastic processing, food-service, and process industries alike look to our cartridge heaters as a reliable, efficient and cost-effective heat source. Swaged-in designs are made for use in applications where high density, high temperatures, and long service life are critical to reduce downtime and minimize cost.

FEATURES	TYPICAL APPLICATIONS
CE component recognition available	Liquid Immersion
Rugged dependable heat source	Plastic Molds
Temperatures up to 820C	Dies
Many diameters offered as standard	Labeling
Highly compacted unit which resists shock and vibration	Medical Equipment
Alloy sheath for high corrosion resistance	Platens
Custom manufactured to specifications	Packaging Equipment
	Hot Stamping
	Sealing
	Injection Molding

Specifications

Diameter	1/4’’	5/16’’	3/8’’	1/2’’	5/8’’	11/16’’	3/4’’	7/8’’	1’’	6.5mm	8.0mm	10mm	12.5mm	16mm	20mm
Max volts	240	240	240	240	480	480	480	480	480	240	240	240	240	480	480
Max Amps	4.2	6.0	6.5	10.5	22.0	22.0	22.0	22.0	25	4.0	6.0	6.0	10.5	22	22
Mini watts	Consult TAIYUAN for minimum wattage
Watt tolerance	+5%-10% of rated wattage
Length tolerance	±2% of length, ±3/32 minimum
Watt density	=Total Wattage Diameter x 3.14 x heated length

FACTORS FOR LONGER HEATER LIFE

1. Do not exceed recommended maximum watt density specified for

the heater size.

2. The heater sheath must fit properly into the machined hole. A tight fit

is critical.

3. Protect the heater from contaminants such as oil, grease, and

vapors.

4. Install adequate Kw to accomplish work load and make up for

heat losses.

Special modifications
In addition to the standard design, TY offers a variety of special modifications which are available to customize the heater for your application.
Distributed Wattage:	Resistance winding can be concentrated in specific areas of the heater for localized heat distribution.
Centerless Grinding:	Precision grinding of the heater sheath provides tighter diameter tolerances when required.
Coating:	coating can be provided on heater sheath for applications requiring chemical resistance.
Ground Lead-wire:	Separate color coded ground wire can be provided when required.
Special Connectors:	Various connectors for power leads can be provided upon request.

CARTRIDGE CARE AND MAINTENANCE

1. Store heaters in a dry area, especially during periods of high humidity.

2. Protect leads from abuse and abrasion.

3. Maintain temperature control and keep accessories in good working condition to obtain

correct operating conditions.

4. All cartridge heaters have hygroscopic tendencies and can accumulate moisture in shipping

and storage. Low heater insulation (less then 1 meg ohm) can be baked in an oven for

several hours or started at low voltage to eliminate moisture.

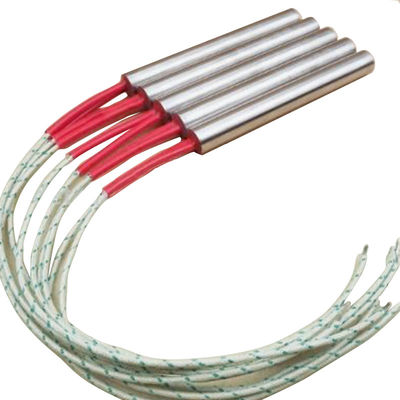

Multifunctional Mold Heating Element Cartridge Heaters CE Certification , 12-480V 0
