| Wire Insulation: | Etc. | Name: | Brass Tube Coil Heater |
|---|---|---|---|
| Protection Sleeves: | Fiberglass, Silicon, Braided Metal Screen Etc | Application: | Hot Runner System |
| Material: | Stainless Steel 304 Etc | Lead Wire Length: | 1000mm Or Customize |
| Warranty: | 1 Year | Insulated Material: | Comressed MgO |
| Moistureproof: | IP65 | Cross Section: | 2.2 X 4.2mm,3.2 X 1.8mm,OD 1.8mm Etc |
| Thermocouple: | Type J , K | Tube Length: | 200 - 2500 Mm |
| Form: | Straight Or Coiled | Type: | Tangential, Radial Exits, Axial |
| Wire: | Braided Copper Tinned Conductor Etc | ||
| High Light: | Electric Coil Heaters,coil heater with thermocouple |
||

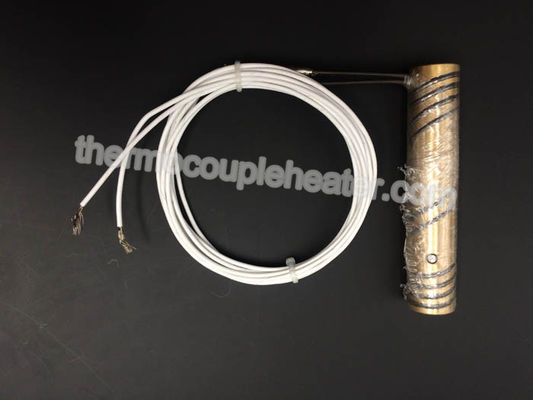

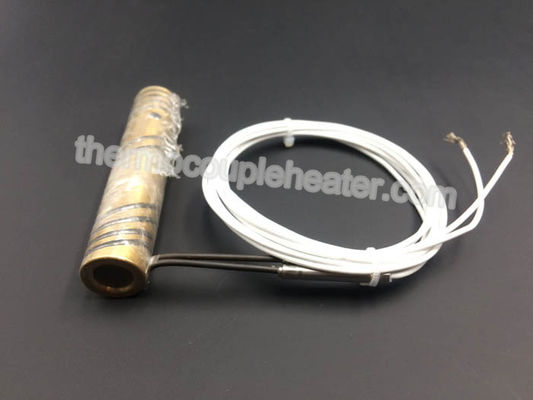

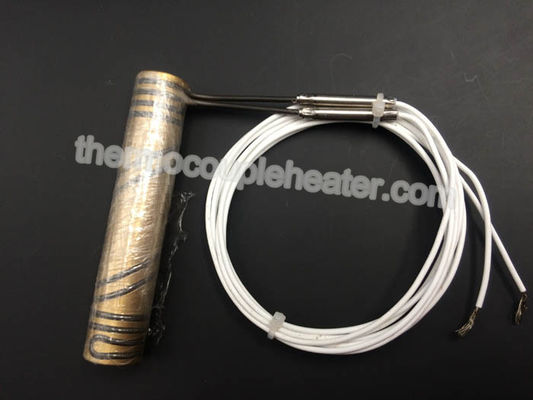

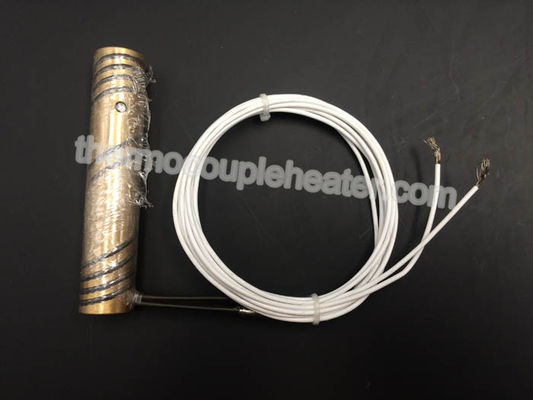

Press In Brass Microtubular / Coil Heaters With Thermocouple For Hot Runner Injection Mold
1. Introduction
GME is one of the reputed manufacturers of Pressed in Brass Coil Heater all over the globe. Manufactured using superior quality material, these products are suitable for eliminating known problems that are associated with the casting process in spectrometry industries. Our range is capable of functioning 8% faster than cast in brass heaters. The component integrated in the brass for the heater enables in facilitating exact repeatability of heat profile. Furthermore, even when the coil heaters are exposed with molten brass, there would be no destruction of the thermocouple junction. Our products are available in flexible designs like internal, external “wound in” or external slotted type J or type K thermocouple.
2. Characteristics
1). Tight fit on nozzle
2). Optimal heat distribution
3). Up to 1200°F at inner brass casing
4). Superior heat transfer
5). Highly non-corrosive
6). Built-in Type J or Type K thermocouple
3. Parameter
| Spring coil heater (H series) | 3.0x3.0 3.3x3.3 4.0x2.0 4.2x2.2 4.5x2.7 |
Φ3.0 | Φ4.0 | Φ5.0 | 3.5x3.5 4.0x4.0 |
5.0x5.0 |
| Voltage | 220V,230V,240V | |||||
| Power tolerance 115W-200W | +/-10% | |||||
| Power tolerance 201W-2000W | +5%-10% | |||||
| Out jacket length | 30mm~280mm | |||||
| Diameter of the inner sleeve/wrapped diameter | 10mm~42mm | |||||
| Unheating length | 45mm | |||||
| Max power density | 9W/cm² | |||||
| Heating Length tolerance | +/-0.05mm | |||||
| Unheating length tolerance | +/-2.5% | |||||
| Tolerance ID d ≤20mm | Without inner sleeve:-0.15mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d 20mm~30mm | Without inner sleeve:-0.20mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance ID d ≥30mm | Without inner sleeve:-0.25mm With inner sleeve:0.05mm~0.10mm |
|||||
| Tolerance cross section | +/-0.15mm | +/-0.20mm | ||||
| Thermocouple | K,J,E | None | ||||
| Material | 304,321,316 | |||||
| Maximum working temperature | 650℃ | |||||
| Die electrical strength | 800V | 1000V | ||||
4. Application
Hot runner heater is the important component of hot runner system, which is made of special technque and high quality material, ensuring its efficient work in the close space, even when the heating jacket temperature is 700 degrees Celsius. Complying with the metric system and the international standard, all models are on the basis of VDE0721 quality inspection requirements, so as to meet most factories and hot runner machines.
we provide several kinds of heaters, such as pipe heater, press in brass heater, coil heater and so on.
hot runner system
plastic industry
packaging machinery
medical equipment
casting process
other electric heating industry
