Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE, Rohs, ISO9001 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension(L*W*H: | Customized |
|---|---|---|---|
| Voltage: | 6v To 480v, 24V To 415V | Certification: | CE, Rohs, ISO9001 |
| Sheath Of Hot Runner Coil Heater: | SUS304 | Insulation: | Compacted Magnesium Oxide |
| Highlight: | electric resistance heater,Electric Coil Heaters |
||
1. Product description
| Condition: | New | Type: | hot runner coil heater | Power Source: | Electric |
| Dimension(L*W*H): | Customized | Weight: | Customized | Voltage: | 6v to 480v, 24V to 415V |
| Power(W): | Customized | Certification: | CE, Rohs, ISO9001 | Warranty: | One year |
| After-sales Service Provided: | Engineers available to service machinery overseas | Sheath of hot runner coil heater: | SUS304 | Insulation of hot runner coil heater: | Compacted magnesium Oxide |
| Conductor of hot runner coil heater: | NiCr8020 | Thermocouple: | K type, J type (optional) | Leads: | Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand) |
| Temperature resistance: | Maxi 1000 cent degree | Outlet type: | Radial, Tangential, and Azial |
Packaging Details: |
Fumigation free wooden case or paper box for hot runner coil heater. |
2. Detailed features

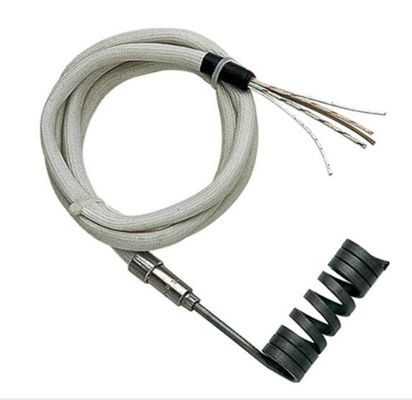

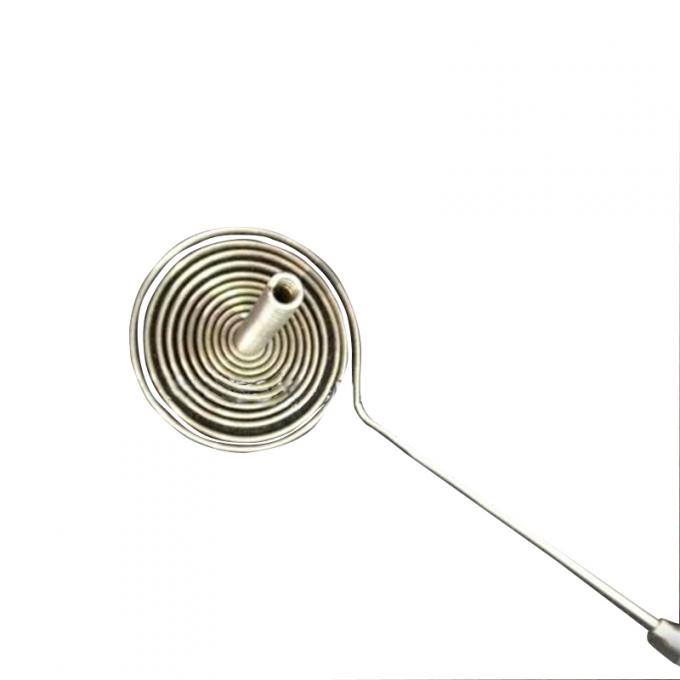

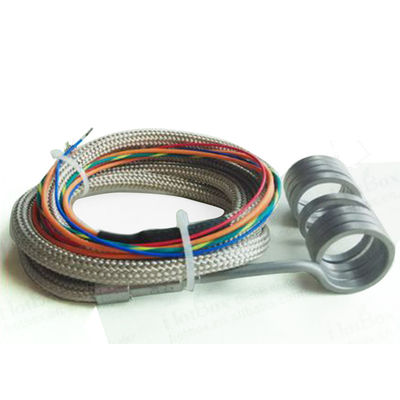

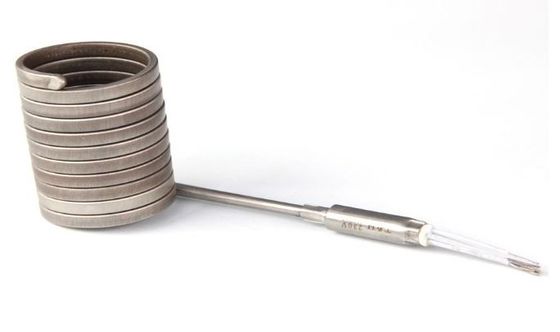

Introduction of hot runner coil heater:
Hot runner coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.
Datasheet of hot runner coil heater:
Sheath of coil heater: SUS304
Insulation of coil heater: Compacted magnesium Oxide
Heating conductor: NiCr8020
Thermocouple: K type, J type (optional)
Leads: Stainless steel braided wire, PTFE wire, glass fiber wire ( On demand)
Voltage: 24V to 415V
Temperature resistance: Maxi 800 cent degree
Outlet types of hot runner coil heater:
1. Radial type
2. Tangential type
3. Azial type
| Standard section Size of hot runner coil heater: |
| Ø 1.8mm, Ø 3.0mm |
| Ø 3.3mm, Ø 4,0 mm |
| 2.2 x 4.0 mm, 2.0 x 4.2 mm |
| 2.2 x 4.2 mm, 2.5 x 4.0 mm |
| 2.5 x 4.2 mm, 2.7 x 4.5 mm |
| 2.7 x 4.2 mm, 3.0 x 3.0 mm |
| 3.0 x 4.5 mm, 3.3 x 3.3 mm |
| Other size could be customized. |
Standard sizes of hot runner coil heater:
| 230V | Total length straight (incl. cold length) | |||
| 2,2 x 4,2 mm Ø3,3/3,0x3,0mm cold: 65 mm |
Ø 3,0mm cold: 65mm |
3,2x3,2mm Ø 4,0 mm cold:40mm |
2,5x4,0mm cold:40mm |
|
| Other types on request | ||||
| 150 W | 265 mm | - | - | - |
| 175 W | - | 365 mm | 250 mm | - |
| 200 W | 315 mm | - | 300 mm | 250 mm |
| 225 W | 345 mm | - | 350 mm | 300 mm |
| 250 W | 400 mm | 515 mm | 400 mm | 350 mm |
| 290 W | 450 mm | - | 450 mm | 400 mm |
| 330 W | - | 615 mm | 500 mm | 450 mm |
| 350 W | 525 mm | - | - | - |
| 400 W | 585 mm | 765 mm | 600 mm | 500 mm |
| 470 W | 665 mm | - | 700 mm | 600 mm |
| 550 W | - | - | 800 mm | 700 mm |
| 620 W | 825 mm | - | 900 mm | 800 mm |
| 690 W | 965 mm | - | - | - |
| 700 W | - | - | 1000 mm | 900 mm |
| 800 W | - | - | - | 1000 mm |
| 850 W | 1165 mm | - | 1200 mm | - |
| 950 W | 1265 mm | - | 1400 mm | 1200 mm |
| 1000 W | - | - | - | - |
| 1100 W | 1465 mm | - | 1600 mm | 1400 mm |
| 1200 W | 1615 mm | - | 1800 mm | 1600 mm |
| 1400 W | 1815 mm | - | - | - |
| 1600 W | 2015 mm | - | - | - |
| 1800 W | - | - | - | - |
| 2000 W | - | - | - | - |
| 2200 W | - | |||
