Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | ||
| High Light: | temperature sensor rtd,temperature sensor rtd pt100 |
||

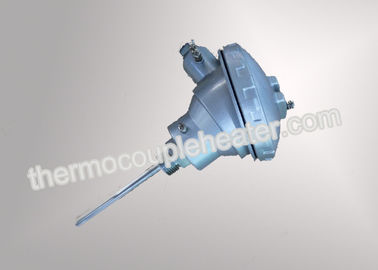

Resistance Temperature Detector RTD PT100 Temperature Sensor with head
Description:
1) GME Thermocouples are very simple and durable temperature sensors. Thermocouple come with different pairings of materials allowing for a very wide range of applications. The different compositions are standardized into thermocouple types. The different types are given letter names which are standardized across the industry.
2) GME Thermocouples: are manufactured in many different configurations for multitude of applications. Diameters, lengths, sheath material, lead lengths and sensor material are just a few of the variables that go into determining the style of thermocouple when manufactured. The main determining factors of what type thermocouple needs to be used in a application is temperature, environment, response time and accuracy. The junction of the thermocouple can be grounded, ungrounded or exposed.
3) GME Thermocouple type: Assembly thermocouple, Armored thermocouple, bayonet spring fixed thermocouple,high temperature thermocouple, platinum and rhodium thermocouple,anti-corrosion thermocouple, wear-resistant thermocouple, high pressure thermocouple, special thermocouple, thermocouple, hand-held thermocouple, miniature thermocouple, noble metal thermocouple, rapid thermocouple, tungsten rhenium thermocouple, single core armored thermocouple etc.
Specification:
Embedded probe size: 6*80mm (customer self-determination)
1. Waterproof head
2. Diameter:16 mm (Can be customized)
3. Length:500mm (Can be customized)
4.PT100 type
5.-50-500C
6.The electrical outlet : M20x1.5NPTI1/2
| Type | Graduation | Measuring Range | Nominal Pressure | Flow Speed | Remarks |
| WRN-01T WRN 2 -01T |
K | 0~800 |
30Mpa
|
100m/s
|
|
| WRE-01T WRE 2 -01T |
E | 0~600 | |||
| WZP-01T WZP 2 -01T |
Pt100 | -200~500 | |||
| WRN-624 WRN 2 -624 |
K | 0~800 |
30Mpa |
80m/s |
Insulation Type |
| WRE-624 WRE 2 -624 |
E | 0~600 | |||
| W Z P - 6 2 4 WZP 2 -624 |
Pt100 | -200~500 | |||
| WRN-625 WRN 2 -625 |
K | 0~800 | Shell-connecting Type |
Related products: Temperature controller
Application:
1) It is usually connected with display meter, recording meter and computer, etc. to directly
measure temperature of liquid, vapor, gas and solid surface ranging from
200 to 500 during various production process
2) Assembly type thermal resistance temperature sensor forms a complete set with display instrument, which is measuring of liquid and gaseous media and the solid surface temperature, Widely used in petroleum, chemical, machinery, metallurgy, electric power, textile, food, nuclear and aerospace industries and technology field
3) Thermal resistor fabricated by temperature elements, usually installed fixtures and junction box, etc. Mainly components
