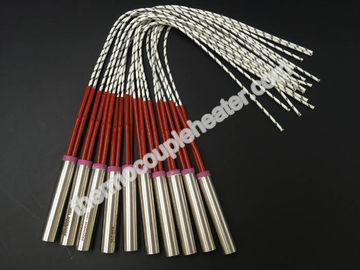

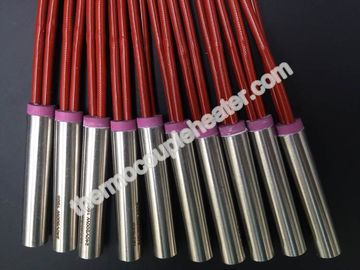

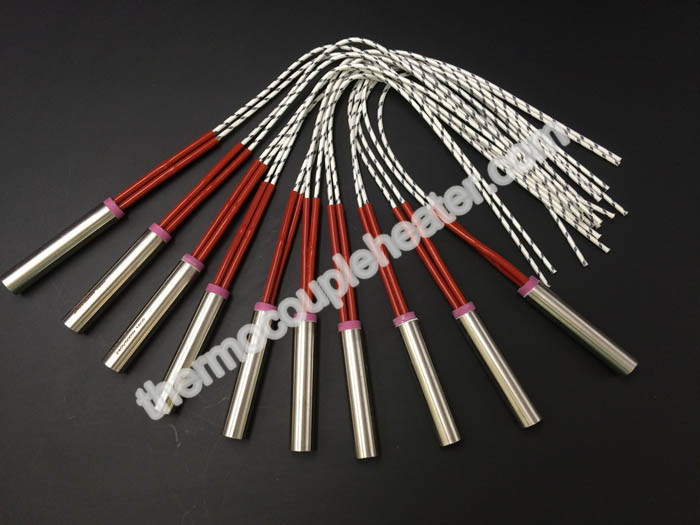

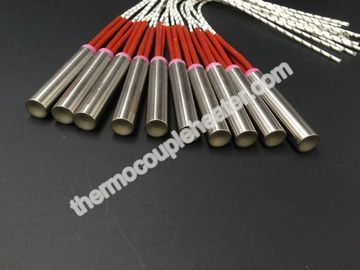

240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length

China 240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length supplier
240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length supplier 240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length supplier 240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length supplier 240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length supplier

Large Image :  240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length

Product Details:

Place of Origin: China
Brand Name: GME
Certification: ISO/CE/UL/CSA

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Price: USD 1-100 FOB Shanghai/pc
Packaging Details: Exported Case Packing
Delivery Time: 7-15Wroking Days
Payment Terms: T/T, Western Union, L/C,PayPal
Supply Ability: 10000pcs/Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Cartridge Heater Thermocouple: None
Tube Material: High Quality 304SS, 316L Resistance Wire: Ni80Cr20
Insulation Material: 99.99% High Purity Magnesium Tolerance Of Length: +/-1.5%
Wattage: 500W
High Light:

cartridge immersion heater

,

cartridge heater with thermocouple

240V 500W 1/2" Diameter Cartridge Heaters In 250mm Length With Externally Connected Leads





Description:



Cartridge heater is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….Cartridge

heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter. ​



GME produced cartridge heater sprovide superior heat transfer, uniform temperatures, resistance to oxidation and corrosion and long life even at high temperatures.Our experience ensures that the performance and life expectancy of our cartridge heaters supersedes the cartridge heater of other companies.



Feature



1. Low to high density is available ;
2. Available in 1/8” – 1” diameters in 304 stainless steel or Incoloy;
3. Lead wire -nickel (instead of brass ) ;
4. Ambient temperature is up to 400℃ for the Lead wire insulation material ;
5. Moistureproof- IP65 ;
6. Distributed wattage is available ;
7. Split cartridge heaters is available ;



Technical Details



1 Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide
2 Heating element: high durance and high temperature NiCr2080 heating elements from Germany
3 TC material: High quality TC elements to ensure ±5 ℃ tolerance
4 Max working temperature: 400℃
5 High voltage stability test: Less than 0.5mA leak under 1000V for 30 seconds
6 OD range: 3mm-32mm
7 The range of the Total Length: 25mm----2500mm
8 Maximum power density: 40w/cm²
9 Unheated zone: 10mm at lead end and about 5mm at bottom
10 Lead options: A: Solid Nickel Pin: wire 300℃ or 500℃
B: Swaged in wire: 500℃ wire coming from inside



Applications:



Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.



• Hot Runner Bushings
• Marking & Sealing Machinery
• Seal bars in Packaging Industry
• Mold die and platen heating
• Medical & Laboratory Apparatus
• Shoe Making Industry
• Semiconductor chamber heating
• Semiconductor wafer lead connection
• Semiconductor wire and die bonding
• Freeze protection and de-icing of equipment in cold climates or applications
• Humidity control
• Test sample heating in gas chromatography

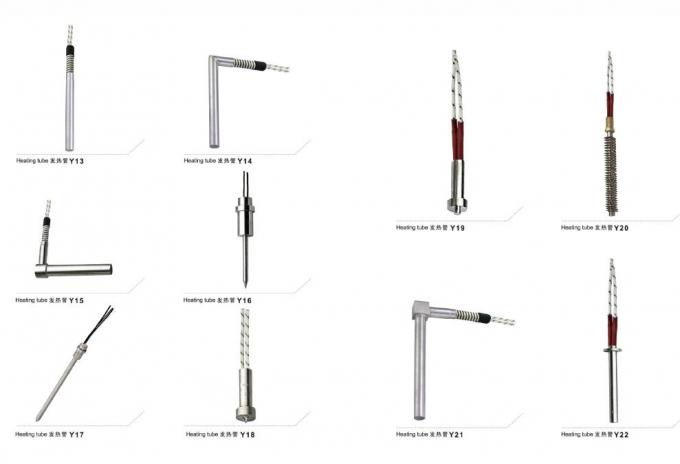

Types Available :

240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length

240V 500W 1/2" Cartridge Immersion Heater With Externally Connected Leads , 250mm Length
