Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge

China Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge supplier
Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge supplier Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge supplier Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge supplier

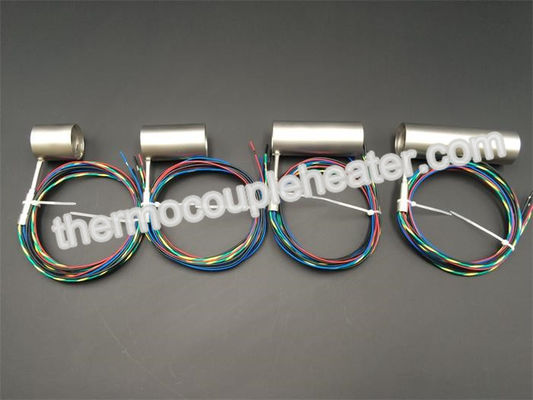

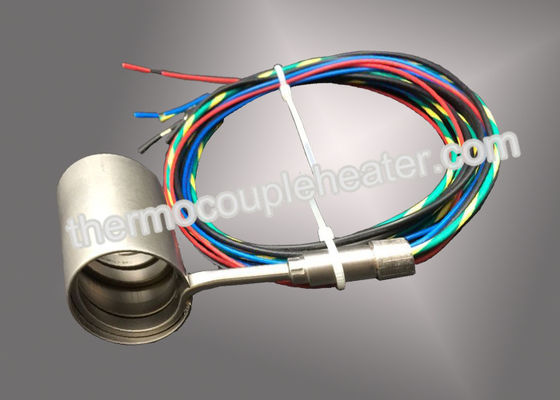

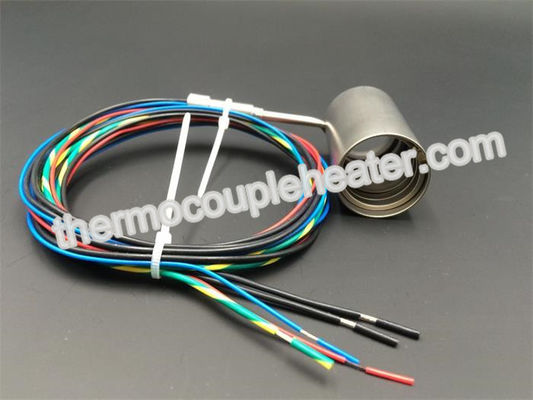

Large Image :  Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Packaging Details: cartons, pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
Cross Section: 2.2*4.2mm Style: Straight Or Coil
Lead Wire: Copper, , Fiberglass Silicon Coiling Scheme: Tangential, Radial Exits, Axial
High Light:

electric resistance heater

,

coil heater with thermocouple

Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge



Description:

1) GME heater made of high quality heater wire , high-purity magnesium oxide materials and strict process technology



2) There are various sections and sizes,square ,round and flat cross sections and sizes available ,provide high –performance electric heater for heating hot runner mold and other fileds.



3) Heaters maximum temperature up to 700C.The integration of temperature thermocouple for precise temperature control ,can provide K J E themocuple ,blasting and black surface treatment ,also provides bright surface .



4) Hot runner heater are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube.



Specification:



Standard Configuration



Material: 304 and brass

Unheated Length :45mm

Powder Lines, Grounding Wires Length: 1000mm

Profect wtih sleeve: Silicon Glass fiber (White, Black, Orange, Green and Other)


Thermocouple: with thermocouple channel and thermocouple hole

Surface Treatment: Grit blast



Section :2.2*4.2mm,2*4mm,3.3*3.3mm,3*3mm,2.4*1.6mm,2.1*1.5mm,



3.5*3.5mm,4.5*2.7mm,4*4mm,5*5mm (square)



Φ1.8mm Φ2mm Φ2.5mm (round)



Model Dimension(MM) Voltage(V) Power(W) Key technical indexes
Φ45x50 Φ45x50 220 1000

1.Use condition: environment temperature -20~+60°C,

2.Leakage current <0.5MA

3.Insulation resistance ≥5M

4.Ground resistance <0.1

5.Voltage resistance: no electric breakdown for 1 minute under 1500V

6.Temperature endurance: 100-1200°C



Φ22X160 Φ22X160 230 1200
Φ40X40 Φ40X40 220 400
Φ30X50 Φ30X50 220 400
Note: Other models are available according to your specifications.






























Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge



Application:



GME heater is widely used for many industrial areas:

1) Die Casting Nozzles

2) Heating nozzle & bushings

3) Hot runner tools in the plastic industry

4) Injection moulding machine nozzle

5) Packaging machineries

6) Hot runner Injection moulds.

7) PET prefrom & Thin wall container Moulds

8) Hot runner Manifolds.



Shipping



1) Express: UPS, FEDEX, DHL, TNT, EMS, ect

2) Air shipping: Please choose your convenient shipping method according your detail requirement.

3) Sea shipping: large quntity order

4)Normally, it will take around 3--7days from China to destination country.

Sealed Hot runner coil nozzle heater with K / J thermocouple in high wattge
