Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | ||
| High Light: | temperature sensor rtd,resistance temperature detecto |
||

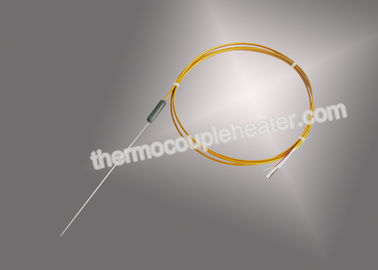

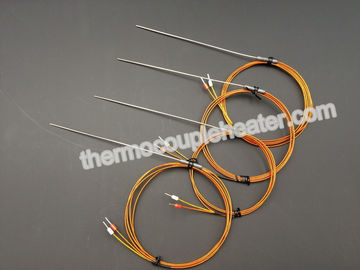

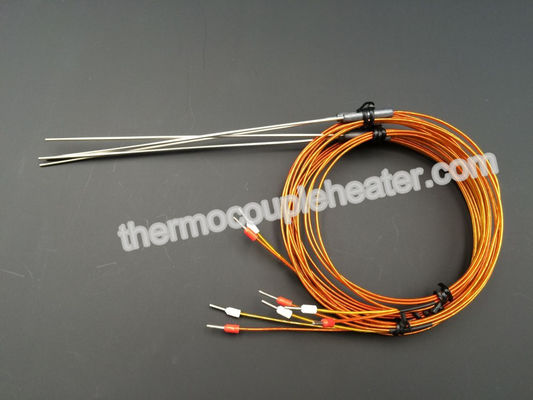

Thermocouple K type With Tail shielded wire 1m/2m/3m Tail Length Used in Industry
Description:
1) A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit.
2) Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity.
3) Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.
4) The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
Specification:
1) Miniature thermocouples with minimum 0.25 mm dia.
2) Squeezd thermocouples with small tip dia.
3) Trilevel thermocouples
4) Coated thermocouples (PTFE, Tungsten carbide, Ceramic, Steatite, etc)
5) Thermocouple with approved thermowells
6) High temperature ceramic spouts limit
| Type | J, K, T, E, N |
| Element size (MI) - mm | 0.25, 0.5, 1, 1.5, 3, 4.5, 6, 8, Other sizes on request |
| Element size (Non MI) - mm | 1.2, 1.6, 2, 2.5, 3.2. Other sizes on request |
| Protection sheath | Seamless SS304, SS321, SS316, SS310, HRS446, Inconel 600/800, Nickel, Hastalloy, Titanium, Ceramic 610 & C-799, Silicon carbide, Monel etc |
| Configuration | Simplex / Duplex / Multipoints |
| Type | R, S, B |
| Element size - mm | 0.30, 0.35, 0.4, 0.45, 0.5, Other sizes on request |
| Protection sheath | Ceramic (C-799), 610, Inconel, Silicon carbide, etc |
| Configuration | Simplex / Duplex / Multipoints |
| Special | Tri level thermocouples, Special cladding (Thimbled), Hot bast & stove dome thermocouples, Furnace Temperature thermocouples |
Application:
1) Thermocouples are widely used in science and industry; applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes.
2) Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
Payment Terms :
1. T/T;
2. Paypal;
3. Western Union;
Shipping:
1) We will ship the items after the payment is reached;
2) We can ship to you by UPS/DHL/TNT/EMS/Fedex. Pls contact us directly and we will use your preferred ways. For the Countries & Regions where EMS cannot deliver,pls choose other shipping ways;
3) Goods will be sent out soon,with 7 days;
4) We are not responsible for any accidents, delays or other issues that are the responsibility of the shipping service;
5) Any import fees or charges are the buyer's responsibility.
