Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001/ CE |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 7~20 working days |
| Payment Terms: | L/C, T/T, PAYPAL |
| Supply Ability: | 100000 pcs per Month |
| Application: | Industrial | Explosion-proof Grade: | DIIBT4 |
|---|---|---|---|
| Sheath: | SS304 | Measuring Range °C: | -200~+500 |
| Accuracy: | SS304 | Electrical Outlet: | M20x1.5NPTI1/2 |
| High Light: | temperature sensor rtd,resistance temperature detecto |
||
| Application: | Industrial | Theory: | Temperature Sensor |
| Diameter: | 16mm | Length: | 500mm |
| Protection grade: | IP65 | Explosion-proof grade: | dIIBT4 |
| Input type: | RTD,PT100 | Connection: | Thread |
| Thread size: | M27*2 | Sheath: | SS304 |
| Thin Film Element: | Hereaus |

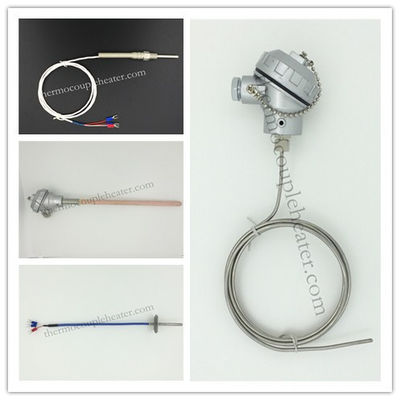

1.PT100 RTD
2.Industrial Assembly resistance
3.Sheath:SS304
4.L=500mm
5.Diameter;6/8/12/16mm
It is usually connected with display meter, recording meter and computer, etc. To directly measure temperature of liquid, vapor, gas and solid surface ranging from -200 to 500 during various production process.
| Type | Graduation | Measuring Range °C | Accuracy | Tolerance |
| WZP-230 | Pt100 | -200~+500 | Class A | ±(0.15+0.002|t|) |
| Class B | ±(0.30+0.005|t|) |
Remarks: It is absolute temperature value actually tested with thermal sensor.
1. Waterproof head
2. Diameter:16 mm (Can be customized)
3. Length:500mm (Can be customized)
4.PT100 type
5.-50-500C
6.The electrical outlet : M20x1.5NPTI1/2
| Type | Graduation | Measuring Range |
Thermal Response Time | Specification | |
| d | L × I | ||||
| WZP-220 WZP2 -220 |
Pt100
|
-200 ~ 500
|
<90S | Φ16 |
300 × 150
|
| WZP-220G WZP2 -220G |
<24S | ||||
| WZP-221 WZP2 -221 |
<45S | Φ12 | |||
| WZP- 221G WZP2-221G |
<24S | ||||
| WZP- 230 WZP2 -230 |
<90S | Φ16 | |||
| WZP- 230G WZP2 -230G |
<24S | ||||
| WZP- 231 WZP2 -231 |
<45S | Φ12 | |||
| WZP- 231G WZP2-231G |
<24S | ||||
| WZC-220G |
Cu50
|
-40 ~ 100
|
<120S | Φ16 | |
| WZC-220 | <40S | ||||
| WZC-230 | <120S | ||||
| WZC-230G | <40S | ||||
| WZC-221 | <120S | Φ12 | |||
| WZC-221G | <40S | ||||
| WZC-231 | <120S | ||||
| WZC-231G | <40S | ||||
1) Type 220, 221 for anti-spray type, protection class IP65; Type230, 231 for water-proof type, protection class IP55;
1. Length
2. Diameter
3. Thread or Flange connection
4. If with thread or flange, what is the size?
5. Junction box or compensating Cable or Connector or Handle ?
We can make all size of the probe according to your needs.
| Packaging Details: | paper carton , as buyer's requirments |
| Delivery Detail: | 7 days |
