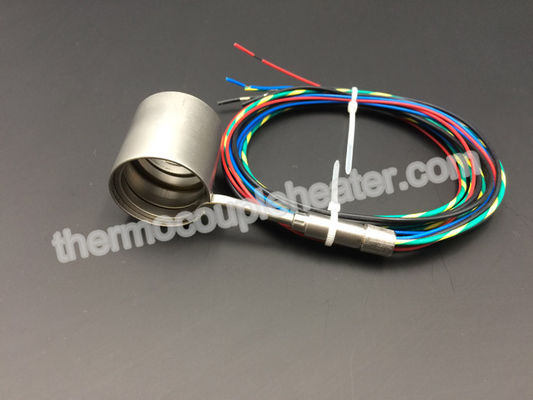

Stainless steel armor Hotlock Coil Heaters With Type J Thermocouple

Product Details:

Place of Origin:	China
Brand Name:	GME
Model Number:	Coil Heater

Payment & Shipping Terms:

Minimum Order Quantity:	10 pcs
Price:	Negotiation
Packaging Details:	Exported Case Packing
Delivery Time:	7-15 working days after received your payment
Payment Terms:	D/P, L/C, T/T, Paypal, , Western Union
Supply Ability:	20,000pcs per month

Contact Now

All Products

Coil Heaters (328)

Thermocouple RTD (294)

Mineral Insulated Thermocouple Cable (32)

Thermocouple Compensating Cable (62)

Cartridge Heaters (143)

Cast Heater (36)

Tubular Heater (87)

High Temperature Cable (28)

Thermocouple Connection Head (59)

Hot Runner Temperature Controller (22)

Thermocouple Thermowell (26)

Sacrificial Anodes (10)

Thermocouple Components (162)

Mica Insulated Band Heaters (27)

Ceramic Heaters (4)

Electric Heater Components (31)

Heater Making Machine (13)

Brass Hot Runner Nozzle Heater With Builtin Thermocouple

Micro Tubular Coil Heaters with Thermocouple J

350W 230V Hot Runner Coil Heater With Armor And Type J Thermocouple

Detailed Product Description

Certification:	CE, Rohs, ISO9001	Product Name:	Stainless Steel Armor Hotlock Coil Heater
Application:	Hot Runner	Moistureproof:	IP65
Insulated Material:	Comressed MgO	Watt Density:	6.5 W /CM 2
Power(W):	200-3000W	Max.Tempreture:	650℃
High Light:	Electric Coil Heaters , coil heater with thermocouple

Stainless steel armor Hotlock Coil Heater With Type J Thermocouple

1. Coil Heater Description

Coil heaters have a construction which is similar to high watt density cartridge heaters. These heaters are also known as high performance tubular heaters or cable heaters. They are used when you require highly focused heat with a low profile. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.

2. Electric Resistance Heater Characteristics

Standard sizes available with various cross section
Various Watt Density options available.
Robust Design with Choice of Terminal Exits
Designed for even heat profile
Precision fit on Hot Runner Nozzles & Manifolds
Highly Non-corrosive
Maximum heat transfer due to more contact area
Advanced Thermal Engineering
CE Certified
Available with built in Thermocouple

3. Electric Resistance Heater Application

Plastic injection molding nozzles
Semiconductor manufacturing and wafer processing
Hot metal forming dies and punches Sealing and cutting bars
Medical, analytical and scientific instruments
Restaurant and food processing equipment
Cast-in heaters
Laminating and printing presses
Air heating
Textile manufacturing
Heating in a vacuum environment

4. Electric Resistance Heater Parameter.

Standard Configuration

Material :304

Unheated length(L1):45mm

Connector(cold side)(D1xU): Ф3.5x40mm

Power lines,grounding wire length(L):1000mm

Surface treatment:sandblasting;

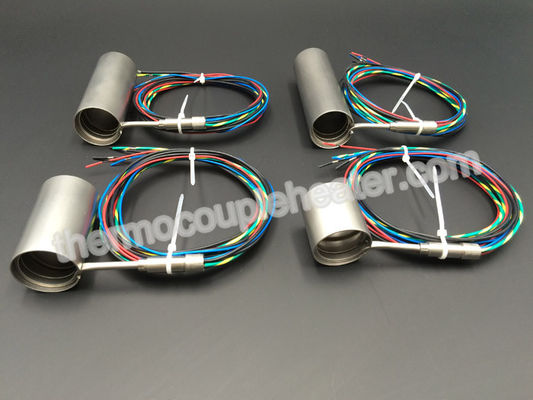

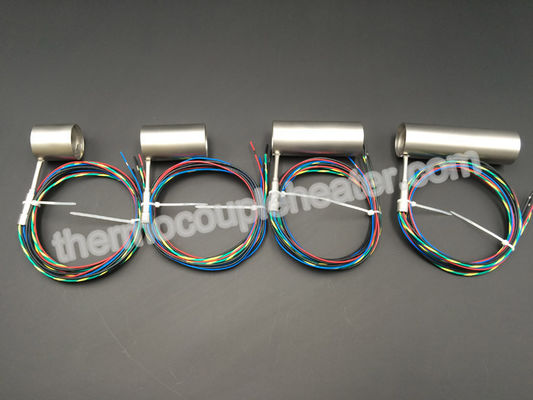

Stainless steel armor Hotlock Coil Heaters With Type J Thermocouple

Sheath material	Chrome Nickel Steel
Insulation material	High purity MgO
Heating element	NiCr 80:20
Thermocouple	'J' type (Fe K) 'K' type (Cr Al) grounded or ungrounded
Connection Wires	Stranded Nickel wires with PTFE coating
Power Tolerance	(+5% ,-10%) (smaller tolerances on request )
Insulation Resistance	≥ 500 MΩ at 500V AC
Current Leakage	≤ 0.5 mA at 253V AC
Sheath Temperature	750°C
Dielectric strength (high voltage test )	Min. 1000V
