Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Temperature Range: | -200~650℃ |
|---|---|---|---|
| Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
| Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
| Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
| Function: | Temperature Sensor | Feature: | Economical |
| Types Of Terminal Box: | Anti-spray/water-proof | ||
| High Light: | temperature sensor rtd,temperature sensor rtd pt100 |
||

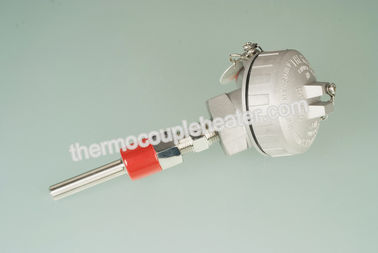

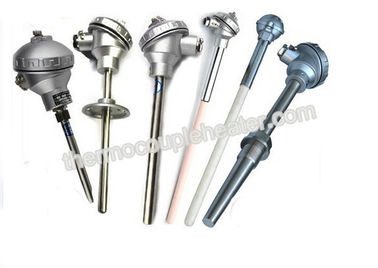

Assembled type B/S/R platinum-rhodium thermocouple for high temperature test
Description:
1) Thermocouple is a temperature measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts pf the circuit.
2) Thermocouples are a widely used type of temperature measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures.
3) In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.
Protection Tube:
ø8mm,ø9mm,ø10mm,ø12mm,ø15mm,ø20mm,ø22mm
Process connection:
G1,G1/2,M8,M10,M12,M20×1.5,M27x2
Specification:
1) Min MOQ,only one is ok
2) more 15 years factory
3) OEM/ODM accept,CE passed
4) new design and fast delivery
type:B/R temperature range:0-1700C
probe diameter:22mm probe length:910mm
insert length:700mm probe material: corundum texture+SS304
thread size:1inch temperature transmitter type:B type
temperature range:-20C to 1700C output signal:4-20mA
power supply:24V accuracy:0.2%FS
HS code:9033000000
| Product | conductor material | type | graduation |
use temperature (short time) |
use temperature (long time) |
| thermocouple | PtRh30-Ptrh6 | WRR | B | 0-1800°C | 0-1600°C |
| PtRh10-Pt | WRP | S | 0-1600°C | 0-1300°C | |
| PtRh13-pT | WRB | R | 0-1600°C | 0-1300°C | |
| NiCrSi-NiSi | WRM | N | 0-1100°C | 0-1000°C | |
| NiCr-NiAl(Si) | WRN | K | 0-1000°C | 0-900°C | |
| NrCr-constantan | WRE | E | 0-600°C | 0-700°C | |
| Iron- Constantan | WRF | J | 0-600°C | 0-500°C | |
| Copper-Constantan | WRC | T | 0-400°C | 0-350°C |

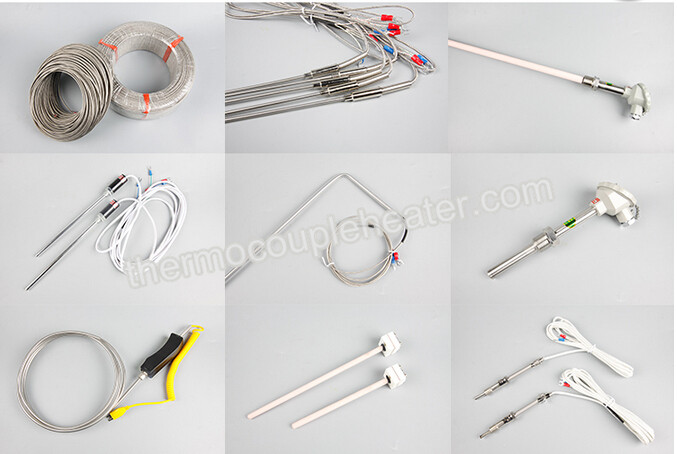

Related Products:
Application:
1) Thermocouples are widely used in science and industry;
2) Applications include temperature measurement for kilns, gas turbine exhaust, diesel engines, and other industrial processes.
3)Thermocouples are also used in homes, offices and businesses as the temperature sensors in thermostats, and also as flame sensors in safety devices for gas-powered major appliances.
Payment Terms and Shipping:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
