Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 2.2*4.2mm | Style: | Straight Or Coil |
| Lead Wire: | Copper, , Fiberglass Silicon | Coiling Scheme: | Tangential, Radial Exits, Axial |
| Highlight: | Electric Coil Heaters,coil heater with thermocouple |
||

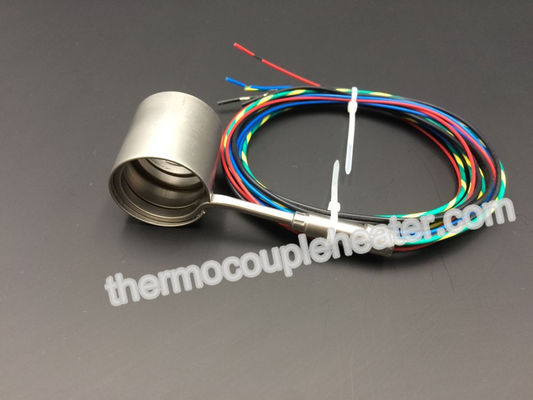

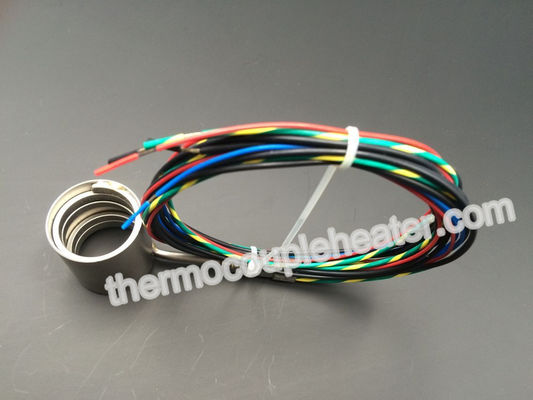

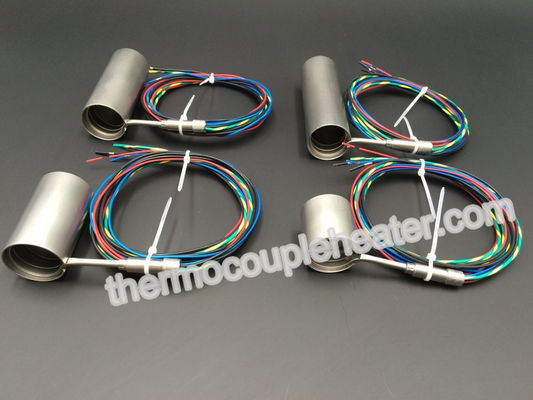

Stainless steel Hot runner system spring coil heater for plastic injection mold
Description:
Coil heater is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire. The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area.
1) Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters.
2) These heaters are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube.
3) These heaters can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.
Specification:
1) Customized voltage and power
2) Various sizes of cross section, including 1.8mm, 2*4mm, 2.2*4.2mm, 3.0*3.0mm, 3*3mm, 3.5*3.5mm, 4*6mm and other specifications.
3) High watt density 25w/sq.cm, low watt density 5w/sq.cm.
| Inner Diameter of coiled heater | 8/10/14/16/18/20mm ( + 0.05mm) |
| Coil Height | 13.3mm/12.7mm ( + 0.05mm) |
| Flat Coil |
ID9mm,OD26mm ID10mm,OD27mm ( + 0.05mm) |
| Voltage | 12v;24v;120v;220v |
| Wattage | 100w;120w;150w;250w |
| Cross-section | 3x3mm;2.2x4.2mm;3.2x1.8mm;3.3x3.3mm;4.0x2.0mm;3.5x3.5mm |
| Thermocouple | K or J type |
| Connector plug | Xlr female and male 5 pin |
| Sleeve material | kevlar/fiberglass(Fashional) |
| Sleeve color | red,black,yellow,green,blue,and black with yellow strip |
| PID Temperature controller | L125xW90xH35mm |
Application:
The hot runner heater is widely used in many areas:
1) Caustic Cyanide used in gold processing
2) Hot water storage
3) Asphalt Wax
4) Caustic solutions Detergent
5) Sterilizing equipment
6) Heating oils
7) Plastic processing&packaging machinery
8) Ovens&dryers
9) Dies&Tools
10) Water& Oil heating appliances
11) Vending machines
12) Kitchen equipments
13) Medical equipments
Advantage:
1) Standard sizes available with various cross section
2) Various Watt Density option available
3) Designed for even heat profile
4) Precision fit on Hot Runner Nozzles
5) Highly Non-corrosive
6) Choice of Terminal Exits
7) Advanced Thermal Engineering
8) Available with in built Thermocouple
