Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Brand Name: | GME |
Certification: | CE |
Minimum Order Quantity: | 50pcs |
---|---|
Packaging Details: | cartons, pallet |
Delivery Time: | 7~10 working days |
Payment Terms: | T/T, Western Union, MoneyGram, L/C |
Supply Ability: | 100000 pcs per Month |
Power Source: | Electric | Temperature Range: | -200~650℃ |
---|---|---|---|
Voltage: | 12-480V | Probe Material: | Stainless Steel Or Nickel |
Style: | K, J, | Pairs Quantity Of Element: | Simplex/duplex |
Heating Element: | Nichrome Resistance | Mounting: | Thread/flange/none |
Function: | Temperature Sensor | Feature: | Economical |
Types Of Terminal Box: | Anti-spray/water-proof | ||
Highlight: | temperature sensor rtd,resistance temperature detecto |

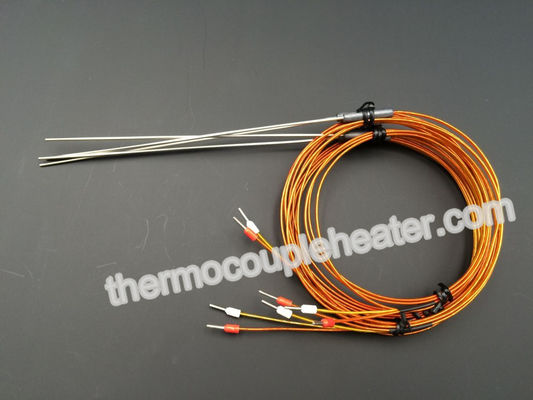

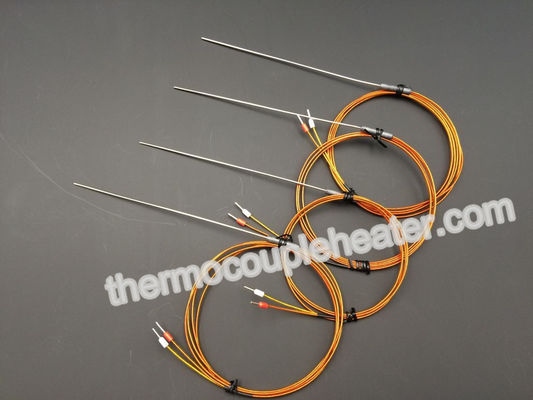

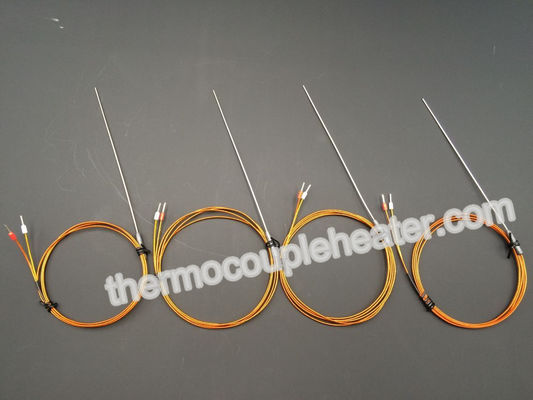

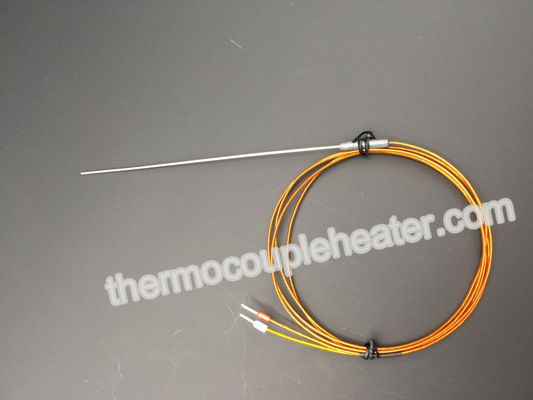

1mm Type K,T,J,N,E thermocouple with simplex, duplex, triplex pairs
Description:
Commonly used thermocouple could be divided into two types: standard thermocouple and non-standard thermocouple.
1) Standard thermocouple means national standards for the relationship between the thermoelectric power and temperature, tolerance, and a unified standard thermocouple indexing table, it has its support of the display instrument available for selection
2) Non-standard thermocouple.
On the scope of use or magnitude and not standard thermocouple, generally there is no uniform indexing table, mainly used to measure certain special occasions.
In China, from January 1st 1988, thermocouples and RTD all according to IEC international standards, and designated seven kinds of standardization ---S, B, E, K, R, J, T thermocouple as our unified design-type thermocouple
3) In order to guarantee the thermocouple is reliable, steady work, its structure is as follows.
1. Of the two thermocouple hot electrode welding must be strong.
2. Two hot electrodes to each other should be well insulated to prevent short circuits;
3. The connetion between compensation wire and thermocouple free end must be convenient and reliable
4. It should be able to guarantee protection casing has full isolation between hot electrode and harmful media
Specification:
1) Screw head size: 6mm (normal M6, if you need M8 or the other size, pls contact online. )
2) Length: 100mm~10000mm (Customized)
3) Material: Shielded wire SS304, SS321, SS310, SS316L, INCONEL600
4)Calibration: K.T, N, J, E customized
Type |
Calibration |
Tolerance class | |||
Ⅰ | Ⅱ | ||||
Tolerance value | Measuring range ℃ | Tolerance value | Measuring range ℃ | ||
WRN | K | ± 1.5C | -40~+375 | ± 2.5C | -40~+333 |
± 0.004|T| | 375~-1000 | ± 0.0075|T| | 333~1200 | ||
WRE | E | ± 1.5C | -40~+375 | ± 2.5C | -40~+333 |
± 0.004|T| | 375~800 | ± 0.0075|T| | 333~900 | ||
WRP | S | ± 1C | 0~+1100 | ± 2.5C | 0~600 |
± [1+0.003(t-1100)] | 1100~1600 | ± 0.004|T| | 600~1600 | ||
WRQ | R | ± 1C | 0~+1100 | ± 2.5C | 0~+1100 |
± [1+0.003(t-1100)] | 1100-1600 | ± 0.0025|T| | 1100~1600 | ||
WRR | B | --- | --- | --- | --- |
--- | --- | ± 0.00425T| | 600~1700 |
Application:
Thermocouple is widely used in many areas:
1) Diesel Engine
2) Industrial furnace
3) Steel Industry
4) Kiln
5) Petrochemical Industry
6) Gas trubine industry
Payment Terms and Shipping:
1.Loading Port: Shanghai China
2. Samples Leading Time: 3-7 working days
3. Delivery Time: Within 7-15 days after payment
4.Payment: T/T, Western Union, Paypal
