Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001/ CE |
| Model Number: | Type K |
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or as per your request |
| Delivery Time: | 7~20 working days |
| Payment Terms: | L/C, T/T,PAYPAL |
| Supply Ability: | 100000 pcs per Month |
| Product Name: | Mineral Insulated Thermocouple | Application: | Temperature Sensor For Industry |
|---|---|---|---|
| Max.temperature: | -200 To 250°C | Probe Material: | 316SS |
| High Light: | resistance temperature detecto,temperature sensor rtd pt100 |
||

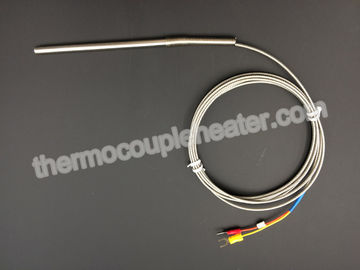

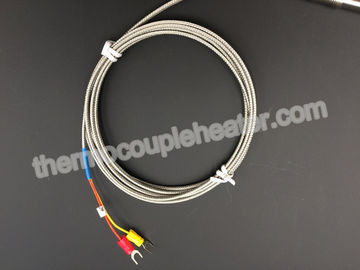

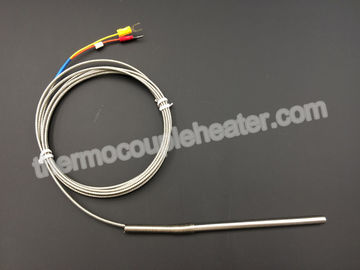

Type K Assembly Mineral Insulated Thermocouple Temperature Sensor
Product Description:
MI thermocouple are used in industry for measuring the temperature of gases, liquids or solid surfaces etc., Its usually assembled with indicators, recorders or computers.
A thermocouple consists of two dissimilar metals joined together at one end. When the junction of the two metals be cooled or heated and a voltage is produced that can be correlated back to the emperature. The calibrations are K, N, E.J, T, S, R, B. Each calibration has a different temperature range.
The thermocouple has such advantages as wide scope of temperature Measurement, stable thermoelectric property, simple structure, signal Available for long distance and low price.
It is necessary to select thermocouple materials and protection tube of different type in accordance with requirements of different temperature range and application environments.
The industrial thermocouples produced by our company comply with some standards such as JB/T9238-1999 Technical Specification of industrial Thermocouple, GB/T18404-2001 Sheath Thermocouple Cable and Sheath Thermocouple (dit.IEC61515:1995),GB/T16839-1997 Reference Tables and Tolerances of Thermocouple (dit.IEC584-1 and IEC584-2).
Specification:
| Materia | SUS321 probe |
| Temperature range | 0-1300 ℃ |
| Response time | 3s-10s/ Variable depend upon types |
| Thermocouple sensor | Single or double |
| Mounting&fixing | Thread or flange |
| Sheathed material Diameter | 0.5,1,2,3,4,5,6,8,12 |
| Sensor material | nickel chromium |
| Dia | 2-12mm |
| Connection box | Water-proof, Anti-explosion, Anti-corrosion |
| Certification | ISO9001,CE |
| Package | Wooden box/carton case for MI thermocouple |
TYPE:
| product | conductor material | type | graduation | use temperature | use temperature |
| (short time) | (long time) | ||||
| thermocouple | PtRh30-Ptrh6 | WRR | B | 0-1800°C | 0-1600°C |
| PtRh10-Pt | WRP | S | 0-1600°C | 0-1300°C | |
| PtRh13-pT | WRB | R | 0-1600°C | 0-1300°C | |
| NiCrSi-NiSi | WRM | N | 0-1100°C | 0-1000°C | |
| NiCr-NiAl(Si) | WRN | K | 0-1000°C | 0-900°C | |
| NrCr-constantan | WRE | E | 0-600°C | 0-700°C | |
| Iron- Constantan | WRF | J | 0-600°C | 0-500°C | |
| Copper-Constantan | WRC | T | 0-400°C | 0-350°C |
Feature:
1. Easy assembly and convenient for replacement;
2. Spring thermal element with good shock-proof performance;
3. Wide mesuring range (0~1600 degree Celsius);
4. High mechanical strength and good pressure-resistant performance
Application:
Automotive, engine test cells
Co-Energy, solar, coal-gasification, fossil fuel, & nuclear
Fuel cells
Food & Beverage
Ovens & Chillers
Industrial processes
Medical
Pharmaceuticals
Chemical & Petrochemical
R&D
