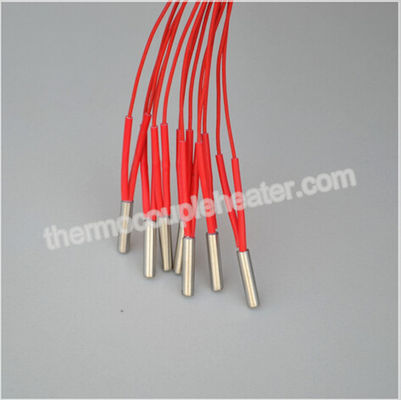

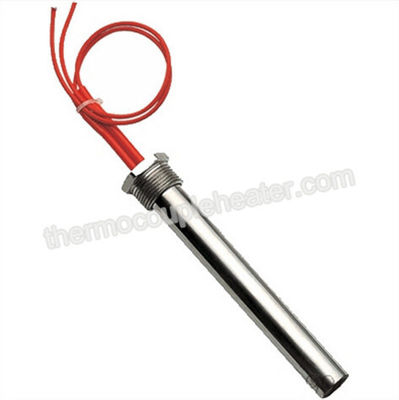

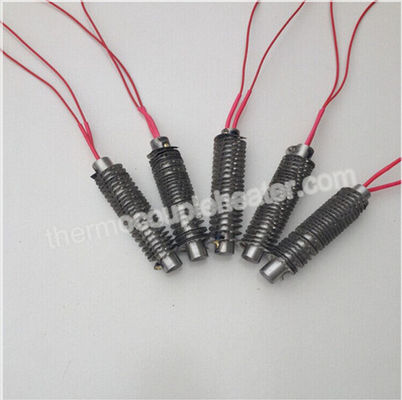

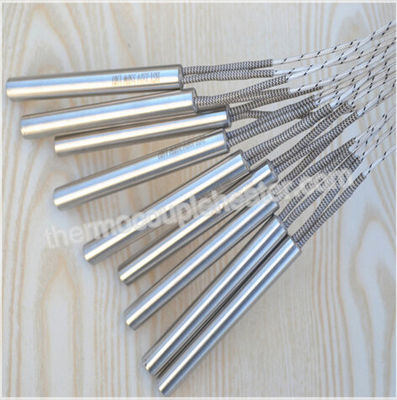

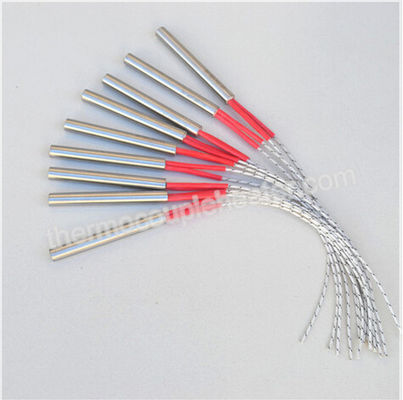

Single head electric tube custom cartridge heaters High Temperature Resistance

China Single head electric tube custom cartridge heaters High Temperature Resistance supplier
Single head electric tube custom cartridge heaters High Temperature Resistance supplier Single head electric tube custom cartridge heaters High Temperature Resistance supplier Single head electric tube custom cartridge heaters High Temperature Resistance supplier Single head electric tube custom cartridge heaters High Temperature Resistance supplier Single head electric tube custom cartridge heaters High Temperature Resistance supplier

Large Image :  Single head electric tube custom cartridge heaters High Temperature Resistance

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE

Payment & Shipping Terms:

Minimum Order Quantity: 50pcs
Packaging Details: cartons, pallet
Delivery Time: 7~10 working days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Power Source: Electric Dimension: Customized
Voltage: 12-480V Sheath Material: Stainless Steel Or Nickel
Style: K, J, Lead Wire: Copper, , Fiberglass Silicon
Insulation Material: MgO Heating Element: Nichrome Resistance
Screw Threads: Available Flange Washer: Available
Connection: Screw Fitting
High Light:

cartridge immersion heater

,

cartridge heater with thermocouple

High Temperature Resistance Single-head electric tube Cartridge Heater

Description:
GME's Tubular heater, cartridge heater is custom designed in a various shapes to as client’s requirements for direct immersion in liquids such as water, oils, solvents and process solutions, molten materials as well as air and gases. Tubular heaters, cartridge heaters are produced using Incoloy, stainless steel or Copper sheath materials and also there is huge variety of selection of termination styles available. Insulation of Magnesium offers greater heat transfer.

Features:

1) It can save energy and need low power
2) It has fast heat exchange rate
3) It's environmental friendly
4) It has long lifetime and high efficiency
5) It has easy installation and is easily installed
6) It has excellent corrosion resistance


Specification:


Sheath Length5/8" to 7.2 ft. / 15 mm to 2200 mm
Diameter (Φ)(mm) 3.1, 5, 6, 6.5, 8, 10, 12, 13, 14, 15, 16, 18, 19, 20
(inch) 1/8, 1/4, 3/8, 1/2, 5/8, 3/4
Operating Temp.Up to 1830ºF / 1000ºC
Max. Watt Density500 W/in2 / 80 W/cm2
Max. Voltage (V)-
Max. Resistance Density-
Wattage Tolerance+/-10%
Outer Dimension Tolerance0.00~+0.002" for dia. / -0.08~-0.02 mm for dia.
Insulation Resistance (MΩ/DC V)More than 1000/500
High Pot Test (V/min.) / (V/sec.)1500 / 1800 with 5 mA

Single head electric tube custom cartridge heaters High Temperature Resistance
Single head electric tube custom cartridge heaters High Temperature Resistance



Application:

1) Plastic processing machineries ;
2) Engineering Industry ;
3) Packaging machinery ;
4) Shoe making machineries ;
5) Foundry Equipment ;
6) Radiant Surface heating ;
7) Hot Runner Mould Systems etc.

Advantage:

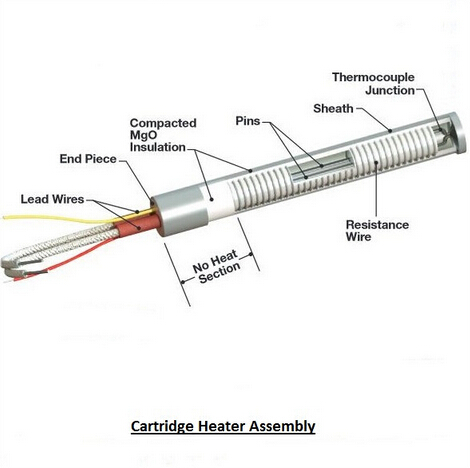

The main advantage of GME's cartridge heater is its unique heating coil construction.

1) This cartridge heater features a heating coil wrapped around a specially-selected ceramic core which is located close to the walls of the heater pipe.

2) Its circumference is lined with extremely pure MgO (magnesia) for insulation, which is exceptional for its thermal conduction and insulation resistance at high temperatures.

3) The inside of the heater is structured to be perfectly compressed, so that heat from the heating coil efficiently travels outwards. This keeps the temperature difference to a minimum between the inside of the heater and the heater surface.

4)The heater can handle extremely high temperatures up to 1830ºF (1000ºC). The maximum watt density is 500 W/in2 (80 W/cm2).

5)This heater boasts a world-class insulation level of 1000 MΩ (at cold state).
We guarantee that this heater will provide you with the level of heating that you expect.
