Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Packaging Details: | cartons， pallet |
| Delivery Time: | 7~10 working days |
| Payment Terms: | T/T, Western Union, MoneyGram, L/C |
| Supply Ability: | 100000 pcs per Month |
| Power Source: | Electric | Dimension: | Customized |
|---|---|---|---|
| Voltage: | 12-480V | Sheath Material: | Stainless Steel Or Nickel |
| Cross Section: | 2.2*4.2mm | Style: | Straight Or Coil |
| Lead Wire: | Copper, , Fiberglass Silicon | Coiling Scheme: | Tangential, Radial Exits, Axial |
| High Light: | temperature sensor rtd,resistance temperature detecto |
||

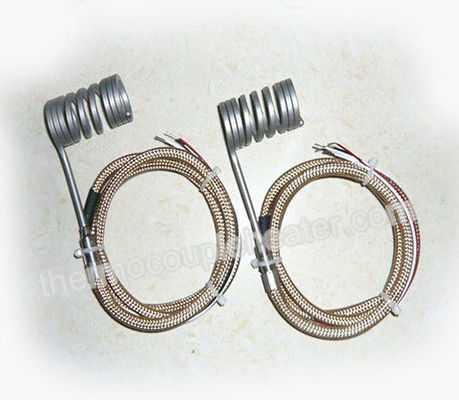

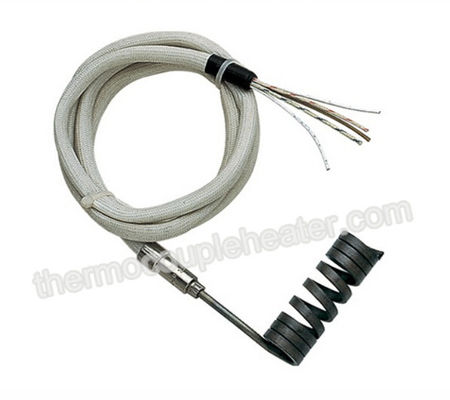

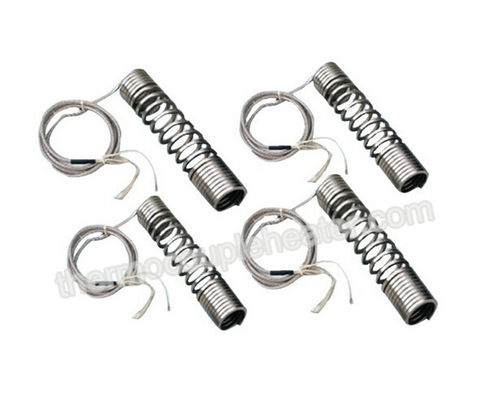

Hot runner coil heater for precision heating systems with different sleeves
Description:
Thermocouples are manufactured in many different configurations for multitude of applications.Diameters,lengths,sheath material,lead material,lead lengths and sensor material are just a few of the variable that go into determining the style of thermocouple when manufactured.The main determining factors of what type thermocouple needs to be used in a application is temperature, environment response time and accuracy.The junction of the thermocuple can be grounded,ungrounded or exposed.The lead length may vary depending on the distance of the temperature controller from the thermocouple sensor.The metal that the sensor is constructed by determines the type of thermocouple manufactured.
1) Spring coil heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.
2) Spring coil heater is also known as high performance tubular heaters or cable heaters.
3) Spring heater can be produced with or without built in thermocouples.
4) Spring coil heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields
Specification:
| Sheath Material | Cr Ni-Steel |
| Insulation Material | MgO |
| Resistance Wire | Ni Cr 80-20 |
| Maximum Sheath Temperature | 700°C |
| Die Electrical Strength | 800V A/C |
| Insulation | >5 M W |
| Thermocouple | J type (Standard) or K type |
| Length Tolerance (Straight) | 5% |
| Wattage Tolerance | + 10% (+ 5% Available Upon Request) |
| Resistance Tolerance | + 10% (+ 5% Available Upon Request) |
| Unheated Length | 35mm (Standard) |
| Dimensional Tolerance | Coil I.D + 0.1 to 0.2mm |
| Coil Length + 1mm |
Application:
Precision formed junctions for high accuracy
Insulated for high temperatures
Field bendable to any configuration
Made from calibrated thermocouple wire
Moisture proof-insulation sealed in metal
Rapid response
Small in size
Hygienically clean
Weldable
Advantage:
Small size and easy fixed installation
High temperatureaccuracy,
Fast response time
High mechanical strength
Good compression performance
Long service life
Package:
