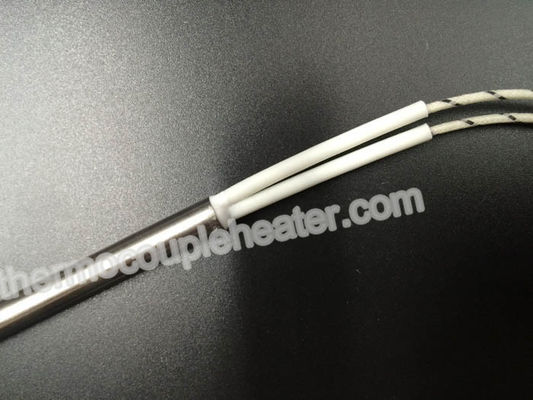

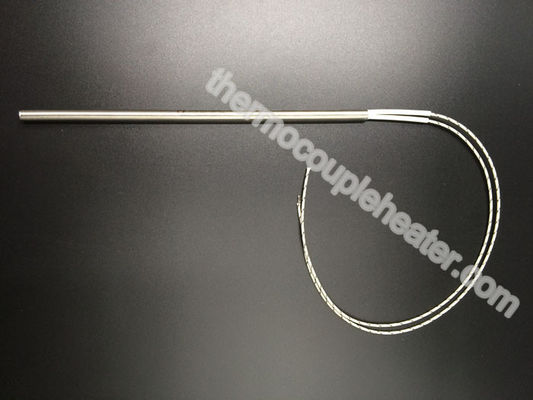

Diameter 6.96mm Cartridge Heaters in 200mm Length With Internally Connected Leads

Diameter 6.96mm Cartridge Heaters in 200mm Length With Internally Connected Leads

    • Diameter 6.96mm Cartridge Heaters in 200mm Length With Internally Connected Leads
    • Diameter 6.96mm Cartridge Heaters in 200mm Length With Internally Connected Leads
  • Diameter 6.96mm Cartridge Heaters in 200mm Length With Internally Connected Leads

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO/CE/UL/CSA

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: USD 1-100 FOB Shanghai/pc
    Packaging Details: Exported Case Packing
    Delivery Time: 7-15Wroking Days
    Payment Terms: T/T, Western Union, L/C,PayPal
    Supply Ability: 10000pcs/Month
    Contact Now
    Detailed Product Description
    Product Name: Cartridge Heater Thermocouple: None
    Tube Material: High Quality 304SS, 316L Resistance Wire: Cr20Ni80
    Insulation Material: 99.99% High Purity Magnesium Tolerance Of Length: +/-1.5%
    Wattage: 0.5-15KW
    High Light:

    cartridge immersion heater

    ,

    cartridge heater with thermocouple

    Diameter 6.96mm Cartridge Heater in 200mm Length With Internally Connected Leads





    Description:



    Cartridge heater is a piece of heating elements made of MgO powder or MgO tube, ceramic cap, resistance wire(NiCr20/80). It is used to heat in plastic injection moulds, dies, platens ….



    Cartridge heaters are most frequently used for heating metal parts by insertion into drilled holes. For easy installation, the heaters are made slightly undersize relative to their nominal diameter. ​





    Technical Details



    1. Inside magnesium oxide insulation material: 99.99% high purity magnesium oxide

    2. Heating element: high durance and high temperature NiCr2080 heating elements from Germany

    3. TC material: High quality TC elements to ensure ±5 ℃tolerance

    4. Max working temperature: 400℃

    5. High voltage stability test:

    6. Less than 0.5mA leak under 1000V for 30 seconds

    7. OD range: 3mm-32mm

    8. The range of the Total Length: 25mm----2500mm

    9. Maximum power density: 40w/cm²

    10. Unheated zone: 10mm at lead end and about 5mm at bottom

    11. Lead options:

    A: Solid Nickel Pin: wire 300℃ or 500℃

    B: Swaged in wire: 500℃ wire coming from inside



    Applications:



    Usually, cartridge heaters are used to heat solids such as injection presses heating plates or various tools; On the other hand, they are also used for heating up water and gases under certain conditions. Especially, it is widely used in automotive industry. Cartridge heaters are also commonly found in the chemical, electronics, medical equipment, packing and nuclear industries.
