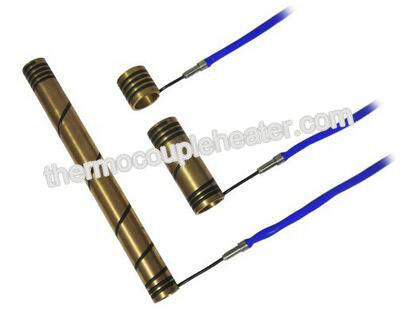

High efficient hot runner coil heaters pressed in brass band special for PET preform moulds
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 pcs |
|---|---|
| Price: | Negotiation |
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-15 working days after received your payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10,000 pcs per month |
Detailed Product Description
| Dimension: | Custom Size | Product Performance: | Electric Heater Element |
|---|---|---|---|
| Model Number: | Press In Brass Coil Heater | Warranty: | One Year |
| Highlight: | electric resistance heater,coil heater with thermocouple |
||
high efficient hot runner coil heaters pressed in brass band special for PET preform moulds
Description
High thermal conductivity : Negative tolerance of heater inner diameter,gapless,fit closely
Fast heating: small power loss +high power heater,freely distribute power setting
Small capacity: Thin wall design,wall thickness 2.0-3.0mm
Easy maintenance,time saving,cost effective:Cut out design,easy install and uninstall by single circlip pliers
Long lifetime: Groove profile design,maximum heating area,quickly heat conduct,lower heating load,no circuit inside,no resistance wire interiace inside,no short circuit dange
Safe: double head design,single resistance wire inside,thick insulating layer,no current leackage.
Power saving: groove profile design ,66% effective contact area,small power loss(spring heater effective contact area is around 25%-33%)
High efficiency:Fit closely + high power,short heating time,short injection cycle time
Features
Unique design to ensure temperature control accuracy,even heating,heat insulating,low power consumption and long life time.
1.Wattage & voltage:Per customers' requirement.
2.Application: Hot Runner System,Plastic Injection Machine,Plastic Extruding Machine,etc.
3.TC:K/J/E(optional)
4.Warranty:12months.
Press in brass coil heater
| Inner Diameter | Φ15-35mm | X section | 2.5*4/3*3 |
| Watts | 250W-1100W | Height | 50-220mm |
| Voltage | 220V/230V/240V | Standard cold length | 30mm |
| TC type | K J E or no | Cable insulation | Hi-temp Fiber-glass insulation |
| Standard cable length | 1000mm | ||
|
CE conformity:YES OEM service:YES Customization:YES |
|||
