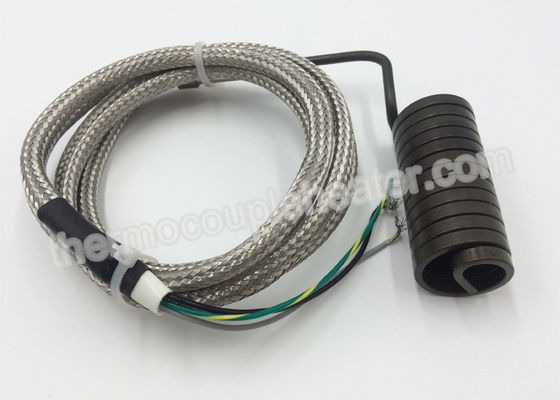

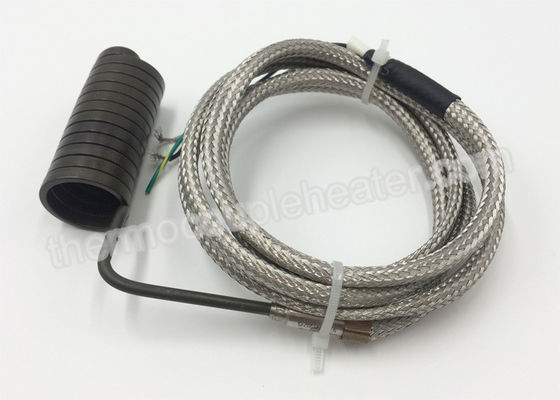

Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple

China Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple supplier
Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple supplier Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple supplier Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple supplier Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple supplier

Large Image :  Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple

Product Details:

Place of Origin: China
Brand Name: GME
Certification: CE & ISO
Model Number: -

Payment & Shipping Terms:

Minimum Order Quantity: 10 pieces
Price: negotiation

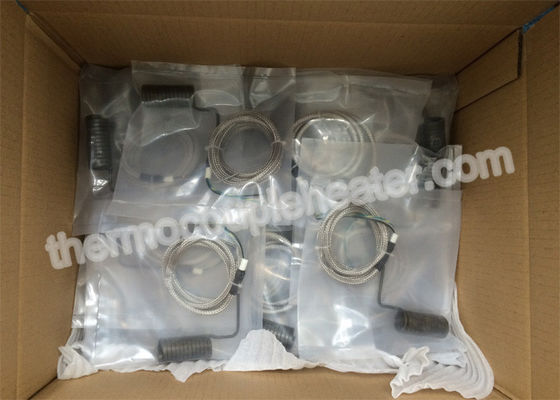

Packaging Details: Export Carton Box
Delivery Time: 7-15 working days
Payment Terms: L/C, D/P, T/T, Western Union, Paypal
Supply Ability: 20,000pcs per month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: Coil And Cable Heater Thermocouple: Type J, K
Application: Injection Mold Hot Runner Material: Stainless Steel 304, 316
Moisture Proof: IP 65 Insulated Material: Comressed MgO
Warranty: 1 Year Lead Wire Length: 1000 Mm Or Customized
High Light:

electric resistance heater

,

coil heater with thermocouple

Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple





1. Coil Heater Brief Introduction



Coil heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The heaters are annealed to acquire malleability for bending into any shape. Hot runner heaters with built in thermocouple are also available. Hot runner bushes are produced with hot runner heaters of different cross section with inner brass and outer stainless steel cover.It's high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can be reuses.



2. Coil Heater Characteristics



  • Standard sizes available with various cross section
  • Various Watt Density option available
  • Designed for even heat profile
  • Precision fit on Hot Runner Nozzles
  • Highly Non-corrosive
  • Choice of Terminal Exits
  • Advanced Thermal Engineering
  • Available with in built Thermocouple



3. Coil Heater Parameter.

Injection Mold Hot Runner Coil and Cable Heaters with Thermocouple

  •

Spring coil heater (H series)

3.0x3.0
3.3x3.3
4.0x2.0
4.2x2.2
4.5x2.7

Φ3.0

Φ4.0

Φ5.0

3.5x3.5
4.0x4.0

5.0x5.0

Voltage

220V,230V,240V

Power tolerance 115W-200W

+/-10%

Power tolerance  201W-2000W

+5%-10%

Out jacket length

30mm~280mm

Diameter of the inner sleeve/wrapped diameter

10mm~42mm

Unheating length

45mm

Max power density

9W/cm²

Heating Length tolerance

+/-0.05mm

Unheating length tolerance

+/-2.5%

Tolerance ID d ≤20mm

Without inner sleeve:-0.15mm
With inner sleeve:0.05mm~0.10mm

Tolerance ID d 20mm~30mm

Without inner sleeve:-0.20mm
With inner sleeve:0.05mm~0.10mm

Tolerance ID d ≥30mm

Without inner sleeve:-0.25mm
With inner sleeve:0.05mm~0.10mm

Tolerance cross section

+/-0.15mm

+/-0.20mm

Thermocouple

K,J,E

None

Material

304,321,316

Maximum working temperature

650℃

Die electrical strength

800V

1000V



4. Spring Coil Heater Application



This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical

equipment, casting process,other electric heating industry, etc..
