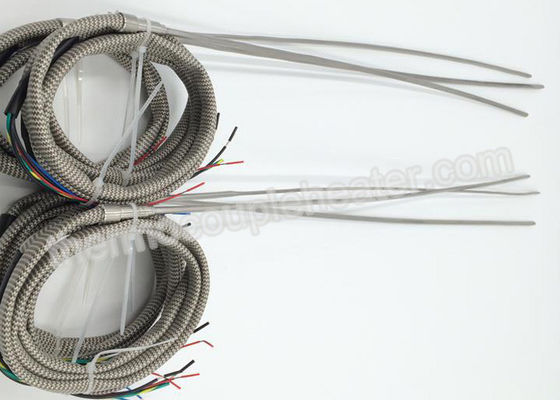

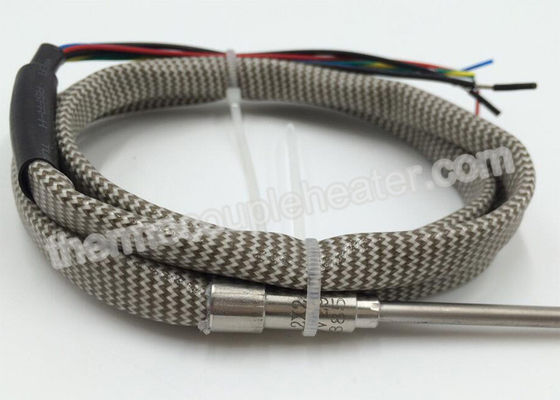

2.2x4.2mm Spring Hot Runner Coil Heaters coil heater elements

2.2x4.2mm Spring Hot Runner Coil Heaters coil heater elements

    • 2.2x4.2mm Spring Hot Runner Coil Heaters coil heater elements
    • 2.2x4.2mm Spring Hot Runner Coil Heaters coil heater elements
    • 2.2x4.2mm Spring Hot Runner Coil Heaters coil heater elements
  • 2.2x4.2mm Spring Hot Runner Coil Heaters coil heater elements

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: CE & ISO
    Model Number: -

    Payment & Shipping Terms:

    Minimum Order Quantity: 10 pieces
    Price: negotiation
    Packaging Details: Export Carton Box
    Delivery Time: 7-15 working days
    Payment Terms: L/C, D/P, T/T, Western Union, Paypal
    Supply Ability: 20,000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Coil And Cable Heater Thermocouple: Type J, K
    Application: Injection Mold Hot Runner Material: Stainless Steel 304, 316
    Moisture Proof: IP 65 Insulated Material: Comressed MgO
    Warranty: 1 Year Lead Wire Length: 1000 Mm Or Customized
    High Light:

    Electric Coil Heaters

    ,

    coil heater with thermocouple

    2.2x4.2mm Spring Hot Runner Coil Heaters





    1. Coil Heater Brief Introduction



    Hot runner heater is an advance concept of thermal engineering which has a construction similar to high watt density cartridge heaters.

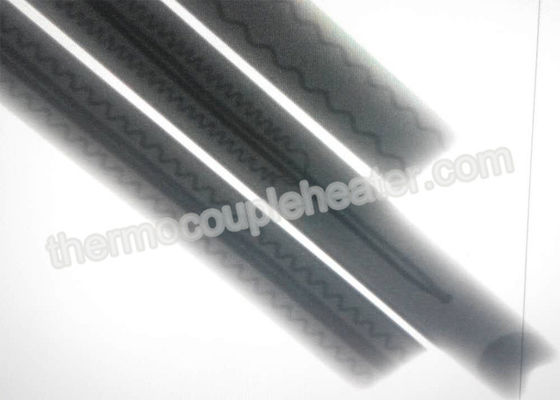

    These heaters are also known as high performance tubular heaters or cable heaters. The basic construction of these heaters consist of compacted MgO, high temperature resistance wire and Chrome Nickel Steel tube.



    These heaters can be constructed with or without built in thermocouples. They are usually installed where space available for heating is limited and are widely used on hot runner nozzles, and manifolds, die cast nozzles, packaging machines etc.



    2. Coil Heater Characteristics



    • Standard sizes available with various cross section
    • Various Watt Density option available
    • Designed for even heat profile
    • Precision fit on Hot Runner Nozzles
    • Highly Non-corrosive
    • Choice of Terminal Exits
    • Advanced Thermal Engineering
    • Available with in built Thermocouple



    3. Coil Heater Parameter.

    2.2x4.2mm Spring Hot Runner Coil Heaters coil heater elements

    •

    Spring coil heater (H series)

    3.0x3.0
    3.3x3.3
    4.0x2.0
    4.2x2.2
    4.5x2.7

    Φ3.0

    Φ4.0

    Φ5.0

    3.5x3.5
    4.0x4.0

    5.0x5.0

    Voltage

    220V,230V,240V

    Power tolerance 115W-200W

    +/-10%

    Power tolerance  201W-2000W

    +5%-10%

    Out jacket length

    30mm~280mm

    Diameter of the inner sleeve/wrapped diameter

    10mm~42mm

    Unheating length

    45mm

    Max power density

    9W/cm²

    Heating Length tolerance

    +/-0.05mm

    Unheating length tolerance

    +/-2.5%

    Tolerance ID d ≤20mm

    Without inner sleeve:-0.15mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d 20mm~30mm

    Without inner sleeve:-0.20mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance ID d ≥30mm

    Without inner sleeve:-0.25mm
    With inner sleeve:0.05mm~0.10mm

    Tolerance cross section

    +/-0.15mm

    +/-0.20mm

    Thermocouple

    K,J,E

    None

    Material

    304,321,316

    Maximum working temperature

    650℃

    Die electrical strength

    800V

    1000V



    4. Spring Coil Heater Application



    This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical

    equipment, casting process,other electric heating industry, etc..
