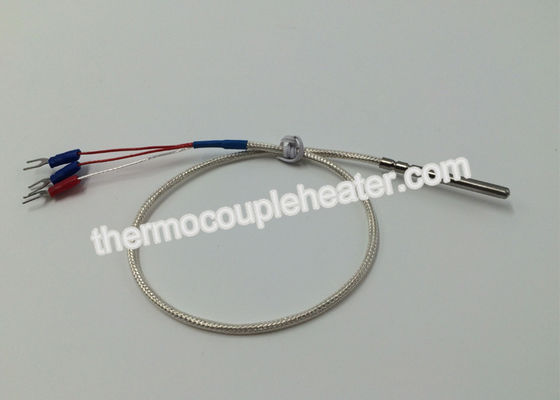

Industrial General Purpose Thermocouple with Transition Joint

General Purpose Thermocouple with Transition Joint

A thermocouple is a temperature-measuring device consisting of two dissimilar conductors that contact each other at one or more spots. It produces a voltage when the temperature of one of the spots differs from the reference temperature at other parts of the circuit. Thermocouples are a widely used type of temperature sensorfor measurement and control,and can also convert a temperature gradient into electricity. Commercial thermocouples are inexpensive,interchangeable, are supplied with standard connectors, and can measure a wide range of temperatures. In contrast to most other methods of temperature measurement, thermocouples are self powered and require no external form of excitation.

Specification:

• TYPE OF THERMOCOUPLE: Chromel Alumel (K), Iron Constantan (J), Copper Constantan (T)
• SHEATH MATERIAL: SS 304, SS 316
• SHEATH O.D.: 5 mm,6 mm, 8 mm, 10 mm, Other sizes available on request
• THERMOCOUPLE LENGTH: Standard 4”, 6”, 12”, 18”, 24”, Other lengths available on request
• EXTENTION WIRES: FG/FG/SS, FG/FG, /
• COMPRESSION FITTING: ¼”, 3/8”, ½”, ¾” BSP & NPT

Pictures

Application:

For food temperature measurement;

Also for liquid and gel temperature measurement;

Entire probe covered with metal coating protection;
