Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | - |
| Minimum Order Quantity: | 10 pieces |
|---|---|
| Price: | negotiation |
| Packaging Details: | Export Carton Box |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/P, T/T, Western Union, Paypal |
| Supply Ability: | 20,000pcs per month |
| Product Name: | Coil And Cable Heater | Thermocouple: | Type J, K |
|---|---|---|---|
| Application: | Injection Mold Hot Runner | Material: | Stainless Steel 304, 316 |
| Moisture Proof: | IP 65 | Insulated Material: | Comressed MgO |
| Warranty: | 1 Year | Lead Wire Length: | 1000 Mm Or Customized |
| Highlight: | electric resistance heater,Electric Coil Heaters |
||

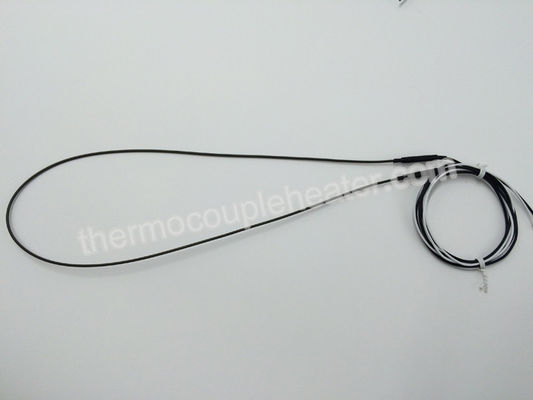

Diameter 1.8mm 230V 250w Straight Hot Runner Cable Heater
1. Coil Heater Brief Introduction
Hot runner heater’s production length in 200-3000mm is mainly used for hot runner mold or, as well as other precision heating system. Spring heating ring external using high quality Ni-Cr steel tube, the internal use of high purity magnesium oxide , high temperature resistance wire, and first-class manufacturing technology . The wire is after the annealed, with flexibility can be bent into an arc or circle heating. Its high working temperature, fast heating, uniform heating precision, long service life, can be automatically controlled area, high thermal conduction, while internal heating material damage, external can reuse.
2. Coil Heater Characteristics
3. Coil Heater Parameter.
|
Spring coil heater (H series) |
3.0x3.0 |
Φ3.0 |
Φ4.0 |
Φ5.0 |
3.5x3.5 |
5.0x5.0 |
|
Voltage |
220V,230V,240V |
|||||
|
Power tolerance 115W-200W |
+/-10% |
|||||
|
Power tolerance 201W-2000W |
+5%-10% |
|||||
|
Out jacket length |
30mm~280mm |
|||||
|
Diameter of the inner sleeve/wrapped diameter |
10mm~42mm |
|||||
|
Unheating length |
45mm |
|||||
|
Max power density |
9W/cm² |
|||||
|
Heating Length tolerance |
+/-0.05mm |
|||||
|
Unheating length tolerance |
+/-2.5% |
|||||
|
Tolerance ID d ≤20mm |
Without inner sleeve:-0.15mm |
|||||
|
Tolerance ID d 20mm~30mm |
Without inner sleeve:-0.20mm |
|||||
|
Tolerance ID d ≥30mm |
Without inner sleeve:-0.25mm |
|||||
|
Tolerance cross section |
+/-0.15mm |
+/-0.20mm |
||||
|
Thermocouple |
K,J,E |
None |
||||
|
Material |
304,321,316 |
|||||
|
Maximum working temperature |
650℃ |
|||||
|
Die electrical strength |
800V |
1000V |
||||
4. Spring Coil Heater Application
This Heating Coil is widely applied for hot runner system, plastic industry, packaging machinery, medical
equipment, casting process,other electric heating industry, etc..
