Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | CE & ISO |
| Model Number: | - |
| Minimum Order Quantity: | 20 pieces |
|---|---|
| Price: | negotiateable |
| Packaging Details: | Exported Case Packing |
| Delivery Time: | 7-15 working days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 20,000pcs per month |
| Voltage: | 220V | Power(W): | 1000w |
|---|---|---|---|
| Graduation: | J Or K Type | USAGE: | Hot Runner Coil Heater |
| Material: | Stainless Steel 304 | Cross Section: | 4.2 X 2.2 Mm, 3 X 3 Mm, 4 X 2 Mm. Etc. |
| COIL HEATER TEMPERATURE: | 900 Degree C | ||
| Highlight: | electric resistance heater,coil heater with thermocouple |
||

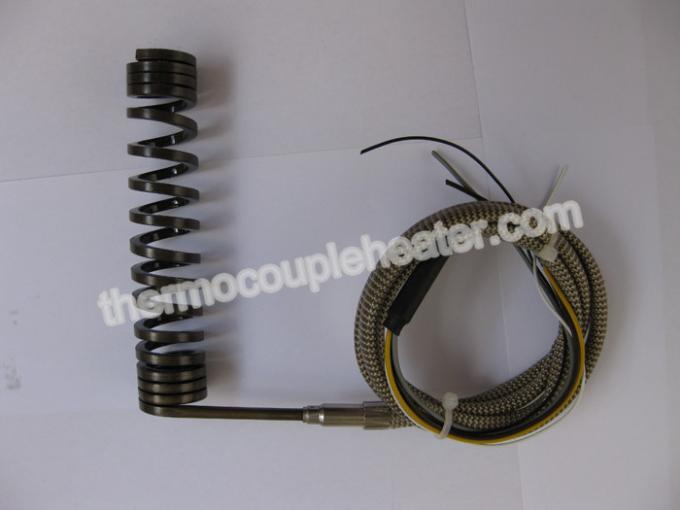

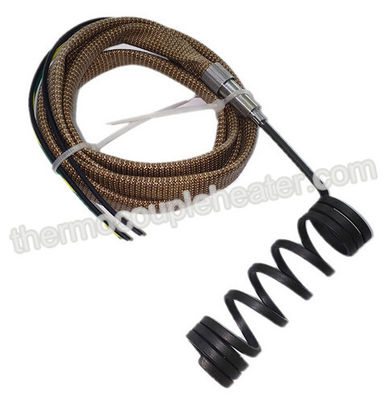

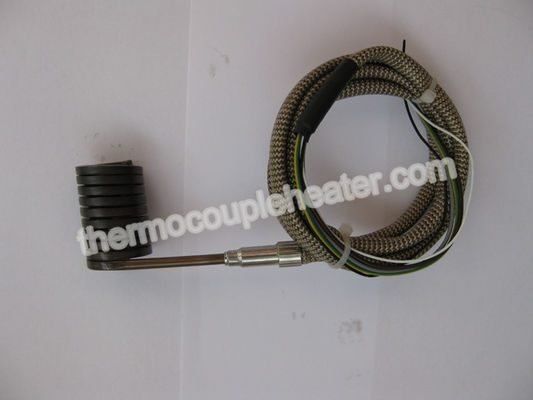

Mini Coil Heater With Thermocouple Type J or K stainless steel shell 1m fiberglass lead wire
specification:
Inner Diameter: 9mm
Height:26mm
Section Size: 4*2.2mm
Wire Length: 1000mm
with thermocouple type K
Fiberglass Sleeve
Description of Coil Heater:
1) Spring coil heater is made of nickel chrome resistance wire placed inside chrome nickel steel tube that is filled with MgO powder.
2) Spring coil heater is also known as high performance tubular heaters or cable heaters.
3) Spring heater can be produced with or without built in thermocouples.
4) Spring coil heater is widely used in heating engineering, mold, plastic industry, including the transfer machinery, medical equipment, casting process, welding, heat treatment process and many other industries and fields
Coil Heater Technical parameter:
1) Customized voltage and power
2) Various sizes of cross section, including 1.8, 2*4, 2.2*4.2, 3.0, 3*3, 3.5*3.5, 4*6 and other specifications.
3) High watt density 25w/sq.cm, low watt density 5w/sq.cm.
4) Temperature: 650 degree
5) Materials: stainless steel
6) Thermocouple type J/K/E can be attached.
7) High temperature lead wire
How to order 12V 70W Mini Coil Heater With Thermocouple Type J or K
1. voltage and power
2. Inner dimeter
3. coil height
4. thermocouple type if have
5. lead wire length and insulation material
6. qty
Pictures:
