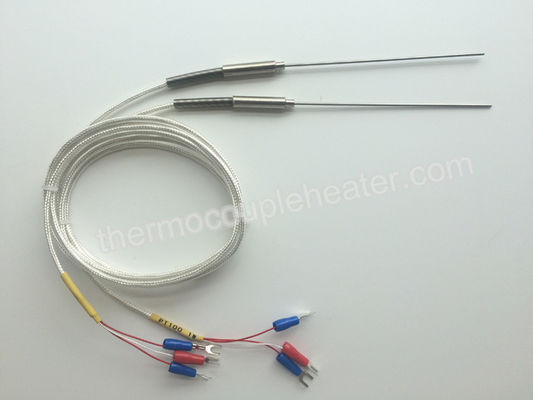

Ultra Fine 1.5mm Diameter Pt100 Stainless Steel Temperature Sensor With Probe
 |
Product Details:
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001 |
| Model Number: | GME-1.5mm pt-100 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Packaging Details: | Standard Export Packing |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000pcs/month |
Detailed Product Description
| Diameter Of Probe: | 1.5mm | Material: | Stainless Steel 304 |
|---|---|---|---|
| Accuracy: | Class1 | Usage: | Industrial |
| Type: | PT-100 | TYPEWire Material: | Fiberglass Shielding Wire |
| Probe Length: | 100mm | ||
| Highlight: | temperature sensor rtd,temperature sensor rtd pt100 |
||
Ultra fine 1.5mm diameter pt100 stainless steel temperature sensor with probe
Specification:
| type | pt100 |
| temperature range | 0-400℃ |
| probe diameter | 1.5mm |
| probe length | 100mm |
| probe material | SS304 |
| wire length | 1000mm |
| wire material | fiberglass shielding wire |
Pictures
temperature sensor PT100
| Code | Mark | Use temperature |
Protection tube materials |
Class of accuracy and allowable error |
|
GME |
PT100 |
-200~500°C |
304 321 316L |
Grade A: +/- (0.15+0.002%|t|) |
|
Grade B: +/- (0.3+0.005%|t|) |
|
Pt thermal |
Graduation mark | ±(°C)Et value on various temperature spots | R100/R0 | ||||||||||
| -200 | -100 | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 650 | ||||
| Pt RTD | Grada | Pt10 0 | 0.55 | 0.35 | 0.15 | 0.35 | 0.55 | 0.75 | 0.95 | 1.15 | 1.35 | 1.45 | 1.3850±0.0005 |
| A | Pt10 | ||||||||||||
| Grada | Pt100 | 1.3 | 0.8 | 0.3 | 0.8 | 1.3 | 1.8 | 2.3 | 2.8 | 3.3 | 3.6 | 1.3850±0.0012 | |
| B | Pt10 | ||||||||||||
| Cu RTD | Cu50 | 1.5 | 0.9 | 0.3 | 0.9 | 1.5 | 2.1 | ———— | ———— | —— | ———— | 1.428±0.002 | |
| Cu100 | |||||||||||||
| Sensor Type | RTD Pt100 element |
| PPCK: RTD Pt1000 element | |
| Probe Diameter | 1mm-6mm |
| Detector Elements | Simplex (1 channel) |
| Duplex (2 channels) | |
| Probe Length (mm) | As required to suit your application |
| Wiring Configuration | 2-wire |
| 3-wire | |
| 4-wire (Simplex only) | |
| Grade of Element | B (Accuracy: ±0.30°C at 0°C, ±0.80°C at 100°C) |
| A (Accuracy: ±0.15°C at 0°C, ±0.35°C at 100°C) | |
| Cable Length (mm) | As required to suit your application |
| Extension Cable | PVC Insulated (+105°C), 2, 3, 4-wire |
| PFA Insulated (+250°C), 2, 3, 4, 6-wire | |
| Fibreglass/SSB (+400°C), 2, 3, 4-wire | |
| Optional RTD Connector | Miniature RTD Plug |
| Miniature 3-Pin RTD Plug | |
| Standard RTD Plug | |
| Standard 3-Pin RTD Plug | |
| Optional 316 Stainless Steel Compression Fittings | To suit probe Ø: 1mm, 1.5mm, 2mm, 3.0mm, 4.0mm, 4.5mm, 6.0mm |
Application:
For food temperature measurement;
Also for liquid and gel temperature measurement;
Entire probe covered with metal coating protection;
