Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
 |
| Place of Origin: | China |
| Brand Name: | GME |
| Certification: | ISO9001,CE/UL |
| Minimum Order Quantity: | 1 pieces |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton or wooden crate or as per your request |
| Delivery Time: | 5-10 working days |
| Payment Terms: | L/C,T/T, PAYPAL |
| Supply Ability: | 10000pcs per month |
| Product Name: | Axial Clamp Mini Coil Heater Without Thermocouple On The Nozzle 240V / 268W | Application: | Plastic Injection Mold |
|---|---|---|---|
| Voltage: | 240V | Wattage: | 268W |
| Width: | 1.2" | Inner Diameter: | 0.75" |
| Heating Elements Cross Section: | 1.8x1.8mm, 1.8x3.2mm | Leads: | 48" |
| Highlight: | electric resistance heater,coil heater with thermocouple |
||
Description

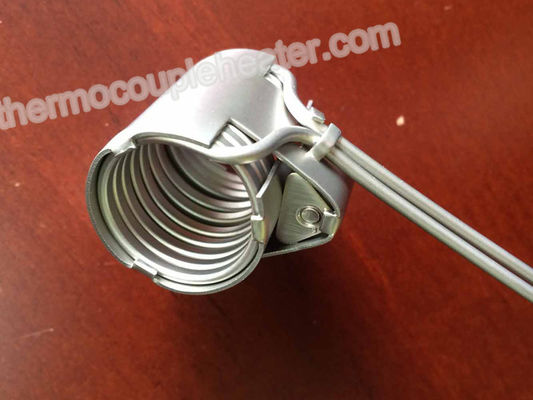

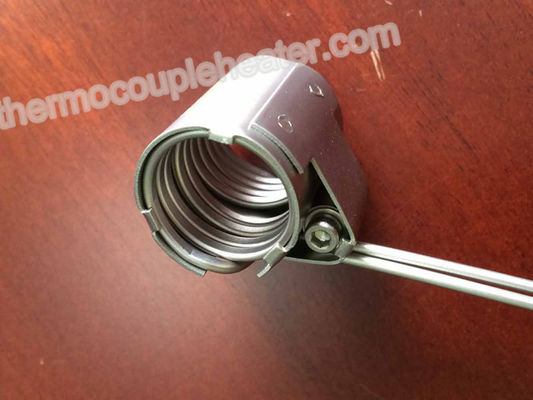

Axial clamp mini coil heaters are a proven performer for high cavitation applications including pre-forms, caps and closures, and razors. GME axial clamp heaters positively lock on the nozzle ensuring excellent heat transfer and durability. Adjustments can be made with a single front facing allen screw, greatly simplifying tightening and removal. With flat mini coils in direct contact with the injection molding nozzle GME axial clamp heaters can be wound with more heater coils closer to the edge. This configuration improves responsiveness and heat profile.
| Standard Axial Lock-up Heaters | |||
| Diameter | Width | Watts | Volts |
| “3/4” “(19.05mm)” | “1.2” “(30mm)” | 149W | 240V |
| “3/4” “(19.05mm)” | “1.2” “(30mm)” | 268W | 240V |
| “7/8” “(22.22mm)” | “1.2” “(30mm)” | 268W | 240V |
Technical Specifications
1. Heater Sheath: CrNi Steel
2. High Voltage Stability: 800VAC
3. Insulation Resistance: >= 5M ohm at 500 VDC (Cold)
4. Leakage Current: <= 0.5 mA at 250VAC (Cold)
5. Wattage Tolerance: +/- 2%, +/- 4%, or +/-10%
6. Maximum Voltage: 250V
7. Standard Connection: 72” to 500 deg. F
Features
1. Positive locking positioning
2. Single allen screw adjustment for tightening and removal
3. Mini coils in direct contact with nozzle
4. Replaceable external thermocouple
5. Profiled for more heat at the Tip
6. Caps and Closure Applications
7. Close matching of Ohms so that multiple axial clamp heaters can be controlled with a single thermocouple
8. Also used in Plastic molding for the cosmetic industry
Application,
1. Injection Molding
2. Automotive
3. Packaging
