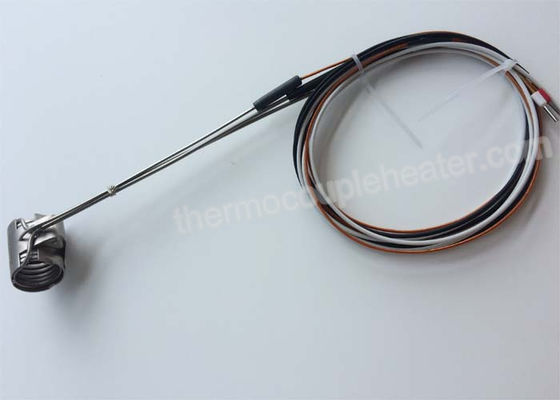

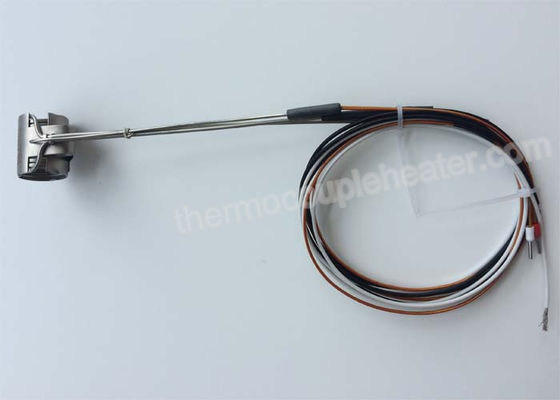

Axial Clamp Mini Coil Heaters With Thermocouple On The Nozzle 240V / 268W

Axial Clamp Mini Coil Heaters With Thermocouple On The Nozzle 240V / 268W

    • Axial Clamp Mini Coil Heaters With Thermocouple On The Nozzle 240V / 268W
    • Axial Clamp Mini Coil Heaters With Thermocouple On The Nozzle 240V / 268W
    • Axial Clamp Mini Coil Heaters With Thermocouple On The Nozzle 240V / 268W
    • Axial Clamp Mini Coil Heaters With Thermocouple On The Nozzle 240V / 268W
  • Axial Clamp Mini Coil Heaters With Thermocouple On The Nozzle 240V / 268W

    Product Details:

    Place of Origin: China
    Brand Name: GME
    Certification: ISO9001,CE/UL

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 piece
    Price: Negotiable
    Packaging Details: Carton or wooden crate or as per your request
    Delivery Time: 5~10 working days after received your payment
    Payment Terms: T/T or L/C or Paypal
    Supply Ability: 10000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: Axial Clamp Mini Coil Heater With Thermocouple On The Nozzle 240V / 268W Application: Plastic Injection Molding
    Voltage: 240V Wattage: 268W
    Inner Diameter: 3/4" Width: 1.2"
    Heating Elements Cross Section: 1.8x1.8mm, 1.8x3.2mm Leads: 48" Leads
    High Light:

    electric resistance heater

    ,

    Electric Coil Heaters

    Axial Clamp Mini Coil Heater With Thermocouple On The Nozzle 240V / 268W





    Description

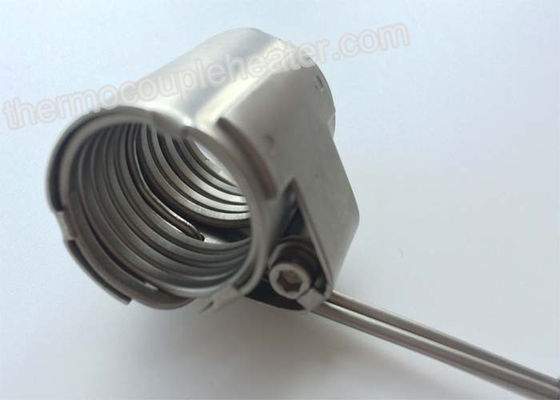

    Axial clamp mini coil heaters are a proven performer for high cavitation applications including pre-forms, caps and closures, and razors. GME axial clamp heaters positively lock on the nozzle ensuring excellent heat transfer and durability. Adjustments can be made with a single front facing allen screw, greatly simplifying tightening and removal.



    With flat mini coils in direct contact with the injection molding nozzle GME axial clamp heaters can be wound with more heater coils closer to the edge. This configuration improves responsiveness and heat profile.



    Standard Axial Lock-up Heaters
    Diameter Width Watts Volts
    “3/4” “(19.05mm)” “1.2” “(30mm)” 149W 240V
    “3/4” “(19.05mm)” “1.2” “(30mm)” 268W 240V
    “7/8” “(22.22mm)” “1.2” “(30mm)” 268W 240V





    Technical Specifications



    Heater Sheath: CrNi Steel

    High Voltage Stability: 800VAC

    Insulation Resistance: >= 5M ohm at 500 VDC (Cold)

    Leakage Current: <= 0.5 mA at 250VAC (Cold)

    Wattage Tolerance: +/- 2%, +/- 4%, or +/-10%

    Maximum Voltage: 250V

    Standard Connection: 72” to 500 deg. F



    Feature



    Positive locking positioning

    Single allen screw adjustment for tightening and removal

    Mini coils in direct contact with nozzle

    Replaceable external thermocouple

    Profiled for more heat at the Tip

    Caps and Closure Applications

    Close matching of Ohms so that multiple axial clamp heaters can be controlled with a single thermocouple

    Also used in Plastic molding for the cosmetic industry



    Application



    1. Injection Molding

    2. Packaging

    3. Automotive
