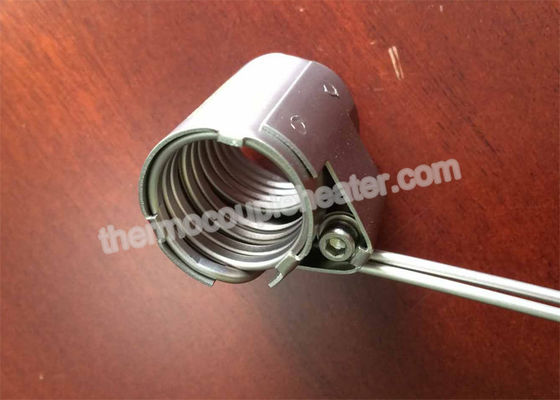

Industrial Injection Mold Micro Tubular Heaters with J Thermocouple

Injection Mold Micro Tubular Heaters with J Thermocouple

1. Brief Introduction

Micro Tubular Coil Heaters are made of nickel chrome resistance wire placed inside chrome nickel steel tube filled with MgO powder and compacted for faster and efficient heat transfer. The hot runner heaters are annealed to acquire malleability for bending into any shape. Injection molding coil heaters with thermocouple are also available.

2. Characteristics

•  Standard sizes available with various cross section
• Various Watt Density options available.
•  Robust Design with Choice of Terminal Exits
•  Designed for even heat profile
• Precision fit on Hot Runner Nozzles & Manifolds
• Highly Non-corrosive
• Maximum heat transfer due to more contact area
• Advanced Thermal Engineering
• CE Certified
• Available with built in Thermocouple

3.  Application

• For heating the nozzles of Injection Molding Machines.
• Thin Walled Container Moulds.
• Hot Runner Nozzles & Bushings.
• PET Preformed Moulds.
• Packaging industry.
• Welding bars.
• Rolls' heating.
• Disks' heating.
• Plates' heating.

4.  Electric Resistance Heater Parameter.

Standard Configuration

Material :304

Unheated length(L1):45mm

Connector(cold side)(D1xU): Ф3.5x40mm

Power lines,grounding wire length(L):1000mm

Surface treatment:sandblasting;

• Voltage : Upto 250V
• Watt Density : Max. 15 W/sq. cm or 100 W/sq. inch
• Section : 3.3 , 4 , 3 x 3 , 4 x 4 , 2.2 x 4.2 , 4 x 6 , 4.6 x 8.6
• Surface Temp. : Max. 750° C / 1380° F
• Thermocouple : Available with inbuilt J or K type
• High Voltage Test (Cold) : 800V (AC)
• Insulation Resistance (Cold) : ≥ 5MΩ
• Leakage current (Cold) : ≤ 0.5mA for 250V AC
• Diameter Tolerance : ± 0.15mm
• Length Tolerance : ± 5%
• Wattage Tolerance : ± 10%
