High Temperature J / K Type Thermocouple Probe For Hot Runner Heater

Home ProductsThermocouple RTD

High Temperature J / K Type Thermocouple Probe For Hot Runner Heater

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

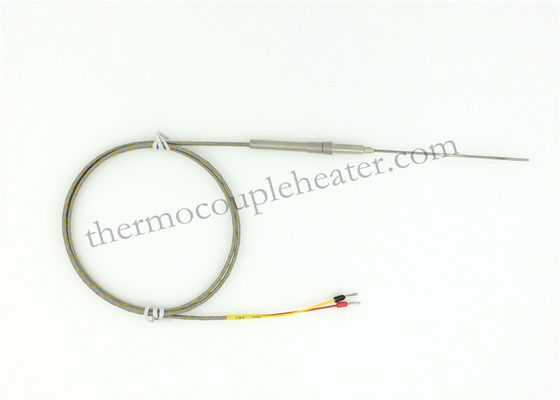

High Temperature J / K Type Thermocouple Probe For Hot Runner Heater

China High Temperature J / K Type Thermocouple Probe For Hot Runner Heater supplier
High Temperature J / K Type Thermocouple Probe For Hot Runner Heater supplier High Temperature J / K Type Thermocouple Probe For Hot Runner Heater supplier

Large Image :  High Temperature J / K Type Thermocouple Probe For Hot Runner Heater

Product Details:

Place of Origin: China
Certification: ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: K Or J Type Hot Runner Heater Thermocouple Probe Application: Temperature Sensor For Plastic Industry
Calibration: Type K, J Accuracy: Class I
Max.temperature: 500F Or 260C Sheath Material: 304SS ,316SS,Inconel 600
High Light:

temperature sensor rtd

,

temperature sensor rtd pt100

K Or J Type Hot Runner Heater Thermocouple Probe ​



Product  Description:


The hot runner thermocouples are designed to suit all applications where metal sheathed thermocouples are required. A complete array of elements, transitions and process connections can be individually selected for different application. With the flexibility and small diameters in which they are available, the hot runner thermocouples can be used in locations that are not easily accessible. The unique design of the Hot Runner temperature sensors are especially ideal for applications where the metal sensor tip is fitted directly into a drilled hole or press fitted into a grooved channel along the machined parts.

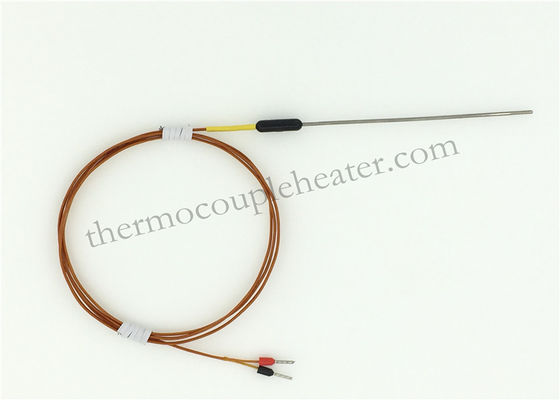

High Temperature J / K Type Thermocouple Probe For Hot Runner Heater



Specification:





Probe Outside Diameter

0.5mm, 1.0mm, 1.5mm

Calibration

Standard limits of error (Type K,J,T,E,N)

Special limits or error (Type K,J,T,E,N)



Sheath Material

304 Stainless Steel

316 Stainless Steel

Inconel 600



Junction

Ungrounded , Grounded



Cable Insulation Description

24 Gage, Stranded , Kapton

24 Gage, Solid, Kapton

24 Gage, Stranded,

24 Gage,Solid,

24 Gage,Stranded, Fiberglass

24 Gage, Solid ,Fiberglass

Termination type

50mm split leads and 15mm Bare Ends.

50mm split leads and spade lugs.

Standard Male Plug (425F)

Standard Female Jack(425F)

Mini Male Plug(425F)

Mini Female Jack(425F)

Hi Temp Male Plug(800F)

Hi Temp Female Jack(800F)





Feature:


1. Simple assembly and easy to change;
2. Reed thermal components, good seismic performance;
3. High precision measurement;
4. Large measuring range (200 °C ~ 1300 °C, 270 °C ~ 2800 °C under special circumstances ).
5. Fast heat response time;
6. High mechanical strength and good compression performance;
7. High temperature can reach 2800 degrees;
8. Long service life.

Application:


The Hot Runner Thermocouple has been designed to be used in below area,
1. Hot Runner bushings, drops and nozzles
2. Hot Runner manifolds
3. Plastics and rubber industry
4. Moulds used in injection molding machines
5. For direct installation in the process
