K Type Mineral Insulated Bayonet Thermocouple RTD Customized Diameter

Home ProductsThermocouple RTD

K Type Mineral Insulated Bayonet Thermocouple RTD Customized Diameter

Send Me The Latest Product Alerts
(No SPAM - We would not sell or share your e-mail address.)

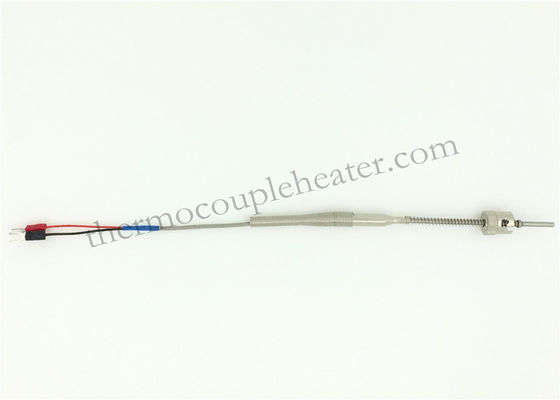

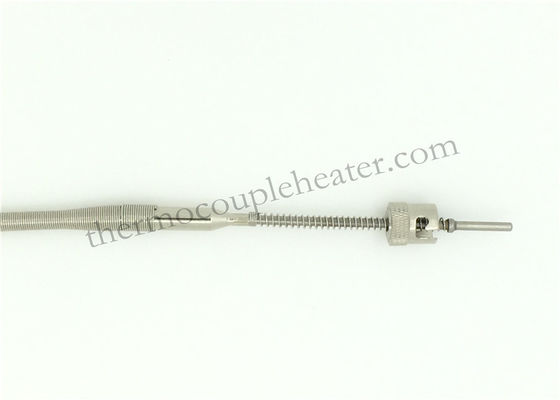

K Type Mineral Insulated Bayonet Thermocouple RTD Customized Diameter

China K Type Mineral Insulated Bayonet Thermocouple RTD Customized Diameter supplier
K Type Mineral Insulated Bayonet Thermocouple RTD Customized Diameter supplier K Type Mineral Insulated Bayonet Thermocouple RTD Customized Diameter supplier

Large Image :  K Type Mineral Insulated Bayonet Thermocouple RTD Customized Diameter

Product Details:

Place of Origin: China
Certification: ISO9001/CE

Payment & Shipping Terms:

Minimum Order Quantity: 10pcs
Price: Negotiable
Packaging Details: Carton or as per your request
Delivery Time: 7~20 working days
Payment Terms: L/C, T/T,PAYPAL
Supply Ability: 100000 pcs per Month
Verified Supplier

China

  • Product Details
Detailed Product Description
Product Name: K Type Mineral Insulated Bayonet Thermocouple Application: Temperature Sensor For Plastic And Rubber Industry
Calibration: Type K Accuracy: Class I
Max.temperature: 900F Or 500C Probe Material: 304SS ,316SS
High Light:

resistance temperature detecto

,

temperature sensor rtd pt100

K Type Mineral Insulated Bayonet Thermocouple

Product  Description:

A thermocouple consists of two conductors of different materials (usually metal alloys) that produce a voltage in the vicinity of the point where the two conductors are in contact. The voltage produced is dependent on, but not necessarily proportional to, the difference of temperature of the junction to other parts of those conductors. Thermocouples are a widely used type of temperature sensor for measurement and control and can also be used to convert a temperature gradient into electricity.

Specification:


Product

Conductor material

Type

Graduation

Use temperature (°C)
(short time)

Use temperature (°C) (Continuous
operation)


Thermocouple

PtRh30-Ptrh6

WRR

B

0-1800°C

0-1600°C

PtRh10-Pt

WRP

S

0-1600°C

0-1300°C

PtRh13-pT

WRB

R

0-1600°C

0-1300°C

NiCrSi-NiSi

WRM

N

0-1000°C

0-1000°C

NiCr-NiAl(Si)

WRN

K

0-1200°C

0-900°C

NrCr-constantan

WRE

E

0-700°C

0-600°C

Iron- Constantan

WRF

J

0-600°C

0-500°C

Copper-Constantan

WRC

T

0-400°C

0-350°C


Features :

1. Customized diameter, sheath lengths and lead length
2. Stainless steel braided or hose protection
3. K, J, T and E calibrations
4. Grounded, ungrounded and exposed junctions
5. Flat and drill point
6. Epoxy sealed cold ends
7. Flexible extensions
8. Miner coated and stainless steel sheaths
9. Straight, 45° bend or 90° bend
10. 12 mm and 15 mm locking bayonet caps

Performance Capabilities of mineral insulated bayonet thermocouple:

Maximum Temperature Tolerance of thermocouple with glass fiber insulation: 600 cent degree for non-stop working.
Maximum Temperature Tolerance of thermocouple with mineral fiber insulation: 1500 cent degree non-stop working.
Temperature test precision: +/-1 cent degree

Applications :

1. Food processing equipment
2. De-icing
3. Plating baths
4. Industrial processing
5. Medical equipment
6. Pipe tracing control
7. Industrial heat treating
8. Packaging equipment
9. Liquid temperature measurement
10. Refrigerator temperature control
11. Oven temperature control
