Wuhan Global Metal Engineering Co., Ltd
The pioneer manufacturer of heaters & sensors
Place of Origin: | China |
Certification: | ISO9001/ CE |
Minimum Order Quantity: | 10pcs |
---|---|
Price: | Negotiable |
Packaging Details: | Carton or as per your request |
Delivery Time: | 7~20 working days |
Payment Terms: | L/C, T/T,PAYPAL |
Supply Ability: | 100000 pcs per Month |
Product Name: | Pt100 / Pt1000 Sensor RTD Adjustable Depth With Bayonet | Application: | Temperature Sensor For Industry |
---|---|---|---|
Max.temperature: | -200 To 250°C | Probe Material: | 316SS |
Highlight: | temperature sensor rtd,temperature sensor rtd pt100 |

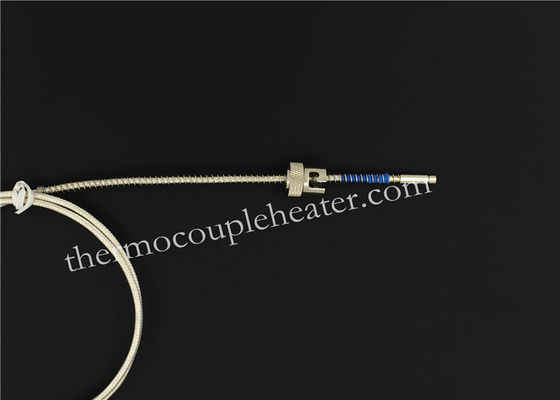

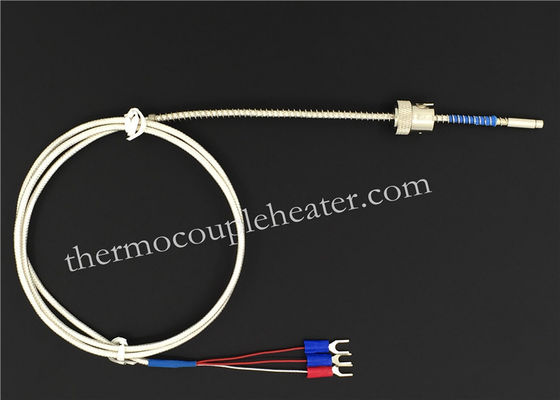

Pt100 / Pt1000 Sensor RTD Adjustable Depth With Bayonet
Product Description:
Resistance temperature detectors (RTD) accurately sense temperature with an excellent degree of repeatability and interchangeability of elements. The RTD is composed of certain metallic elements whose change in resistance is a function of temperature. In operation, a small excitation current is passed across the element, and the voltage, which is proportional to resistance, is then measured and converted to units of temperature calibration. The RTD element is manufactured by winding a wire (wire wound elements) or plating a film (thin film elements) on a ceramic or glass core and sealing the element within a ceramic or glass capsule.
Since most RTDs have a low initial resistance, often 100 ohms, and have a small change in resistance per unit of temperature range, the resistance of the lead wire is often compensated for with a three or four wire bridge configuration built into the measuring devices. By selecting the proper elements and protective sheathing, RTDs can operate in a temperature range of (-200 to 650) °C [-328 to 1202] °F.
Specification:
RTD Element Type |
1xPt100 2xPt100 1xPt1000 2xPt1000 |
RTD wire connection |
2 wire configuration 3 wire configuration 4 wire configuration
|
Wire Description |
24 Gage Stranded Stainless Steel Braid Flexible Armor Cable 24 Gage Stranded Fiberglass Cable 24 Gage Stranded Cable |
Termination type |
3" split leads and 1/2" Bare Ends. 3" split leads and spade lugs. Standard Male Plug (2 & 3 wire configuration only) Standard Female Jack(2 & 3 wire configuration only) Mini Male Plug(2 & 3 wire configuration only) Mini Female Jack(2 & 3 wire configuration only) |
Type |
Graduation |
Measuring Range°C |
Accuracy |
Tolerance |
WZP |
Pt100 |
-200~+500 |
Class A |
±(0.15+0.002) |t| |
|
pt1000 |
|
Class B |
±(0.30+0.005) |t| |
Feature:
1. With short thermal response time, reducing dynamic error;
2. Wide measuring range(-200~+450degree celsius);
3. Good mechanical performance, pressure-resistant, shock-resistant, impact-resistant.
Application:
RTDs are temperature sensors contain a resistor that changes resistance value as its temperature changes. They have been used for measuring temperature in laboratory and industrial processes, and have a good reputation for accuracy, repeatability, and stability.
